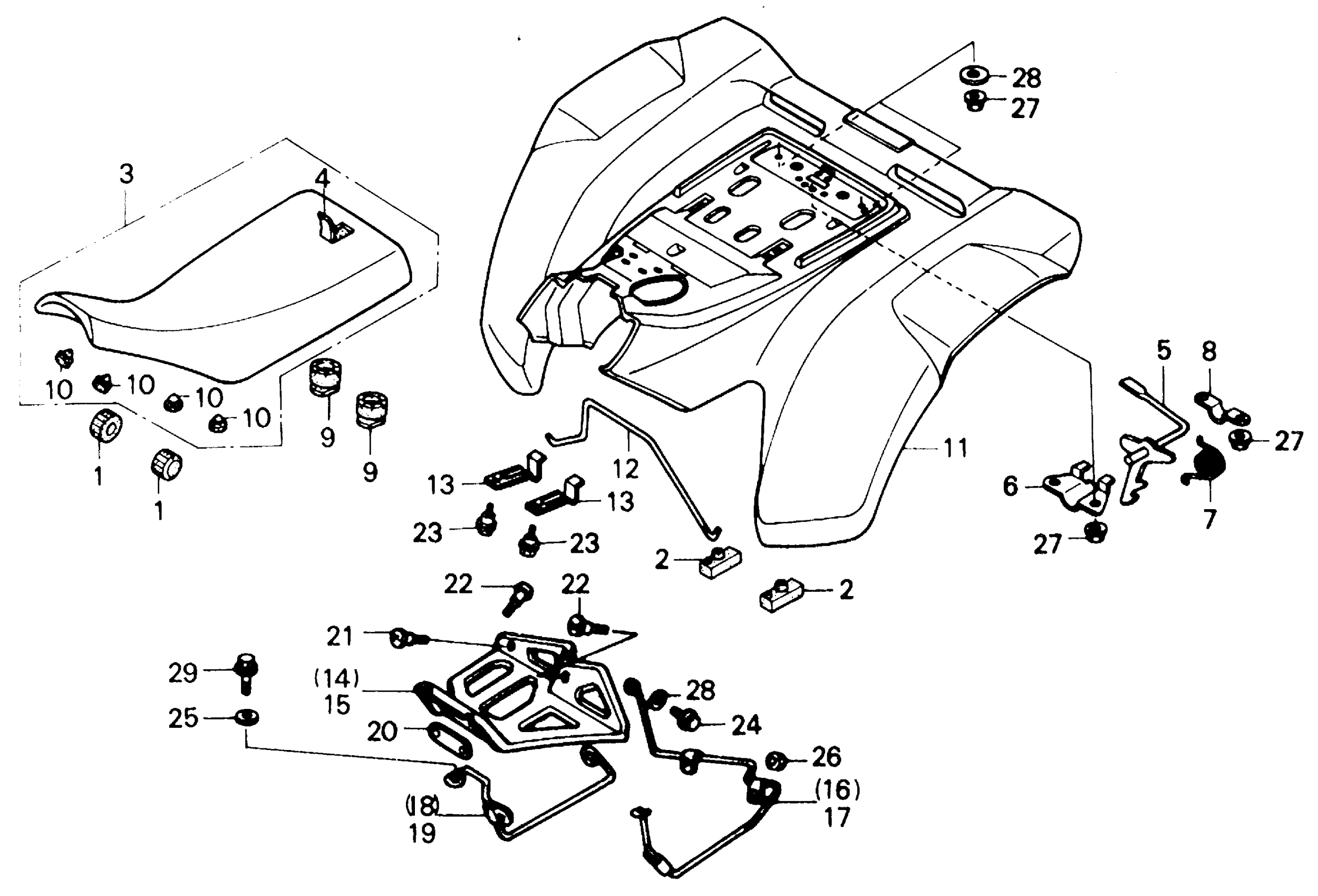

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 REAR FENDER 89 Diagram

#

Description
Price

1

RUBBER, FR. FUEL TANK

17611-HA5-000

$4.84

2

RUBBER, RR. FENDER SETTING

50815-HA2-670

$15.68

3

SEAT COMP *NH1L* (BLACK)

77100-HB9-P00ZA

Unavailable

3

SEAT COMP *NH1L* (BLACK) | Use up to Frame SN KK304072 This part replaces 77100-HB9-740ZA.

77100-HB9-P00ZA

Unavailable

3

SEAT COMP *NH1L* (BLACK) This part replaces 77100-HB9-741ZA.

77100-HB9-P00ZA

Unavailable

3

SEAT COMP *NH1L* (BLACK) This part replaces 77100-HB9-771ZA.

77100-HB9-P00ZA

Unavailable

4

COVER, SEAT *R94L* (STRIKING RED) (NOT AVAILABLE)

77101-HB9-770ZA

Unavailable

5

LEVER, SEAT LOCK

77105-HC0-000

$22.95

6

BRACKET, LOCK LEVER

77106-HC0-000

Unavailable

7

SPRING, SEAT LOCK

77107-HA7-670

Unavailable

8

BRACKET, RR. LOCK LEVER

77108-HC0-000

Unavailable

9

RUBBER, SEAT SETTING

77207-HA0-000

$6.64

10

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.70

11

FENDER, RR. *NH138* (SHASTA WHITE)

80100-HB9-306ZB

Unavailable

11

FENDER, RR. *NH138* (SHASTA WHITE) This part replaces 80100-HB9-770ZB.

80100-HB9-306ZB

Unavailable

12

STAY, FENDER SUPPORT

80116-HB9-000

Unavailable

13

BRACKET, FENDER SUPPORT

80117-HB9-770

Unavailable

14

SPLASH GUARD, R. RR. (NOT AVAILABLE)

80121-HB9-741

Unavailable

15

SPLASH GUARD, L. RR. (NOT AVAILABLE)

80122-HB9-741

Unavailable

16

STAY, R. SPLASH GUARD (OUTER) (NOT AVAILABLE)

80123-HB9-741

Unavailable

17

STAY, L. SPLASH GUARD (OUTER) (NOT AVAILABLE)

80124-HB9-741

Unavailable

18

STAY, R. SPLASH GUARD (INNER) (NOT AVAILABLE)

80126-HB9-741

Unavailable

19

STAY, L. SPLASH GUARD (INNER) (NOT AVAILABLE)

80127-HB9-741

Unavailable

20

HOLDER, SPLASH GUARD (NOT AVAILABLE) | Use from Frame SN KK302873

80131-HB9-740

Unavailable

21

SCREW, SPLASH GUARD (6X20)

90103-HB9-740

$3.95

22

SCREW, SPLASH GUARD

90103-HC4-770

$2.03

23

BOLT, FLANGE (6MM)

90110-MG9-700

$4.13

24

BOLT, FLANGE (6X16)

90181-HB9-770

$2.29

25

WASHER, PLAIN (6.5X15)

90401-ZA0-000

$0.99

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM)

94001-06200-0S

$1.19

27

NUT, FLANGE (6MM)

94050-06000

$0.59

28

WASHER, PLAIN (6MM)

94103-06000

$0.90

29

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
