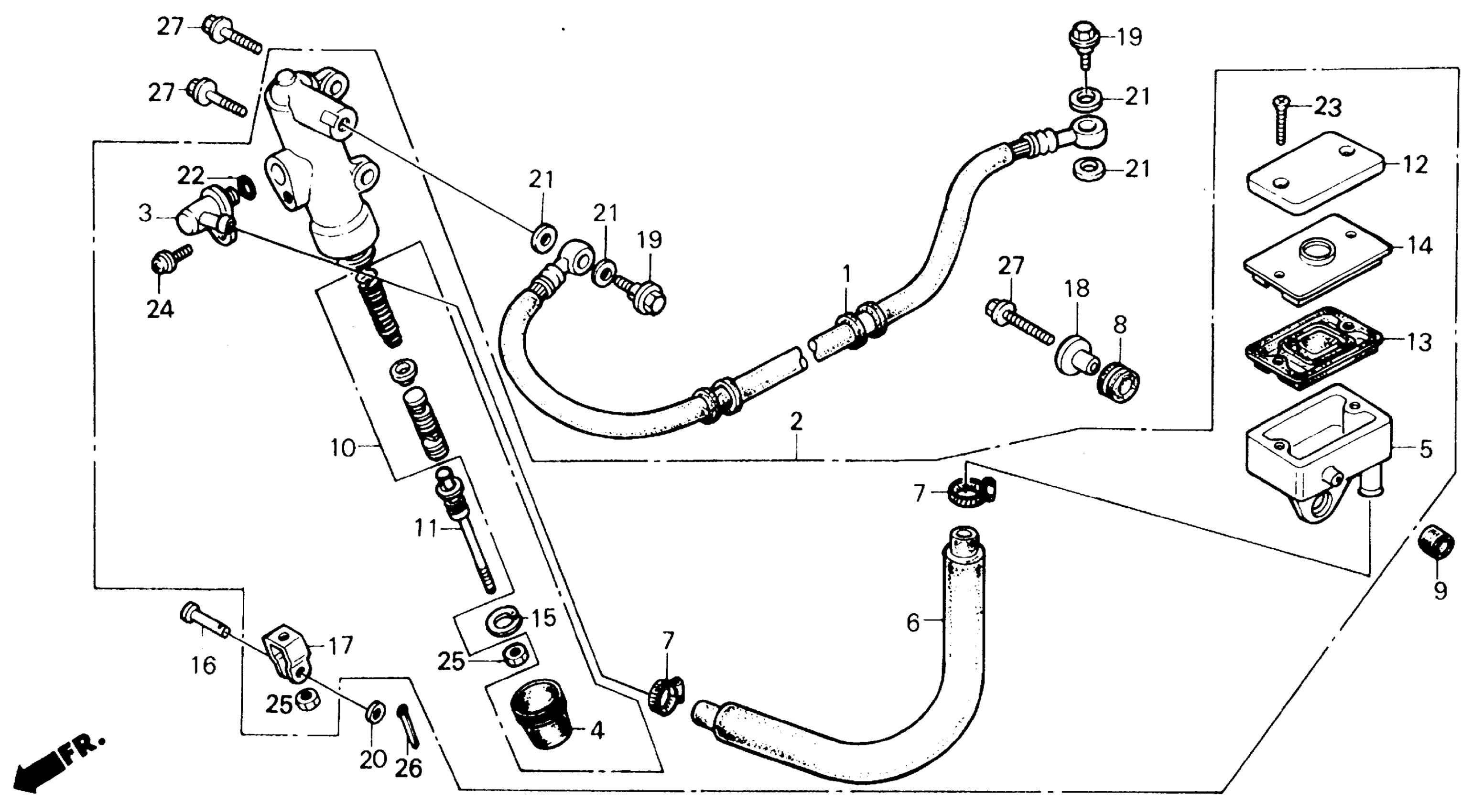

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 REAR BRAKE MASTER CYLINDER Diagram

HOSE ASSY., RR. BRAKE (NICHIRIN) (NOT AVAILABLE)

43310-HB9-771

Unavailable

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN) (ALT P/N 43510-HB9-P00 DOESN'T INCLUDE 5,6,7,12,13,14,23) (NA USE ALT:43510-HB9-P00)

43500-HB9-771

Unavailable

CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)

43503-HB9-006

Unavailable

BOOT

43504-MB2-006

$10.04

CUP, OIL

43511-HA2-016

$37.16

HOSE, RR. BRAKE MASTER CYLINDER

43512-HB9-000

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-964-006

$17.93

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

RUBBER, OIL CUP (NOT AVAILABLE)

43517-HB9-000

Unavailable

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$46.51

ROD, PUSH (NOT AVAILABLE)

43530-HB9-006

Unavailable

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

PIN, BRAKE ROD

46503-371-000

Unavailable

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

COLLAR (6.3X13)

50324-425-010

$5.05

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

WASHER (7X12)

90501-310-000

$1.74

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X30)

93600-04030-1A

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

BOLT, FLANGE (6X22)

96300-06022-00

$1.49

BOLT, FLANGE (6X22) This part replaces 96400-06022-00.

96300-06022-00

$1.49
