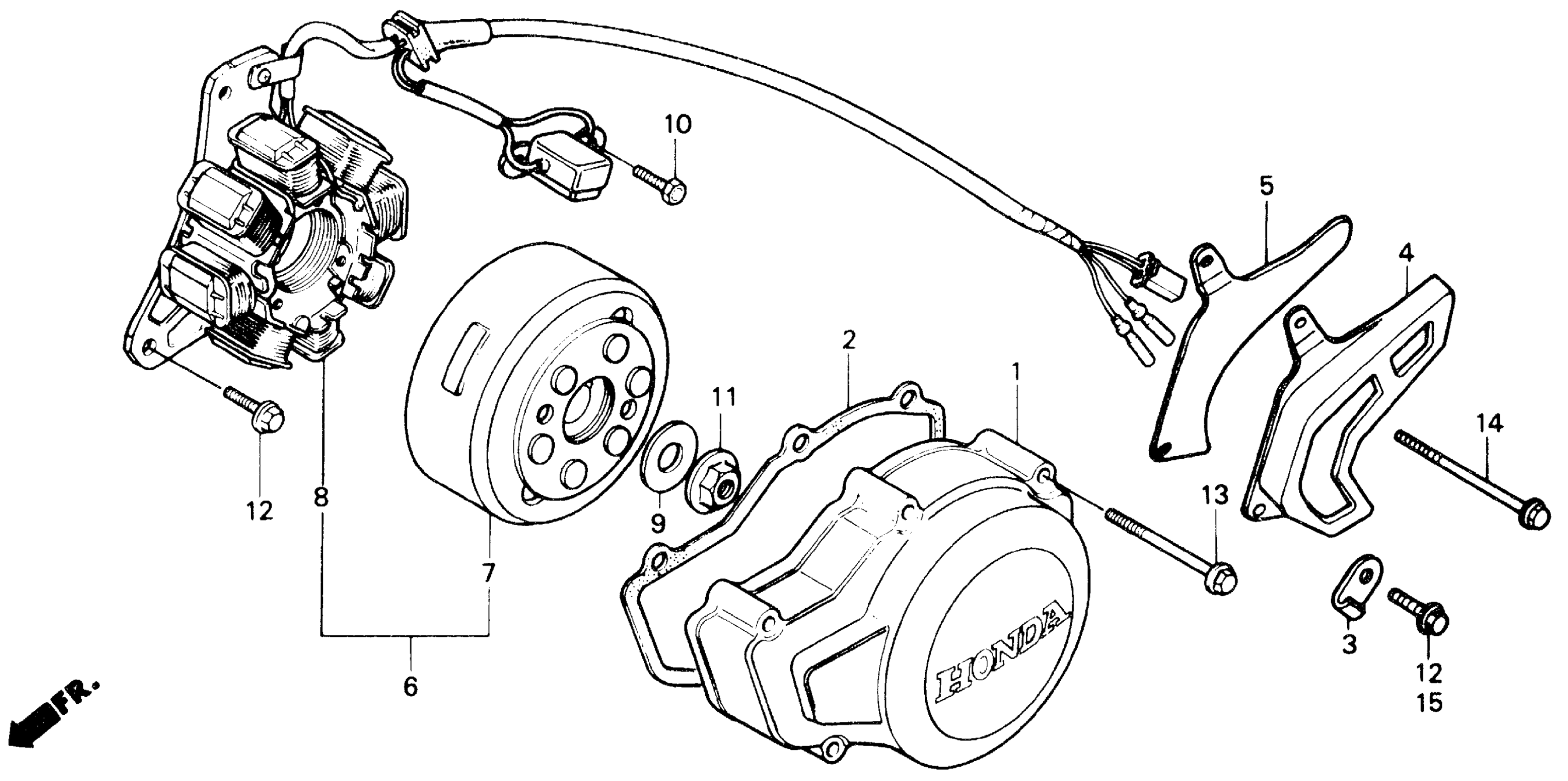

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11351-HA2-000

Unavailable

2

GASKET, L. COVER This part replaces 11352-HA2-000.

11352-HA2-306

$15.95

2

GASKET, L. COVER

11352-HA2-306

$15.95

4

COVER, DRIVE SPROCKET

23810-HA2-000

Unavailable

5

GUIDE, DRIVE CHAIN

23812-HA2-000

Unavailable

6

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE)

31100-HB9-741

Unavailable

7

FLYWHEEL

31110-HB9-771

Unavailable

8

STATOR (DENSO)

31120-HB9-741

Unavailable

9

WASHER, PLAIN (12MM)

90437-611-000

$4.22

10

BOLT, HEX. (5X12)

93301-05012-0A

$1.49

11

NUT, FLANGE (12MM)

94050-12000

$1.49

12

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

13

BOLT, FLANGE (6X45)

96001-06045-07

$2.16

14

BOLT, FLANGE (6X100)

96300-06100-07

Unavailable

15

BOLT, FLANGE (6X16)

96300-06016-07

Unavailable
