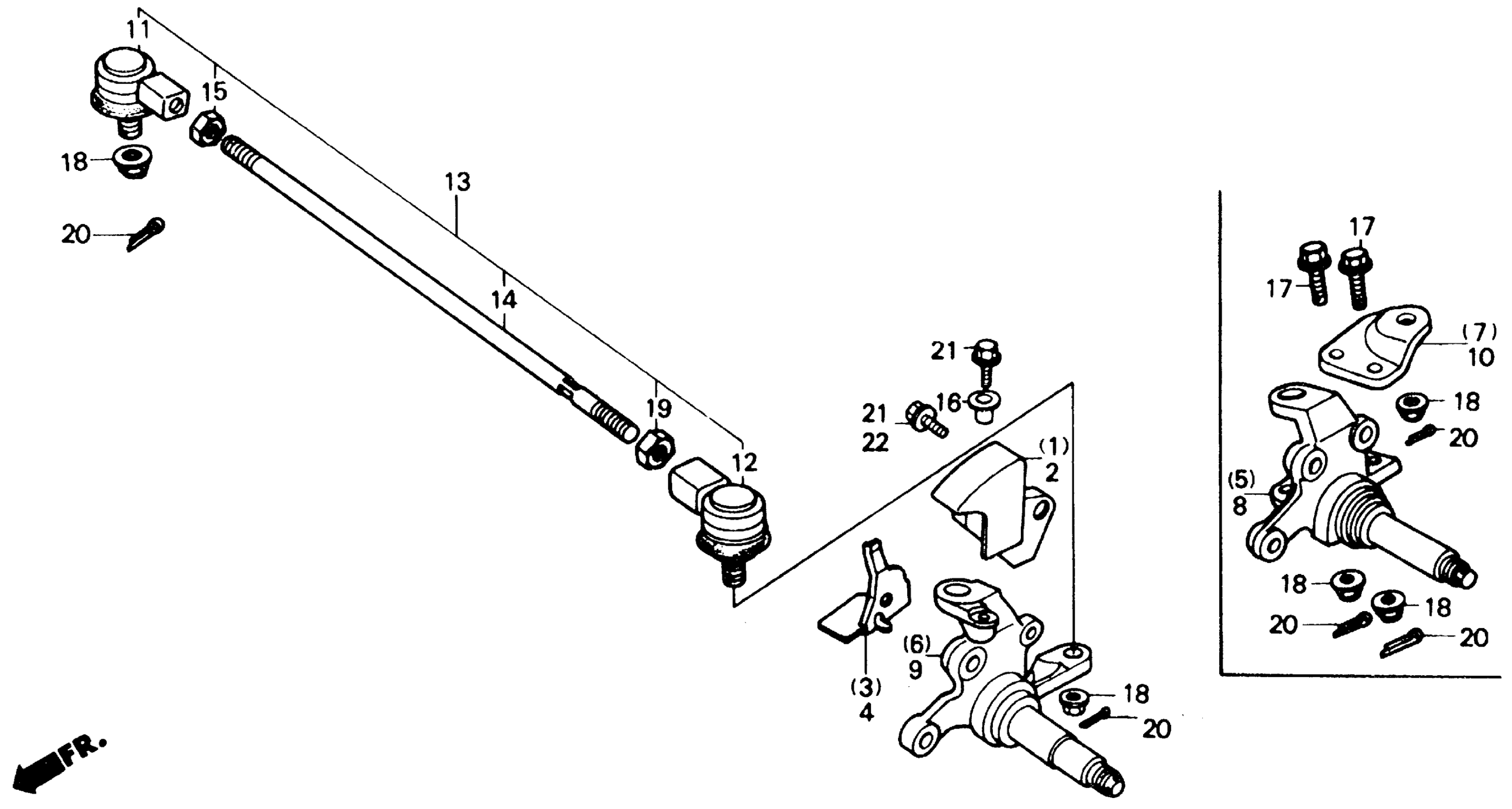

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 KNUCKLE Diagram

#

Description
Price

1

PROTECTOR, R. CALIPER (NOT AVAILABLE)

45252-HB9-770

Unavailable

2

PROTECTOR, L. CALIPER

45262-HB9-770

Unavailable

3

GUARD, R. FR. BRAKE (LOWER) (NOT AVAILABLE)

45462-HB9-000

Unavailable

4

GUARD, L. FR. BRAKE (LOWER) (NOT AVAILABLE)

45463-HB9-000

Unavailable

6

KNUCKLE, R. (NOT AVAILABLE)

51210-HB9-740

Unavailable

9

KNUCKLE, L.

51220-HB9-740

Unavailable

11

END, TIE ROD This part replaces 53157-HB9-003.

53157-HB9-004

Unavailable

12

END, TIE ROD (LEFT HAND THREAD) This part replaces 53158-HB9-003.

53158-HB9-004

Unavailable

13

TIE ROD ASSY.

53510-HB9-003

Unavailable

14

TIE ROD

53521-HB9-003

Unavailable

15

NUT, TIE ROD LOCK

53526-679-000

$3.10

16

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

18

NUT, U (10MM)

90304-GE8-003

$3.67

19

NUT, HEX. (12MM)

94031-12280

$1.49

20

PIN, COTTER (1.6X25) This part replaces 94201-15150.

94201-16250

$1.49

20

PIN, COTTER (1.6X25) This part replaces 94201-15200.

94201-16250

$1.49

20

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

20

PIN, COTTER (1.6X25) This part replaces 94201-16180.

94201-16250

$1.49

20

PIN, COTTER (1.6X25) This part replaces 94201-16200.

94201-16250

$1.49

20

PIN, COTTER (1.6X25)

94201-16250

$1.49

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12) This part replaces 95801-06012-00.

95701-06012-00

$1.62
