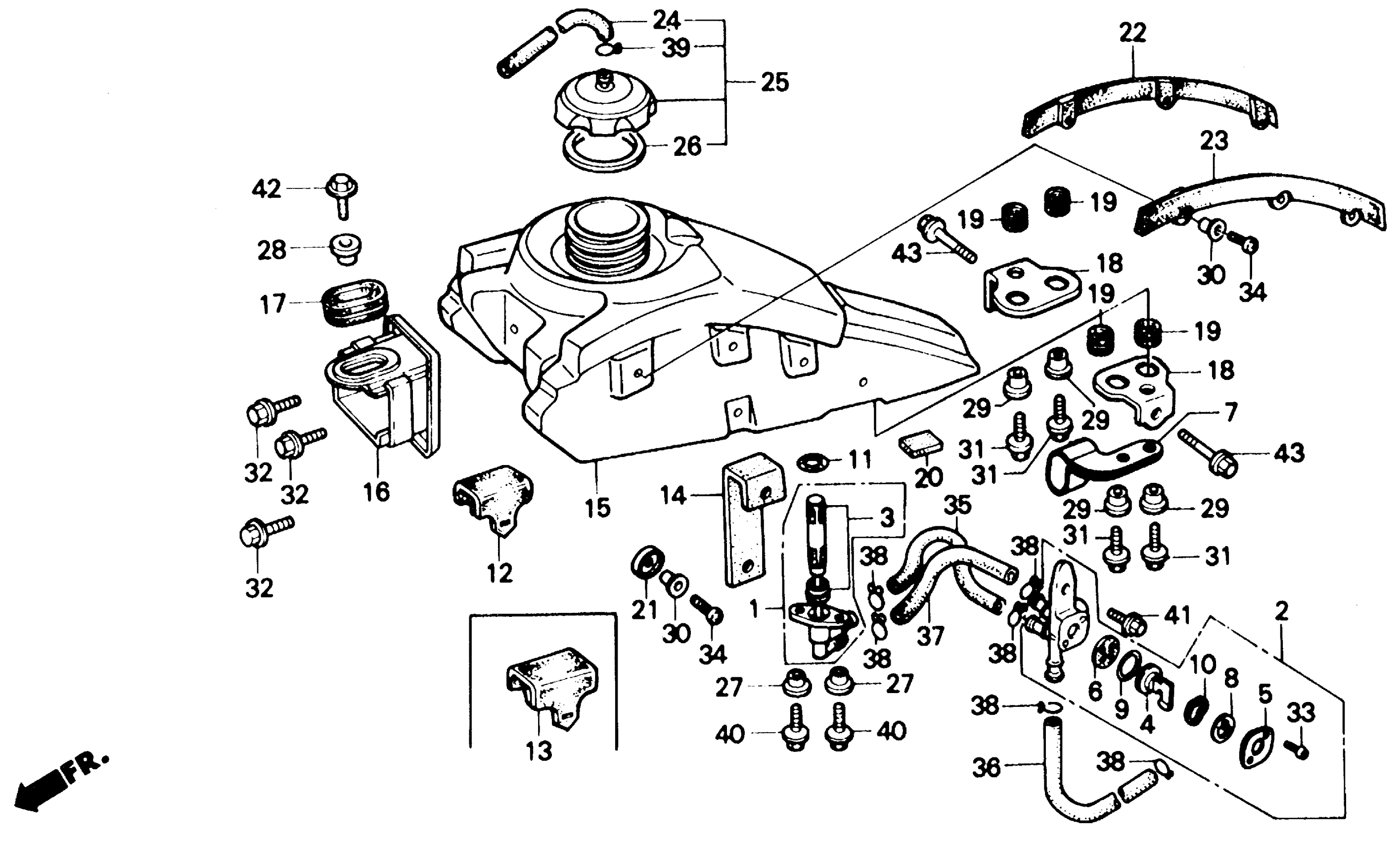

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 FUEL TANK Diagram

#

Description
Price

1

FILTER ASSY., FUEL

16900-HB9-000

$54.99

2

PETCOCK ASSY.

16950-HB9-005

$76.62

3

SCREEN, FUEL STRAINER

16952-HB9-005

$10.51

4

LEVER, VALVE

16953-HB9-005

Unavailable

5

PLATE, PETCOCK SETTING

16954-HB9-005

Unavailable

6

GASKET, PETCOCK

16955-HA2-005

$10.12

7

CLIP, FUEL TUBE (NOT AVAILABLE)

16955-HB9-000

Unavailable

8

WASHER, PLAIN

16958-HA2-005

$4.53

9

X-RING

16963-HB9-005

$4.92

10

SPRING, PETCOCK LEVER

16964-467-005

$5.12

11

O-RING (11.8X3.55)

16997-467-000

$2.01

12

RUBBER, R. FR. FUEL TANK SETTING

17505-HB9-000

Unavailable

14

RUBBER, L. FR. FUEL TANK SETTING

17506-HB9-770

Unavailable

15

TANK, FUEL

17510-HB9-P10

Unavailable

15

TANK, FUEL This part replaces 17510-HB9-770ZA.

17510-HB9-P10

Unavailable

16

STAY, FR. TANK SETTING

17525-HB9-670

Unavailable

17

RUBBER, FR. TANK

17512-HB9-000

$7.88

18

STAY, RR. TANK

17513-HB9-670

Unavailable

19

RUBBER, RR. TANK

17514-HB9-000

Unavailable

19

RUBBER, RR. TANK This part replaces 17514-HB9-670.

17514-HB9-000

Unavailable

20

RUBBER, TANK SPACER

17515-HB9-770

Unavailable

24

TUBE, FUEL CAP BREATHER

17521-HB5-670

$8.40

25

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17620-HA2-830

Unavailable

26

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.48

27

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

28

COLLAR, RADIATOR SETTING This part replaces 19052-KA3-730.

19052-KA3-710

$6.44

29

COLLAR, CANISTER MOUNTING

19052-MB4-880

$3.44

31

BOLT, FLANGE (6X18)

90010-HB9-000

$2.12

32

BOLT, FLANGE (6X10)

90011-HB9-000

$2.25

33

SCREW, PAN (4X6)

93500-04006-0H

$0.83

35

BULK HOSE, FUEL (7.5X8000) (7.3X130)

95001-75008-60M

$93.20

36

BULK HOSE, FUEL (7.5X8000) (7.3X150)

95001-75008-60M

$93.20

37

BULK HOSE, FUEL (7.5X8000) (7.3X170)

95001-75008-60M

$93.20

38

CLIP, TUBE (B12)

95002-02120

Unavailable

39

CLIP, TUBE (C9)

95002-50000

$1.14

40

BOLT, FLANGE (6X16)

96300-06016-00

$0.86

41

BOLT, FLANGE (6X16)

96300-06016-00

$0.86

42

BOLT, FLANGE (6X25)

96300-06025-07

$1.72

43

BOLT, FLANGE (8X12)

96300-08012-00

$2.58
