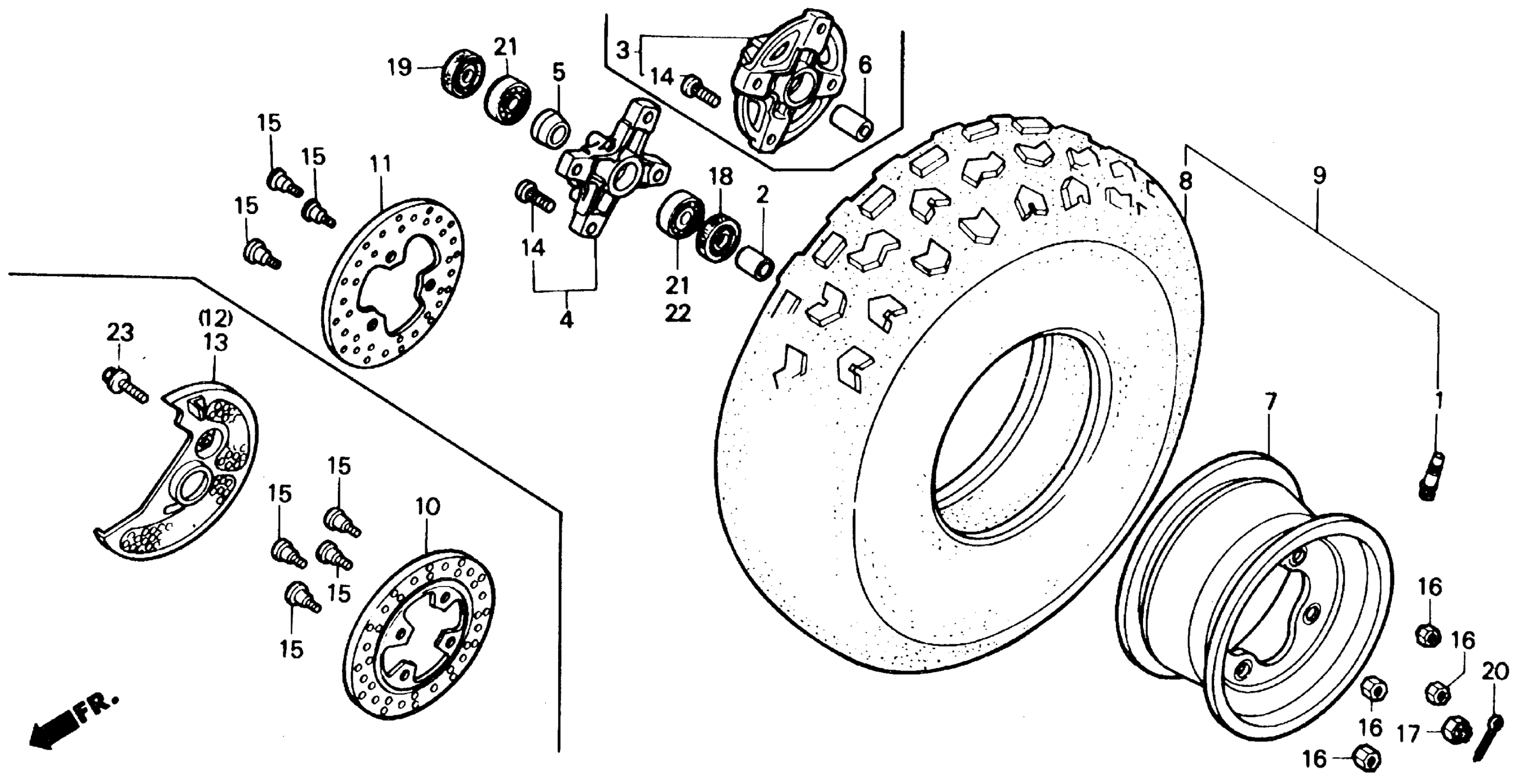

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM

42753-VM0-003

$10.30

2

COLLAR, FR. WHEEL SIDE

44312-HB3-000

$7.39

4

HUB, FR. WHEEL

44610-HB9-770

Unavailable

5

COLLAR, FR. WHEEL DISTANCE

44620-HB9-740

$14.04

7

RIM, FR. WHEEL (10X5.5) (DAIDO) This part replaces 44701-HC0-671.

44701-HC0-672

Unavailable

7

RIM, FR. WHEEL (10X5.5) (DAIDO)

44701-HC0-672

Unavailable

7

RIM, FR. WHEEL (10X5.5) (DAIDO) This part replaces 44701-HC0-771.

44701-HC0-672

Unavailable

9

TIRE, FR. (22X7-10) (OHTSU) This part replaces 44710-HB9-771.

44711-HN1-004

$74.51

9

TIRE, FR. (22X7-10) (OHTSU)

44711-HN1-004

$74.51

11

DISK, FR. BRAKE (SUNSTAR)

45251-HC0-000

Unavailable

14

BOLT, WHEEL (10X36)

90103-HA2-003

$8.57

15

BOLT, DISK (6X20)

90105-HB9-000

Unavailable

16

NUT, WHEEL CLIP

90304-HA2-003

$5.62

17

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

18

DUST SEAL (35X20X7)

91257-HB3-003

$8.80

19

DUST SEAL (28X42X6)

91257-VM0-004

$11.19

20

PIN, COTTER (4.0X30)

94201-40300

$1.49

21

BEARING, RADIAL BALL (6004)

91053-HC4-000

$19.94

21

BEARING, RADIAL BALL (6004) This part replaces 91053-HC4-003.

91053-HC4-000

$19.94

22

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
