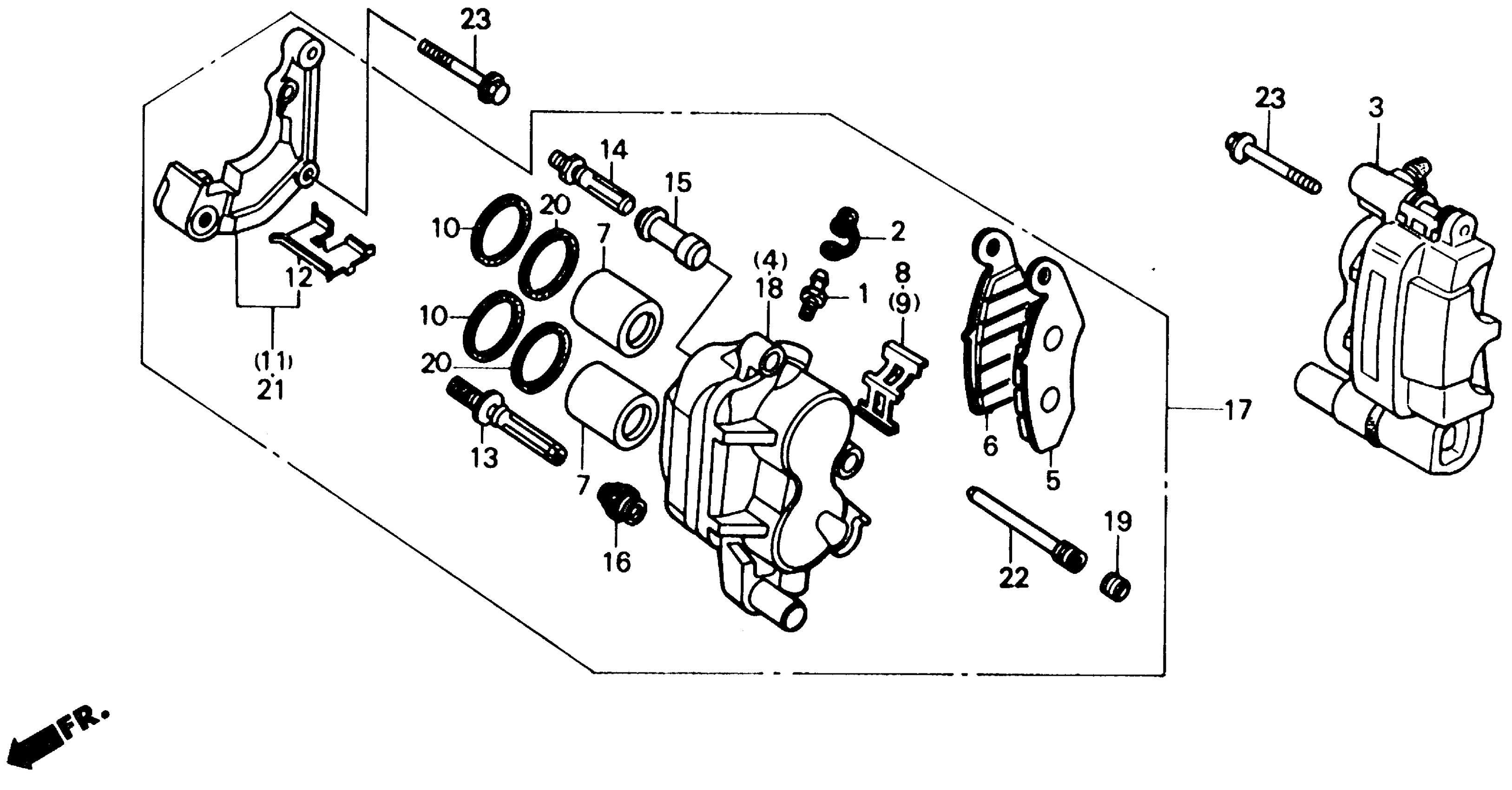

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT

451A0-HB9-670

Unavailable

1

SCREW, BLEEDER

43352-568-003

$9.83

2

CAP, BLEEDER

43353-461-771

$4.83

3

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-HB9-772.

45100-HB9-773

Unavailable

3

CALIPER ASSY., L. FR. (NISSIN)

45100-HB9-773

Unavailable

4

CALIPER, L. FR. (NISSIN) (NOT AVAILABLE)

45101-HB9-771

Unavailable

5

PAD A (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-HA5-672

Unavailable

6

PAD B (SEE KIT P/N--END OF BLOCK)

45106-HA5-672

Unavailable

7

PISTON This part replaces 45107-MG3-006.

45107-MG3-016

$37.90

7

PISTON

45107-MG3-016

$37.90

8

SPRING, PAD This part replaces 45108-HA5-671.

45108-MY1-006

$9.86

8

SPRING, PAD

45108-MY1-006

$9.86

8

SPRING, PAD This part replaces 45108-MY6-671.

45108-MY1-006

$9.86

9

SPRING, PAD

45108-HB9-006

Unavailable

10

DUST SEAL

45109-GE2-006

$5.07

11

BRACKET, L. FR. (NISSIN)

45110-HB9-771

Unavailable

12

RETAINER

45112-HA5-671

$6.01

13

BOLT A, PIN This part replaces 45131-HA5-671.

45131-HA5-672

$14.17

13

BOLT A, BOLT

45131-HA5-672

$14.17

14

PIN, BOLT

45131-166-016

$7.28

15

BUSH, PIN

45132-166-016

$5.21

16

BOOT B

45133-MA3-006

$5.21

17

*45250-HB9-405 This part replaces 45200-HB9-772.

45200-HB9-773

Unavailable

18

CALIPER, R. FR. (NISSIN) (NOT AVAILABLE)

45201-HB9-771

Unavailable

19

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$4.88

19

PLUG, PIN

45203-MG3-016

$4.88

20

SEAL, PISTON

45209-GE2-006

$6.60

21

BRACKET, R. FR. (NISSIN)

45210-HB9-771

Unavailable

22

PIN, HANGER This part replaces 45215-HA5-671.

45215-HA5-672

$9.77

22

PIN, HANGER

45215-HA5-672

$9.77

23

BOLT, FLANGE (8X25)

96300-08025-00

$1.50

23

BOLT, FLANGE (8X25) This part replaces 96400-08025-00.

96300-08025-00

$1.50
