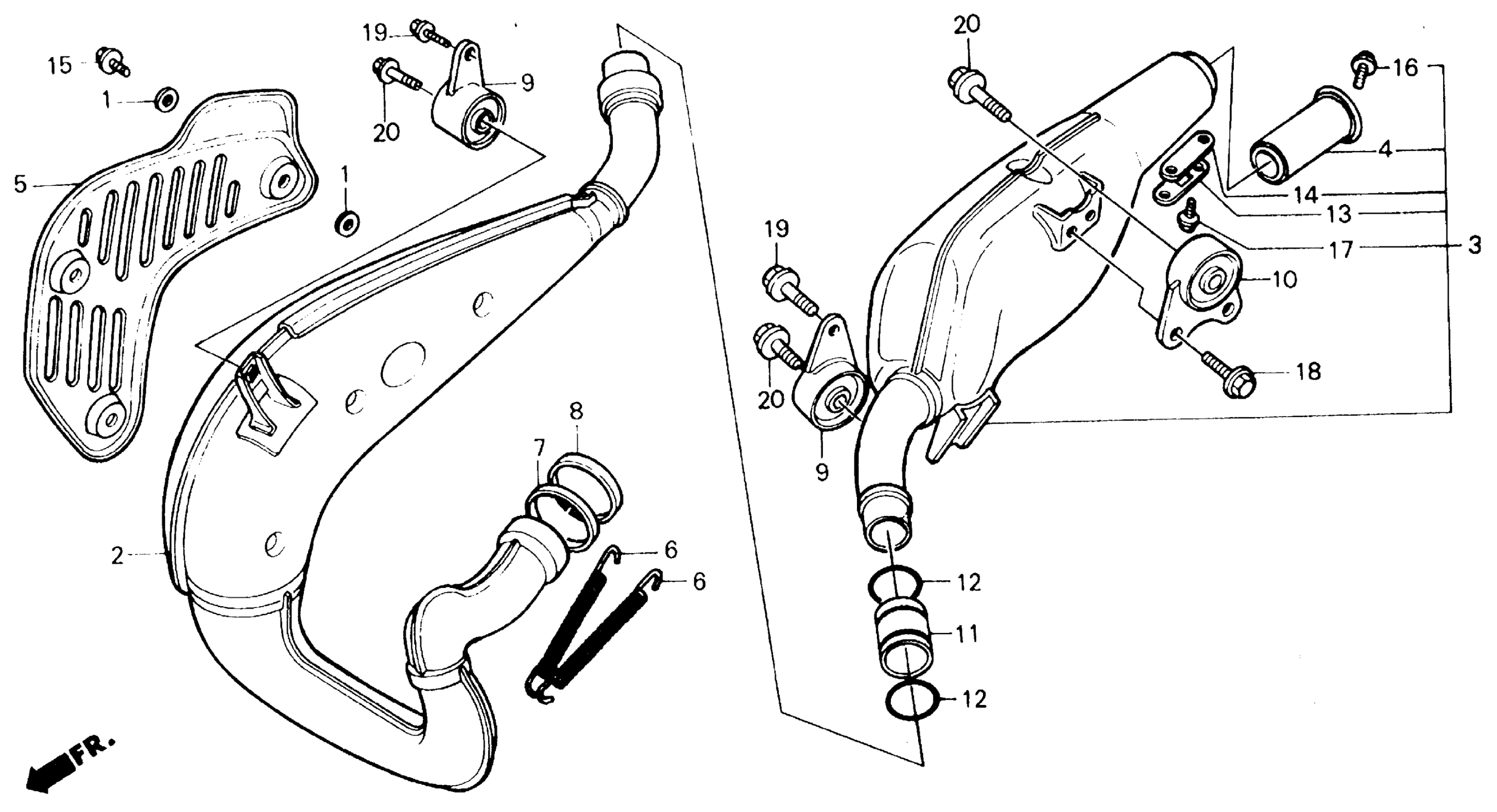

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 EXHAUST MUFFLER Diagram

#

Description
Price

1

GASKET, PROTECTOR

18293-MCA-780

$4.85

1

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

1

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

2

MUFFLER, MAIN (NOT AVAILABLE)

18300-HB9-770

Unavailable

3

MUFFLER, SUB (NOT AVAILABLE)

18310-HB9-770

Unavailable

4

PIPE, TAIL (NOT AVAILABLE)

18311-HA2-770

Unavailable

5

PROTECTOR, MUFFLER (NOT AVAILABLE)

18319-HB9-003

Unavailable

6

SPRING, EX. PIPE

18332-430-700

$13.02

7

GASKET, EX. PIPE This part replaces 18352-HA2-000.

18352-HA2-010

$7.48

7

GASKET, EX. PIPE

18352-HA2-010

$7.48

8

RING, EX.

18358-HA2-000

$14.73

9

STAY ASSY., MUFFLER

18359-961-000

$41.94

10

STAY ASSY., EX. MUFFLER

18359-964-000

Unavailable

11

SEAL, MUFFLER

18361-HA2-000

$18.65

12

BAND, MUFFLER SEAL

18362-KA4-700

$7.16

13

LID, MUFFLER

18373-429-010

$9.15

14

GASKET, MUFFLER LID

18374-MN1-880

$4.21

14

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

15

BOLT, FLANGE (6X8)

96001-06008-07

$1.49

16

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

16

BOLT-WASHER (6X12)

93401-06012-07

$1.62

16

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

17

SCREW-WASHER (6X12)

93893-06012-07

$1.49

18

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

19

BOLT, FLANGE (8X12)

96300-08012-00

$2.84

20

BOLT, FLANGE (8X28)

96300-08028-00

$1.79
