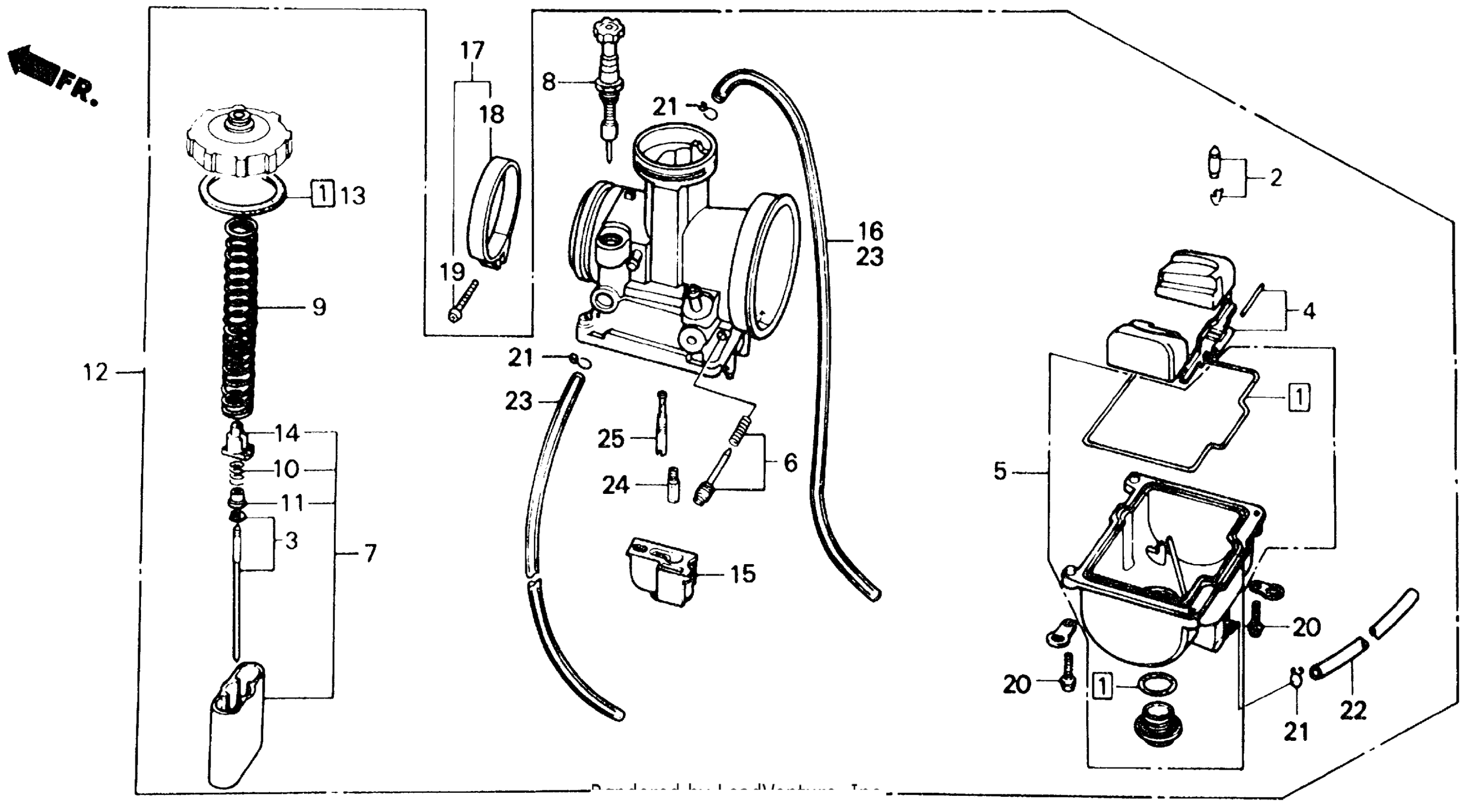

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KA3-004

$48.37

2

VALVE SET, FLOAT

16011-HA2-671

Unavailable

3

NEEDLE SET, JET (R1474JS)

16012-HB9-742

Unavailable

4

FLOAT SET

16013-HA2-671

$50.15

5

CHAMBER SET, FLOAT

16015-VM0-004

Unavailable

6

SCREW SET A

16016-HA2-671

Unavailable

7

VALVE SET, THROTTLE

16022-HB9-671

Unavailable

8

VALVE SET, STARTER

16046-HA2-671

Unavailable

9

SPRING, COMPRESSION COIL

16050-HA2-671

Unavailable

10

SPRING, COMPRESSION COIL

16051-KA3-761

$16.41

11

COLLAR, SPRING SETTING

16066-KA3-761

Unavailable

12

CARBURETOR ASSY. This part replaces 16100-HB9-742.

16100-HB9-306

Unavailable

13

GASKET, TOP

16110-NC8-004

Unavailable

14

HOLDER, CABLE

16137-KA3-761

Unavailable

15

PLATE, BUFFER

16185-KA3-761

Unavailable

16

TUBE, AIR VENT This part replaces 16199-HB9-741.

16199-KBW-405

Unavailable

16

TUBE, AIR VENT

16199-KBW-405

Unavailable

17

BAND, INSULATOR (NOT AVAILABLE)

16223-HB9-770

Unavailable

19

SCREW, PAN (4X20) (NOT AVAILABLE)

90106-HA0-680

Unavailable

20

SCREW-WASHER (4X16)

93892-04016-08

$1.49

21

CLIP, TUBE (B7)

95002-02070

$1.80

22

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X300)

95003-05008-60M

$19.34

23

BULK HOSE, VINYL (4X7X8000) (4X7X270)

95003-07008-60M

$24.47

24

JET, MAIN (#158) JET, MAIN (#172) This part replaces 99101-357-1580.

99113-GHB-1580

$9.44

24

JET, MAIN (#158)

99113-GHB-1580

$9.44

25

JET, SLOW (#45) This part replaces 99103-KA3-0450.

99103-GBF-0450

$14.02

25

JET, SLOW (#45) This part replaces 99103-440-0450.

99103-GBF-0450

$14.02
