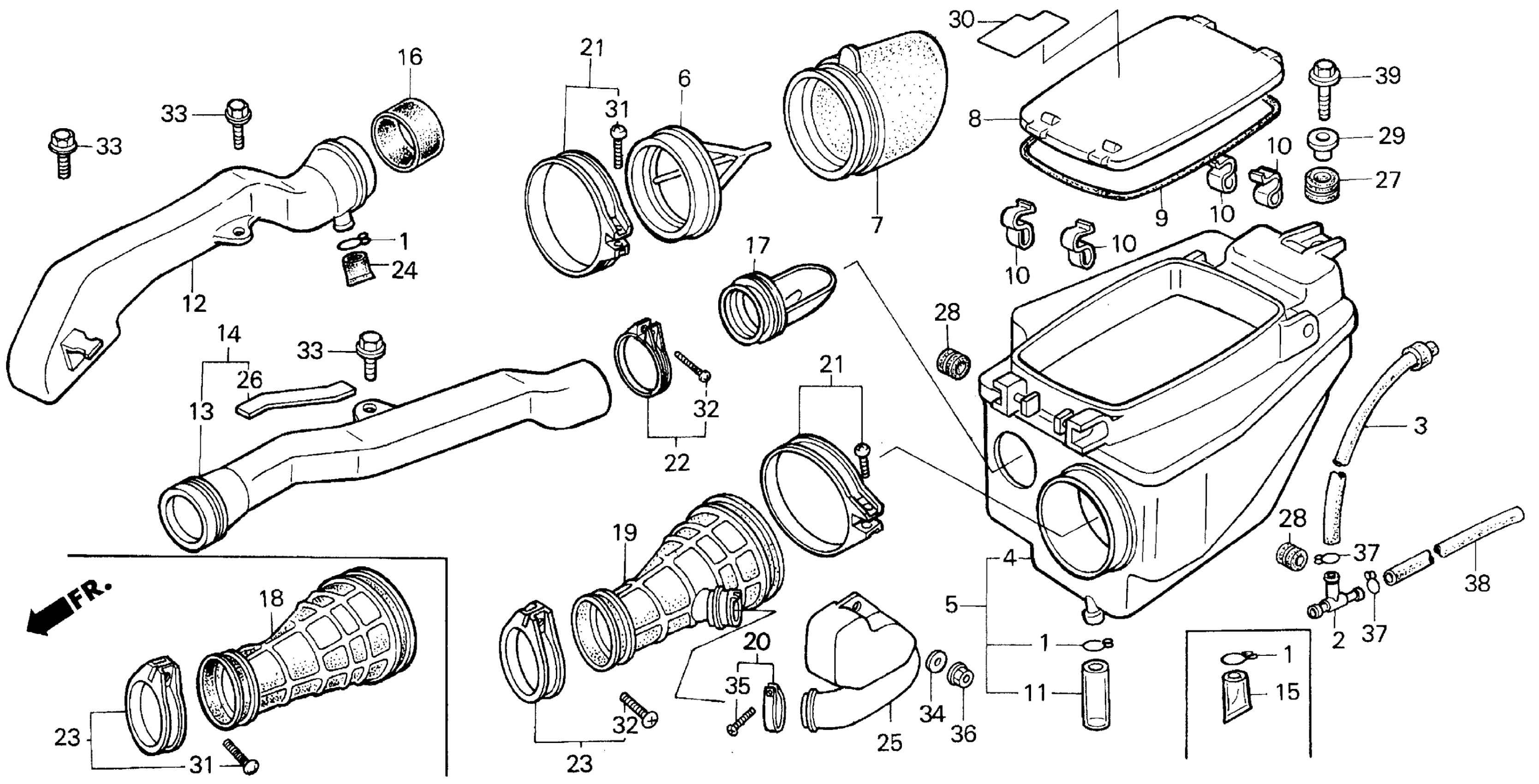

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

5

HOUSING, AIR CLEANER

17210-HB9-770

Unavailable

6

BASE, ELEMENT (NOT AVAILABLE)

17212-HB9-770

Unavailable

7

ELEMENT, AIR CLEANER

17213-HB9-770

Unavailable

8

LID, AIR CLEANER HOUSING

17217-HB9-770

Unavailable

9

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

9

SEAL, AIR CLEANER COVER This part replaces 17219-HB9-000.

17219-HA2-405

$5.96

9

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-000.

17219-HA2-405

$5.96

9

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-010.

17219-HA2-405

$5.96

9

SEAL, AIR CLEANER COVER This part replaces 17233-MF2-000.

17219-HA2-405

$5.96

10

SPRING, AIR CLEANER LID SETTING

17223-HB3-003

$7.88

11

TUBE, VINYL (11X15X45)

17227-HC0-000

$7.52

12

PIPE, AIR CLEANER IN. (NOT AVAILABLE)

17225-HB9-770

Unavailable

14

PIPE B, AIR CLEANER IN. (NOT AVAILABLE)

17226-HB9-770

Unavailable

16

RUBBER, SEAL (INNER) (NOT AVAILABLE)

17227-HB9-000

Unavailable

17

TUBE, AIR CLEANER IN. (NOT AVAILABLE)

17252-HB9-000

Unavailable

19

TUBE, AIR CLEANER CONNECTING

17253-HB9-670

Unavailable

20

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17255-KK6-000.

95018-42250

$7.72

20

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 90652-GHB-640.

95018-42250

$7.72

20

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.72

21

BAND, CONNECTING TUBE

17256-HB9-000

Unavailable

22

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$6.25

22

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-680.

95018-60250

$6.25

23

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 17255-MN1-670.

95018-64250

$14.56

23

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 17257-HB9-000.

95018-64250

$14.56

23

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 90652-GHB-750.

95018-64250

$14.56

23

BAND, AIR CLEANER CONNECTING TUBE (64)

95018-64250

$14.56

25

RESONATOR

17410-HB9-670

Unavailable

26

RUBBER, FUEL TANK SIDE

17503-HB9-771

Unavailable

28

GROMMET, SHROUD SETTING

19032-HB9-000

Unavailable

29

COLLAR, HEADLIGHT BRACKET

90501-MJ6-000

$4.48

30

MARK, AIR CLEANER ELEMENT CAUTION (NOT AVAILABLE)

87512-HA2-830

Unavailable

31

SCREW, PAN (4X20) (NOT AVAILABLE)

90106-HA0-680

Unavailable

32

SCREW, PAN (4X25)

90107-HA0-680

$2.52

33

BOLT, FLANGE (6MM)

90111-187-000

$5.59

34

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

35

SCREW, PAN (4X25)

93500-04025-0G

$1.49

36

NUT, FLANGE (6MM)

94050-06000

$1.49

39

BOLT, FLANGE (6X25)

96300-06025-00

$1.49
