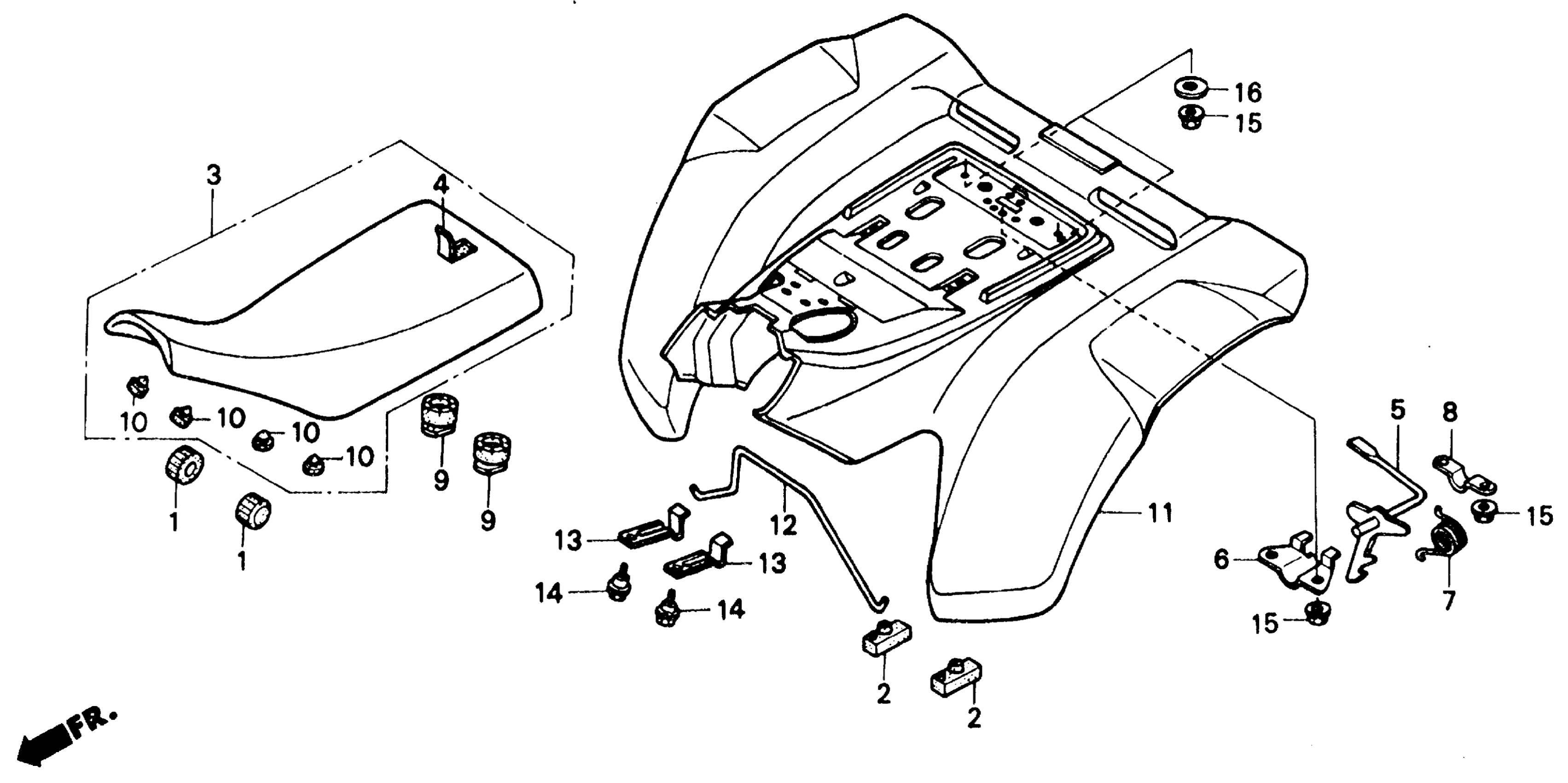

Honda TRX250RA (88) FOURTRAX 250R, JPN, VIN# JH3TE120-JK200011 TO JH3TE120-JK209449 REAR FENDER 88 Diagram

RUBBER, FR. FUEL TANK

17611-HA5-000

$5.21

RUBBER, RR. FENDER SETTING

50815-HA2-670

$17.44

SEAT COMP *NH1L* (BLACK)

77100-HB9-P00ZA

Unavailable

SEAT COMP *NH1L* (BLACK) This part replaces 77100-HB9-770ZA.

77100-HB9-P00ZA

Unavailable

SEAT COMP *NH1L* (BLACK) This part replaces 77100-HB9-771ZA.

77100-HB9-P00ZA

Unavailable

COVER, SEAT *R94L* (STRIKING RED) (NOT AVAILABLE)

77101-HB9-770ZA

Unavailable

LEVER, SEAT LOCK

77105-HC0-000

$25.57

BRACKET, LOCK LEVER

77106-HC0-000

$7.39

SPRING, SEAT LOCK

77107-HA7-670

Unavailable

BRACKET, RR. LOCK LEVER

77108-HC0-000

Unavailable

RUBBER, SEAT SETTING

77207-HA0-000

$7.14

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

FENDER, RR. *R134* (WOL) (FIGHTING RED)

80100-HB9-306ZA

Unavailable

FENDER, RR. *R134* (WOL) (FIGHTING RED) This part replaces 80100-HB9-770ZA.

80100-HB9-306ZA

Unavailable

STAY, FENDER SUPPORT

80116-HB9-000

Unavailable

BRACKET, FENDER SUPPORT

80117-HB9-770

Unavailable

BOLT, FLANGE (6MM)

90110-MG9-700

$4.45

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49
