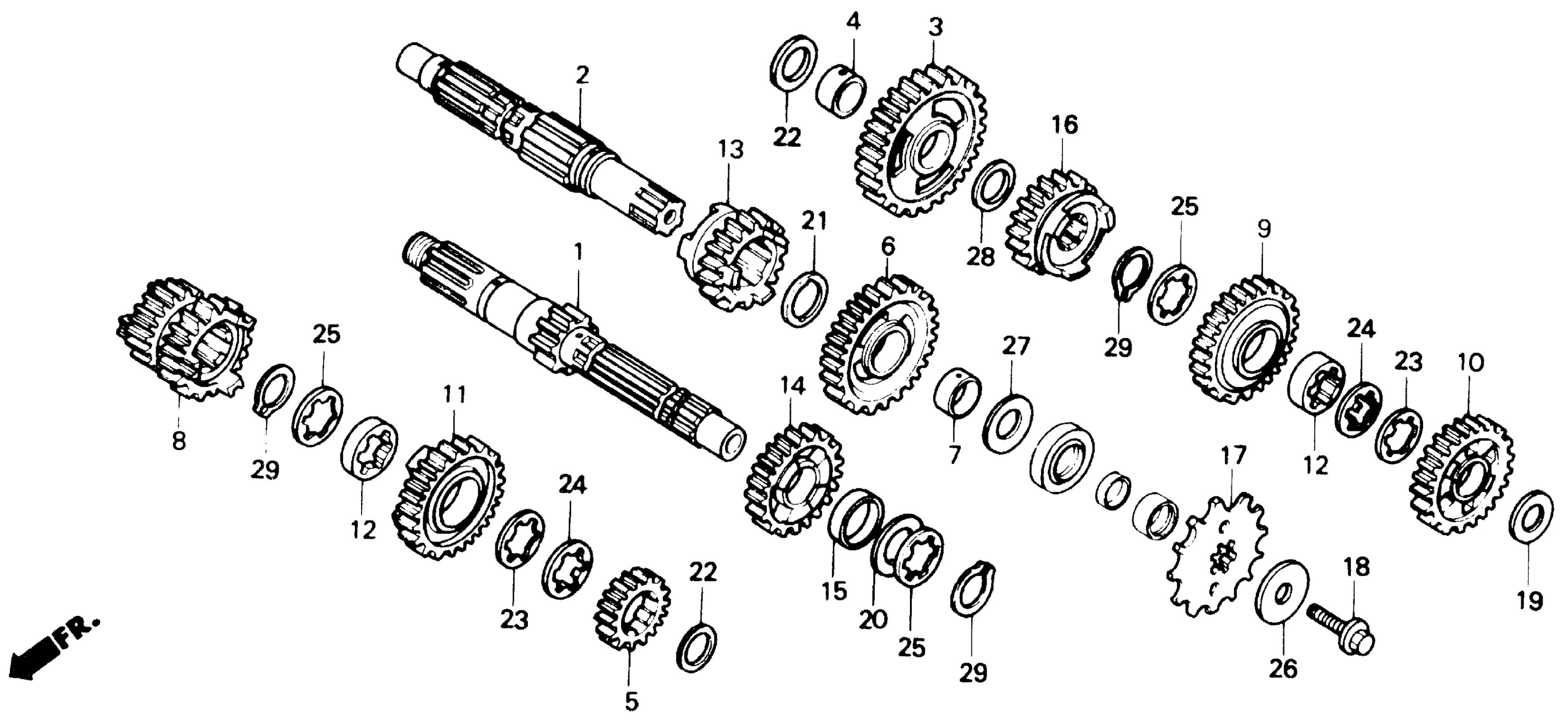

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (14T) This part replaces 23211-HA2-000.

23211-HB9-770

Unavailable

1

MAINSHAFT (14T)

23211-HB9-770

Unavailable

2

COUNTERSHAFT This part replaces 23221-HA2-000.

23221-HB9-770

Unavailable

2

COUNTERSHAFT

23221-HB9-770

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23411-HA2-000

Unavailable

4

COLLAR, COUNTERSHAFT LOW GEAR

23412-HA2-000

Unavailable

5

GEAR, MAINSHAFT SECOND (16T)

23421-HA2-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23431-HA2-010

Unavailable

7

COLLAR, COUNTERSHAFT SECOND GEAR

23432-HA2-000

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (18T & 21T)

23441-HA2-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (30T)

23451-HA2-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (28T)

23471-HA2-670

Unavailable

11

GEAR, MAINSHAFT FIFTH (23T)

23481-HB9-670

Unavailable

12

COLLAR, MAINSHAFT FIFTH GEAR

23482-HA2-000

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (25T)

23491-HB9-670

Unavailable

14

GEAR (25T) This part replaces 23501-HB9-670.

23501-HB9-305

Unavailable

16

GEAR, COUNTERSHAFT TOP (23T)

23511-HB9-670

Unavailable

17

SPROCKET, DRIVE (13T)

23803-HA2-000

Unavailable

18

BOLT, FLANGE (8X20) This part replaces 90012-HA2-000.

90103-426-000

$3.30

18

BOLT, FLANGE (8X20) This part replaces 90103-HA2-000.

90103-426-000

$3.30

18

BOLT, FLANGE (8X20)

90103-426-000

$3.30

19

WASHER, THRUST (25.2X30)

90431-HA2-000

Unavailable

21

WASHER, THRUST (24.2X34)

90446-KA5-680

Unavailable

22

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

23

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

24

WASHER, LOCK (25MM)

90462-323-000

$3.77

25

WASHER, SPLINE (25MM)

90463-430-000

$5.89

26

WASHER, SPRING (8X40)

90501-HB9-003

$4.40

27

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

27

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

28

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

29

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16
