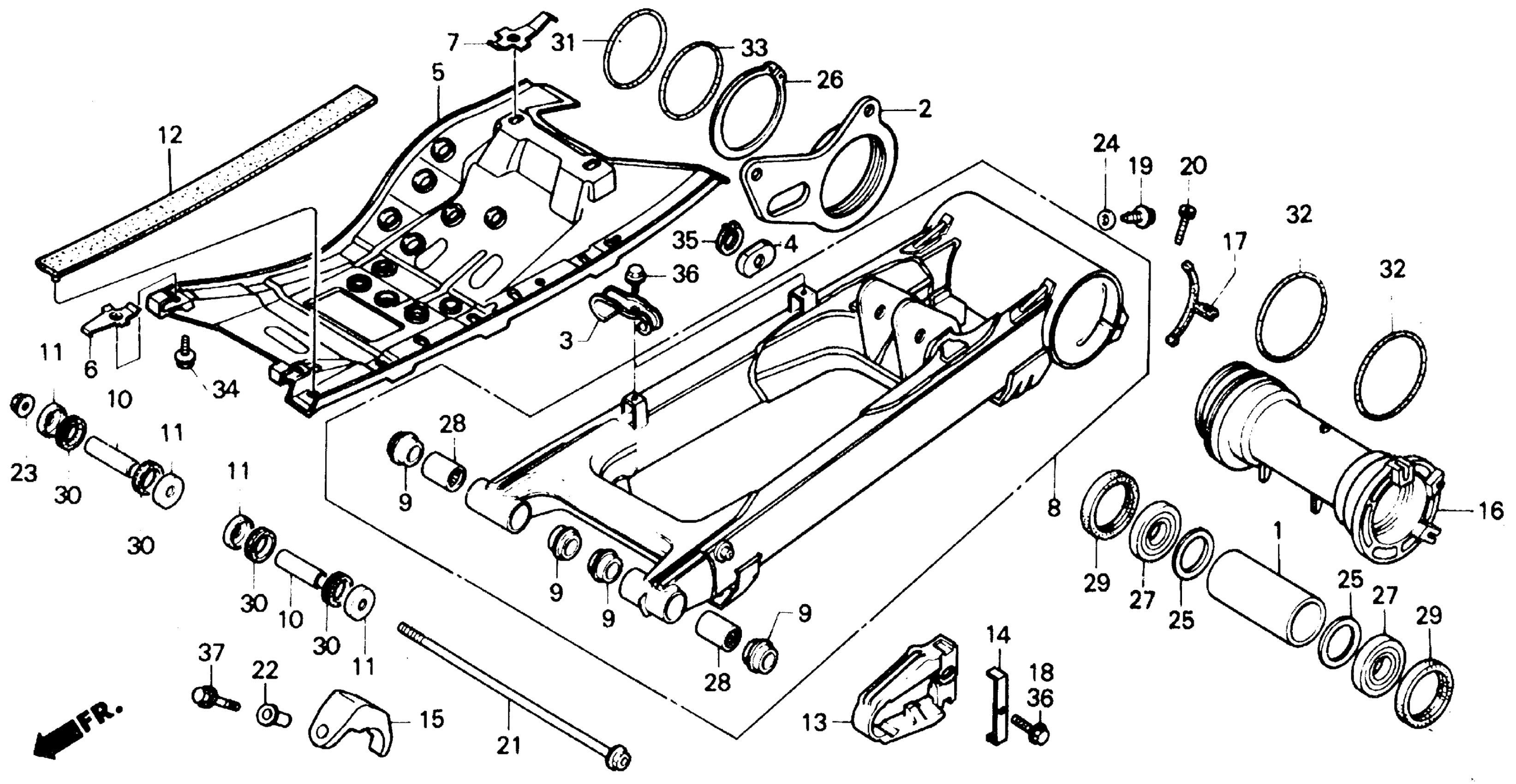

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 SWINGARM 86,87 Diagram

#

Description
Price

1

COLLAR, DISTANCE

42621-HA2-670

Unavailable

2

STAY, RR. CALIPER This part replaces 43211-HA2-670.

43211-HB9-770

Unavailable

2

STAY, RR. CALIPER

43211-HB9-770

Unavailable

3

CLAMP, BRAKE HOSE

43311-965-000

$7.61

4

BUSH, RR. BRAKE STAY

43483-HB5-670

$8.83

5

PLATE, SKID (NOT AVAILABLE) This part replaces 50355-HB9-670.

50355-HB9-770

Unavailable

8

SWINGARM ASSY. (WOL) (NOT AVAILABLE)

52000-HB9-670

Unavailable

9

BUSH, PIVOT THRUST This part replaces 52109-HA2-003.

52109-HA2-305

$13.59

9

BUSH, PIVOT THRUST

52109-HA2-305

$13.59

10

COLLAR, SWINGARM

52141-HA2-000

Unavailable

11

CAP, DUST SEAL

52144-HA2-005

Unavailable

12

SLIDER, SKID PLATE

52156-HB9-000

Unavailable

13

SLIDER, CHAIN

52170-HA2-770

Unavailable

14

STAY, CHAIN SLIDER

52171-HA2-000

Unavailable

15

SLIDER, CHAIN (LOWER)

52175-HB9-005

Unavailable

16

HOLDER, BEARING

52201-HA2-670

Unavailable

17

SEAL, BEARING HOLDER

52202-HA2-670

$15.27

18

BOLT, FLANGE (6X10)

90011-HB9-000

$2.46

19

BOLT, STOPPER (8MM)

90115-964-003

$3.67

20

BOLT, SOCKET (8MM)

90116-125-782

Unavailable

21

BOLT, RR. SWINGARM

90117-HA2-000

Unavailable

22

COLLAR, REFLECTOR SETTING

90129-MA2-000

Unavailable

23

NUT, U (14MM)

90305-GE8-003

$3.86

24

WASHER (8MM)

90481-035-000

$1.87

25

WASHER, AXLE COLLAR

90501-HA2-670

Unavailable

26

CIRCLIP (OUTER) (70MM)

90665-964-000

$13.19

27

BEARING (40X62X12) (KOYO) This part replaces 91051-HA2-003.

91051-HA2-013

$35.80

27

BEARING (40X62X12)

91051-HA2-013

$35.80

28

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

28

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

29

DUST SEAL (52X62X7)

91252-HA2-003

$16.85

30

DUST SEAL (27X31.8X5) (NOK) This part replaces 91253-HA2-003.

91253-HA2-005

Unavailable

30

DUST SEAL (27X31.8X5) (NOK)

91253-HA2-005

Unavailable

31

O-RING, ROTARY CASE

91351-737-752

$5.53

32

O-RING, BEARING HOLDER (81X3)

91353-HA2-670

$7.39

33

O-RING (69X2)

91302-MS2-003

$4.13

33

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$4.13

34

BOLT-WASHER (8X16)

90155-964-670

Unavailable

35

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

36

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

37

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
