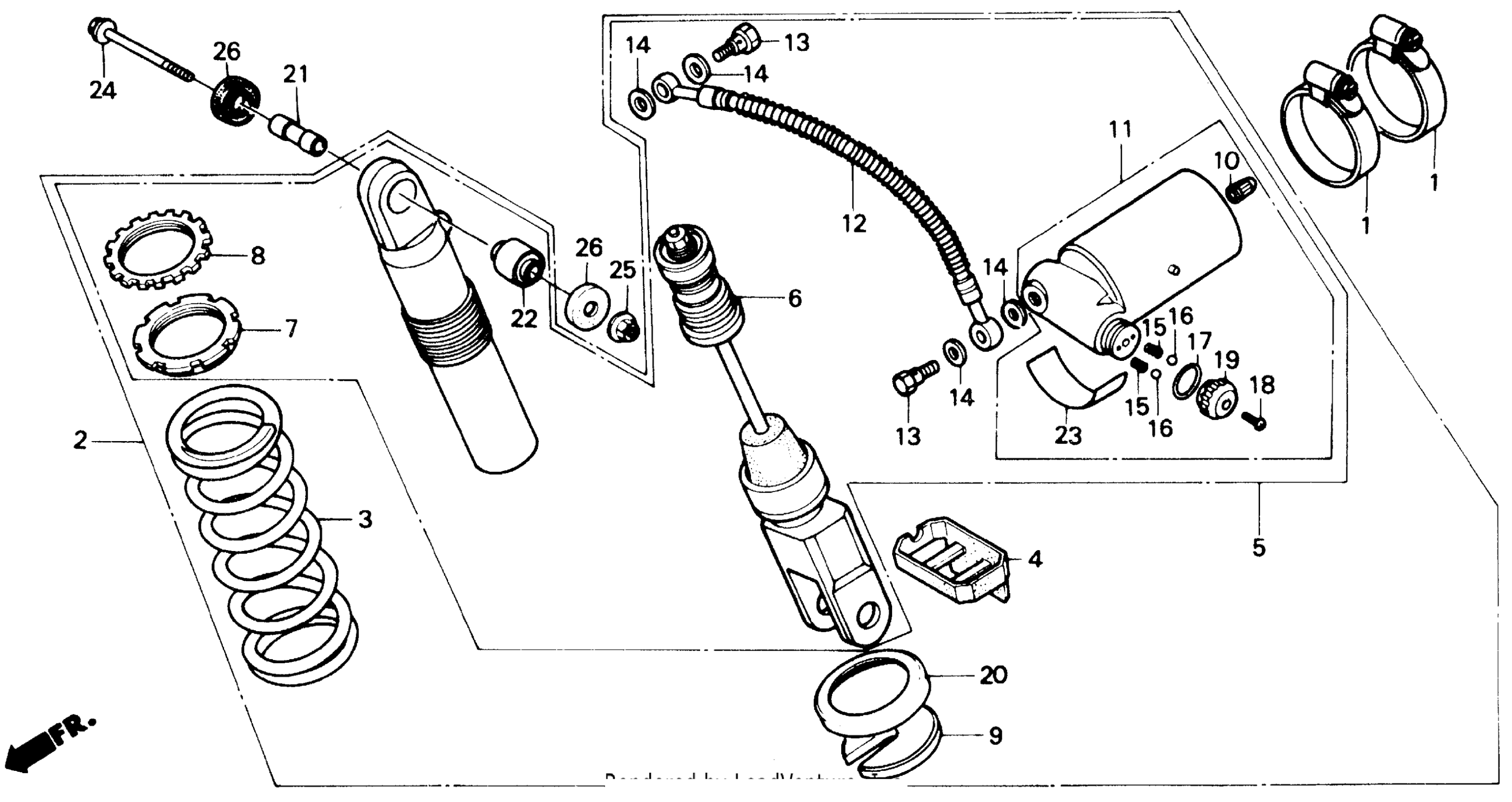

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 REAR SHOCK ABSORBER Diagram

BAND, SUB-TANK

50252-KA4-700

Unavailable

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-HB9-671

Unavailable

SPRING, RR. SHOCK ABSORBER (SHOWA) (NOT AVAILABLE)

52401-HB9-671

Unavailable

BOOT, RR. SHOCK ABSORBER (NOT AVAILABLE)

52402-964-671

Unavailable

DAMPER, RR. (SHOWA)

52410-HB9-671

Unavailable

ROD, PISTON (SHOWA) (NOT AVAILABLE)

52421-HB9-671

Unavailable

ADJUSTER, SPRING

52422-MA0-003

$39.25

NUT, ADJUSTER

52423-KA3-711

Unavailable

STOPPER, SPRING SEAT

52424-MA0-003

Unavailable

CAP, AIR VALVE

52425-381-771

$5.05

SUB-TANK ASSY. (SHOWA) (NOT AVAILABLE)

52430-HB9-671

Unavailable

HOSE, JOINT (SHOWA) (NOT AVAILABLE)

52440-HB9-671

Unavailable

BOLT, OIL (10X22)

52441-KA3-711

Unavailable

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

SEAT, SPRING

52459-964-003

Unavailable

COLLAR, SHOCK ABSORBER PIVOT (NOT AVAILABLE)

52487-HB9-000

Unavailable

BUSH, SHOCK ABSORBER (NOT AVAILABLE)

52489-HB9-003

Unavailable

LABEL, RR. DAMPER WARNING

87516-MK2-681

Unavailable

BOLT, FLANGE (10X70)

90158-MG3-000

$12.63

NUT, U (10MM)

90304-GE8-003

$3.67

SEAL, SHOCK ABSORBER PIVOT

91265-HA2-013

Unavailable
