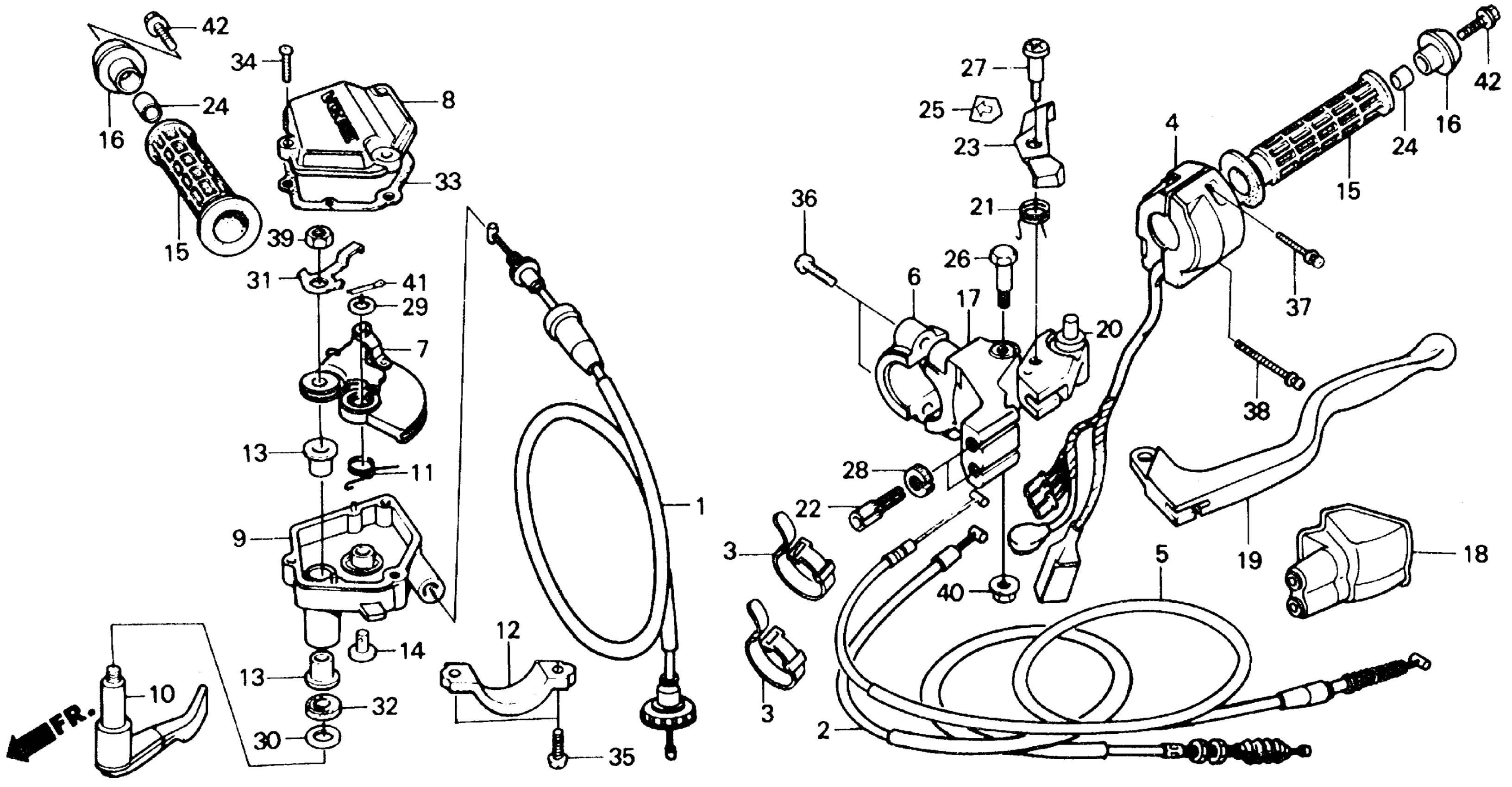

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 HANDLE LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HB9-305

Unavailable

2

CABLE, CLUTCH This part replaces 22870-HB9-000.

22870-KR0-000

$30.00

2

CABLE, CLUTCH

22870-KR0-000

$30.00

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., LIGHTING ENGINE This part replaces 35200-HB9-010.

35200-HB9-020

Unavailable

4

SWITCH ASSY., LIGHTING ENGINE

35200-HB9-020

Unavailable

5

CABLE, PARKING BRAKE (NOT AVAILABLE)

43455-HB9-000

Unavailable

6

HOLDER, MASTER CYLINDER

45517-961-000

Unavailable

7

LINK, THROTTLE

53140-HB9-000

Unavailable

8

COVER, THROTTLE CASE

53141-HB9-000

Unavailable

9

CASE, THROTTLE LEVER

53142-HB9-000

Unavailable

10

LEVER, THROTTLE | Use up to Frame SN HK130425 This part replaces 53145-HA0-000.

53145-HA0-770

$24.05

10

LEVER, THROTTLE

53145-HA0-770

$24.05

11

SPRING, THROTTLE RETURN

53146-HA2-000

Unavailable

12

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

13

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

14

PIN, THROTTLE CENTER

53150-HA2-000

Unavailable

15

GRIP, HANDLE

53165-958-010

$13.38

16

GUARD, HANDLEBAR END

53167-958-680

$6.40

17

BRACKET, L. HANDLEBAR

53172-961-000

Unavailable

18

COVER, L. HANDLEBAR

53177-HA5-000

$8.76

19

LEVER, L. HANDLEBAR

53178-965-000

Unavailable

20

ARM ASSY., PARKING BRAKE

53180-961-010

Unavailable

21

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

22

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

23

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

24

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

25

MARK, PARKING BRAKE LEVER

87574-HA5-300

$2.13

26

BOLT, HANDLE LEVER PIVOT

90115-HB5-670

Unavailable

27

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

28

NUT, FIXING

90321-315-670

$7.31

29

WASHER, FLAT SCREW

90503-964-000

Unavailable

30

WASHER (9X20)

90504-HA0-000

$2.28

31

WASHER, LOCK (6MM)

90505-HA2-000

Unavailable

32

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

32

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

33

GASKET This part replaces 91354-HA2-000.

91354-HA2-010

Unavailable

33

GASKET This part replaces 91354-HB9-000.

91354-HA2-010

Unavailable

34

SCREW, PAN (4X12)

93500-04012-0G

$1.49

35

SCREW, PAN (5X18)

93500-05018-0G

$1.49

36

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

37

SCREW-WASHER (5X25)

93892-05025-07

$1.49

38

SCREW-WASHER (5X32)

93892-05032-07

Unavailable

39

NUT, HEX. (6MM)

94002-06000-0S

$1.49

40

NUT, FLANGE (6MM)

94050-06000

$1.49

41

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

41

PIN, SPLIT (1.0MM)

94201-10150

$1.49

42

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
