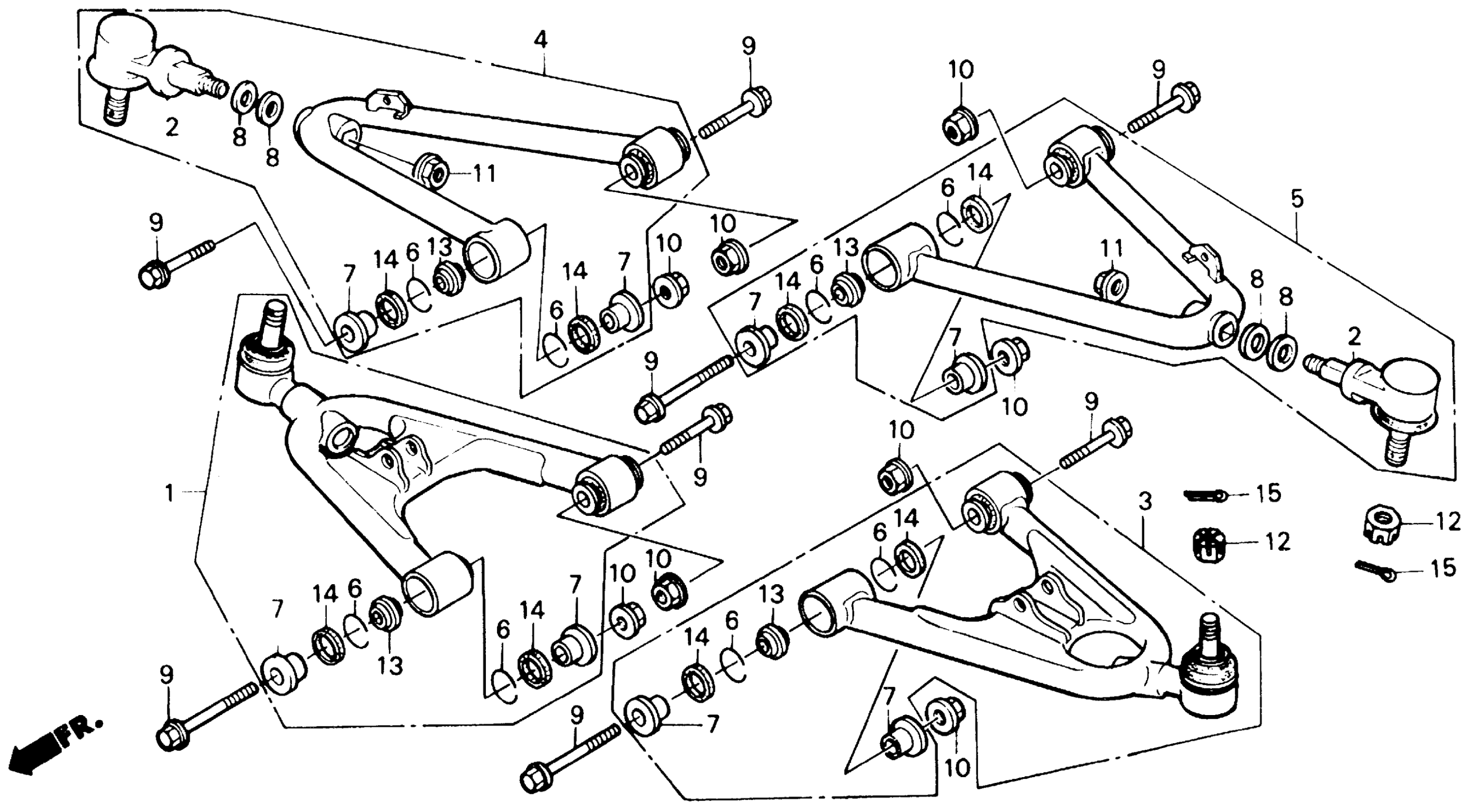

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 FRONT ARM 87 Diagram

ARM ASSY., R. FR. (LOWER) (NOT AVAILABLE)

51350-HB9-670

Unavailable

JOINT, BALL (UPPER)

51355-HB9-671

Unavailable

ARM ASSY., L. FR. (LOWER)

51360-HB9-670

Unavailable

ARM ASSY., R. FR. (UPPER)

51370-HB9-670

Unavailable

ARM ASSY., L. FR. (UPPER)

51380-HB9-670

Unavailable

RING, STOPPER

51393-HB9-670

$4.98

COLLAR, FR. ARM PIVOT

51394-HB9-670

Unavailable

COLLAR, CHAMBER SETTING (NOT AVAILABLE)

51399-HB9-670

Unavailable

BOLT, FLANGE (10X71)

90129-KAS-900

$9.74

BOLT, FLANGE (10X71) This part replaces 90150-MK2-770.

90129-KAS-900

$9.74

NUT, U (10MM)

90304-GE8-003

$3.67

NUT, U (14MM)

90305-GE8-003

$3.86

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

BEARING, SPECIAL (10MM) (THOMPSON) This part replaces 91077-HB9-671.

91077-HB9-672

$38.29

BEARING, SPECIAL (10MM) (IKO)

91077-HB9-672

$38.29

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

$3.92

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49
