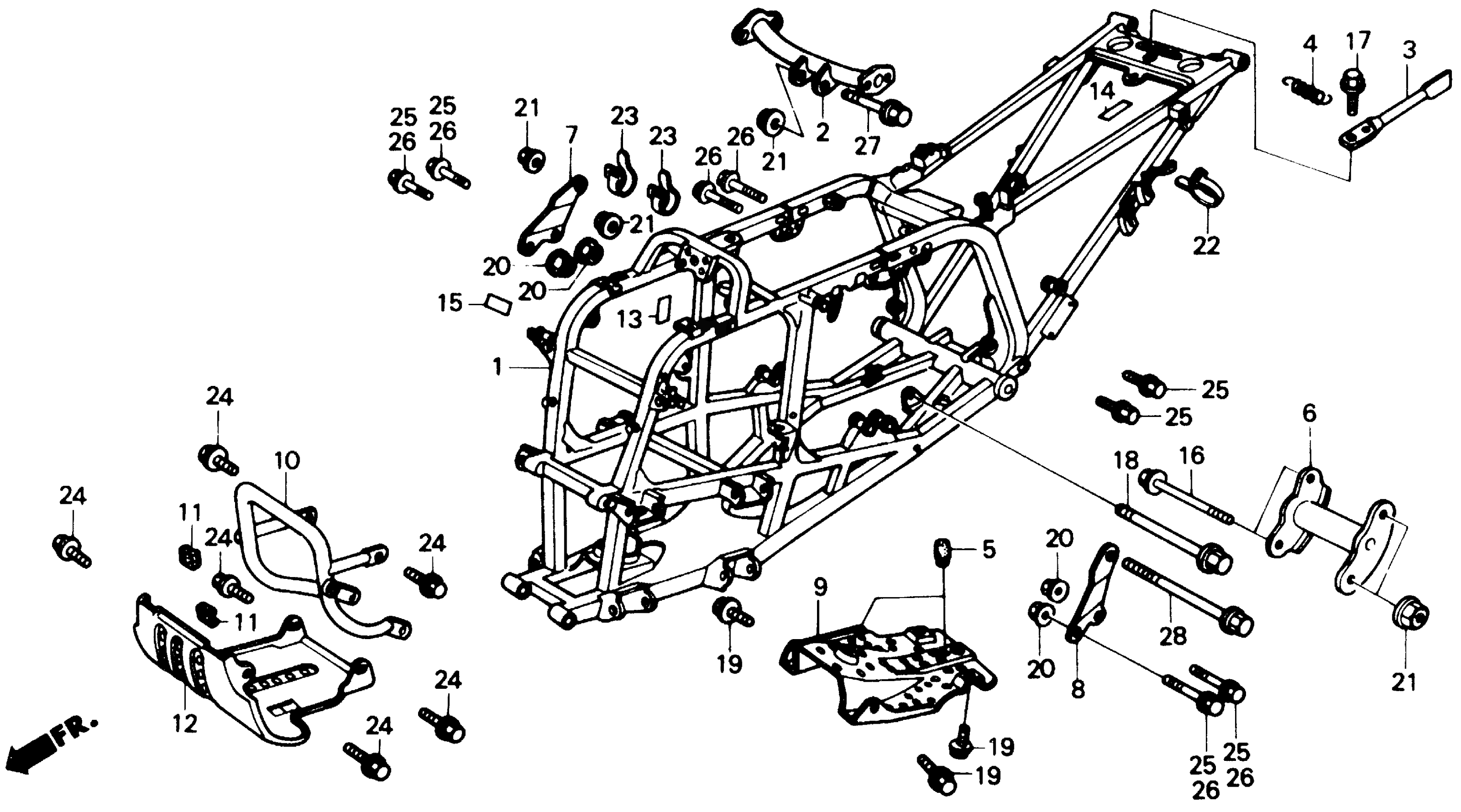

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 FRAME 86,87 Diagram

FRAME *R109* (PASSION RED) (NOT AVAILABLE)

50100-HB9-670ZA

Unavailable

PIPE, ENGINE SETTING (UPPER)

50121-HB9-000

Unavailable

LEVER, SEAT LOCK

50221-HA2-000

Unavailable

SPRING, LEVER SETTING (NOT AVAILABLE)

50222-HA2-000

Unavailable

RUBBER B, STOPPER (NOT AVAILABLE)

50363-HA0-000

Unavailable

BRACKET, RR. ENGINE HANGER

50354-HA2-670

Unavailable

PLATE, R. FR. ENGINE HANGER This part replaces 50356-HB9-000.

50356-HB9-770

Unavailable

PLATE, R. FR. ENGINE HANGER

50356-HB9-770

Unavailable

PLATE, L. FR. ENGINE HANGER This part replaces 50357-HB9-000.

50357-HB9-770

Unavailable

PLATE, L. FR. ENGINE HANGER

50357-HB9-770

Unavailable

GUARD, ENGINE (NOT AVAILABLE)

50360-HB9-000

Unavailable

PIPE, FR. CARRY (NOT AVAILABLE)

81150-HB9-670

Unavailable

RUBBER, FR. SKID PLATE (NOT AVAILABLE)

81155-HB9-000

Unavailable

PLATE, FR. SKID (NOT AVAILABLE)

81160-HB9-670

Unavailable

LABEL, RADIATOR CAUTION (NOT AVAILABLE)

87506-HB9-000

Unavailable

LABEL, RESERVE TANK

87507-ME9-670

Unavailable

LABEL, RADIATOR WARNING (NOT AVAILABLE)

87508-HB9-000

Unavailable

BOLT, FLANGE (10X110) This part replaces 90025-PD1-000.

95801-10110-08

$4.92

BOLT, FLANGE (10X110)

95801-10110-08

$4.92

BOLT, SPLASH GUARD

90140-SA5-000

$9.27

BOLT, ENGINE HANGER (10X135)

90152-964-000

$8.65

BOLT-WASHER (8X16)

93404-08016-00

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BAND B1, CABLE

95014-62100

$1.64

BOLT, FLANGE (8X12)

96300-08012-00

$2.84

BOLT, FLANGE (8X16)

96300-08016-00

$1.49

BOLT, FLANGE (8X45)

96300-08045-00

$2.08

BOLT, FLANGE (10X50)

96400-10050-00

$2.08

BOLT, FLANGE (10X140)

96400-10140-00

$4.15
