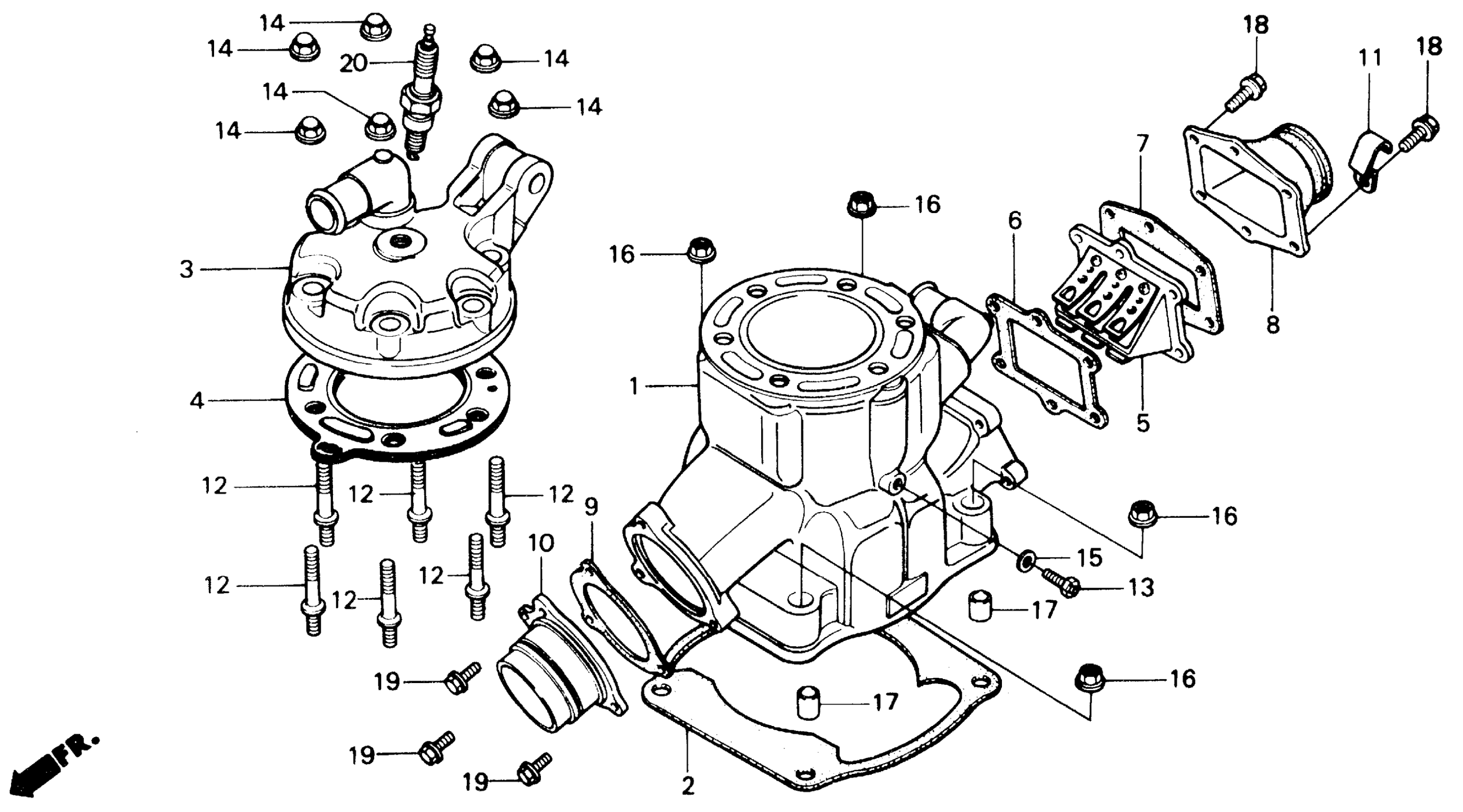

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER A

12100-HA2-770

Unavailable

1

CYLINDER B (NOT AVAILABLE)

12101-HA2-770

Unavailable

2

GASKET, CYLINDER

12191-HA2-306

$12.43

2

GASKET, CYLINDER This part replaces 12191-HA2-670.

12191-HA2-306

$12.43

3

CYLINDER HEAD (NOT AVAILABLE)

12200-HA2-770

Unavailable

4

GASKET, CYLINDER HEAD

12254-HB9-013

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12254-HA2-770.

12254-HB9-013

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12254-HA2-771.

12254-HB9-013

Unavailable

5

VALVE ASSY., REED (NOT AVAILABLE)

14100-HA2-771

Unavailable

6

GASKET A, REED VALVE

14132-KAE-000

$4.06

6

GASKET A, REED VALVE This part replaces 14132-430-000.

14132-KAE-000

$4.06

8

INSULATOR, CARBURETOR

16210-HA2-770

$54.79

9

GASKET, EX. PIPE This part replaces 18291-HA2-003.

18291-430-306

$4.92

9

GASKET, EX. PIPE This part replaces 18291-430-000.

18291-430-306

$4.92

9

GASKET, EX. PIPE

18291-430-306

$4.92

10

JOINT, EX. PIPE

18351-HA2-000

Unavailable

11

CLAMP, WIRE (NOT AVAILABLE)

32111-HA2-000

Unavailable

12

BOLT, SPECIAL STUD

90011-HA2-000

$7.20

13

BOLT, OIL CHECK

90037-360-000

$3.26

14

NUT, CAP (8MM)

90443-107-000

$2.89

15

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

16

NUT, FLANGE (10MM)

94050-10000

$1.59

17

PIN A, DOWEL (12X20)

94301-12200

$2.29

18

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

19

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

20

SPARK PLUG (BR8ES) (NGK) | (Optional). This part replaces 98079-58816.

98079-58846

$2.62

20

SPARK PLUG (BR8ES) (NGK) | (Optional).

98079-58846

$2.62

20

SPARK PLUG (BR8ES) (NGK) | (Optional). This part replaces 98079-58864.

98079-58846

$2.62

20

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59816.

98079-59847

$2.44

20

SPARK PLUG (BR9ES) (NGK)

98079-59847

$2.44

20

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59847-01.

98079-59847

$2.44

20

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59864.

98079-59847

$2.44
