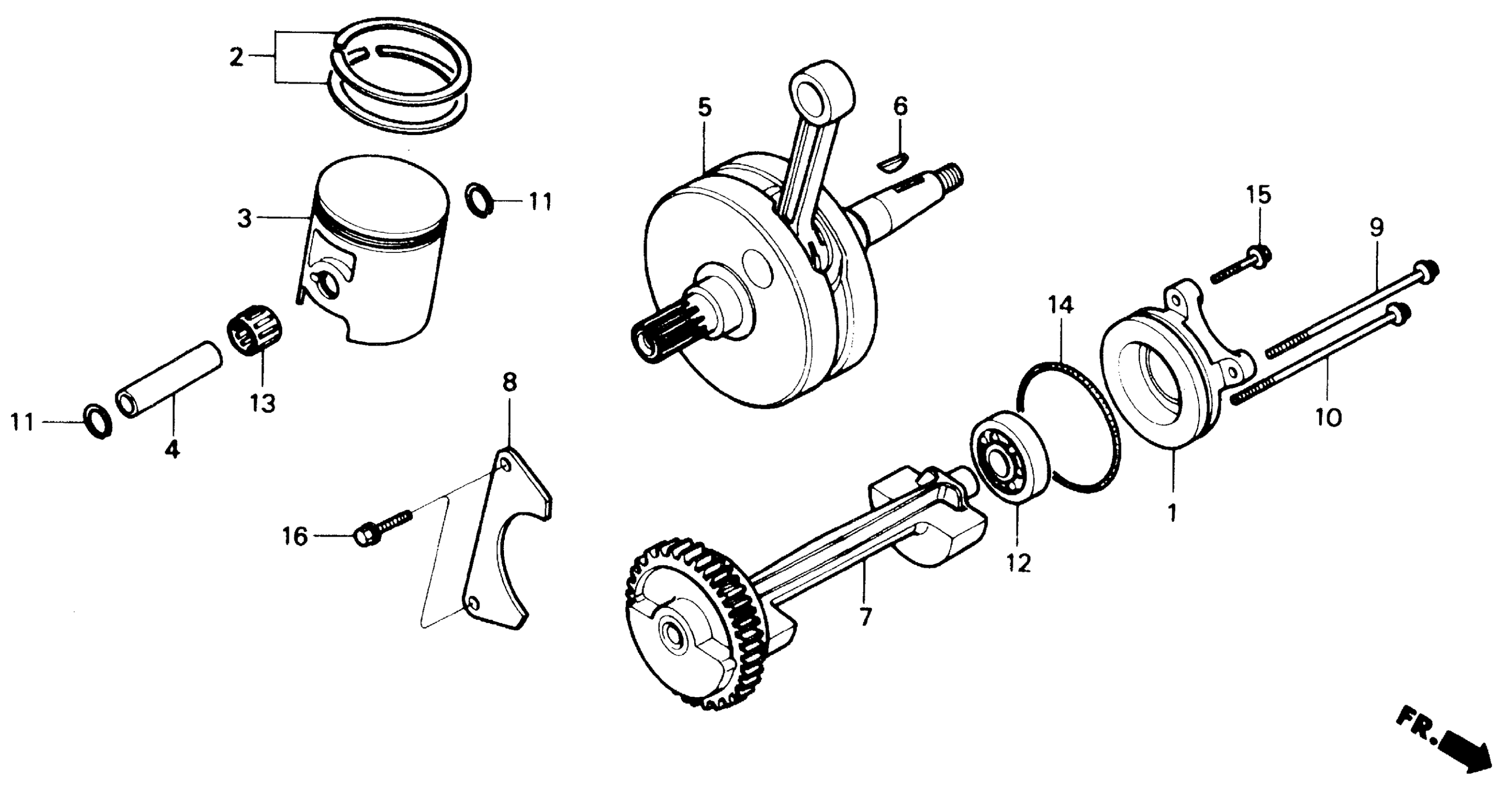

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 CRANKSHAFT Diagram

#

Description
Price

1

HOLDER, BALANCER BEARING

11361-HA2-000

Unavailable

2

RING SET, PISTON (STD)

13011-HA2-003

$43.87

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-HA2-003

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-HA2-003

Unavailable

3

PISTON B (STD) This part replaces 13101-HA2-770.

13102-HA2-772

Unavailable

3

PISTON B (STD) This part replaces 13102-HA2-770.

13102-HA2-772

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13103-HA2-770.

13103-HA2-772

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13104-HA2-770.

13104-HA2-772

Unavailable

3

PISTON B (STD) This part replaces 13101-HA2-771.

13102-HA2-772

Unavailable

3

PISTON B (STD) This part replaces 13101-HA2-772.

13102-HA2-772

Unavailable

3

PISTON B (STD)

13102-HA2-772

Unavailable

3

PISTON (OS 0.50) | (Optional).

13104-HA2-772

Unavailable

4

PIN, PISTON

13111-HA2-770

$19.86

5

CRANKSHAFT This part replaces 13300-HA2-771.

13300-HB9-770

Unavailable

5

CRANKSHAFT This part replaces 13300-HA2-772.

13300-HB9-770

Unavailable

5

CRANKSHAFT

13300-HB9-770

Unavailable

6

KEY, WOODRUFF SPECIAL (25X1)

13331-360-000

$3.47

7

WEIGHT, BALANCER

13350-HA2-000

Unavailable

8

PLATE, BALANCER BEARING SUPPORT (NOT AVAILABLE)

13353-HA2-000

Unavailable

9

BOLT, FLANGE (6X108)

90011-PF0-000

Unavailable

10

BOLT, FLANGE (6X100)

90016-HA2-670

Unavailable

11

CLIP, PISTON PIN (1.2X18)

90601-430-000

$3.28

12

BEARING, RADIAL BALL

91004-GJ5-023

$23.99

12

BEARING, RADIAL BALL This part replaces 91005-HA2-000.

91004-GJ5-023

$23.99

13

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-003.

91015-357-003

$28.53

13

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-004.

91015-357-003

$28.53

13

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-006.

91015-357-003

$28.53

13

BEARING 2, CONNECTING ROD SMALL END (TOYO)

91015-357-003

$28.53

13

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91015-357-004.

91015-357-003

$28.53

13

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91015-357-006.

91015-357-003

$28.53

14

O-RING (58.5X2) This part replaces 91302-HA2-000.

91308-500-010

$11.86

14

O-RING (58.5X2) This part replaces 91302-506-000.

91308-500-010

$11.86

14

O-RING (58.5X2)

91308-500-010

$11.86

14

O-RING (58.5X2) This part replaces 91308-504-000.

91308-500-010

$11.86

15

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

16

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
