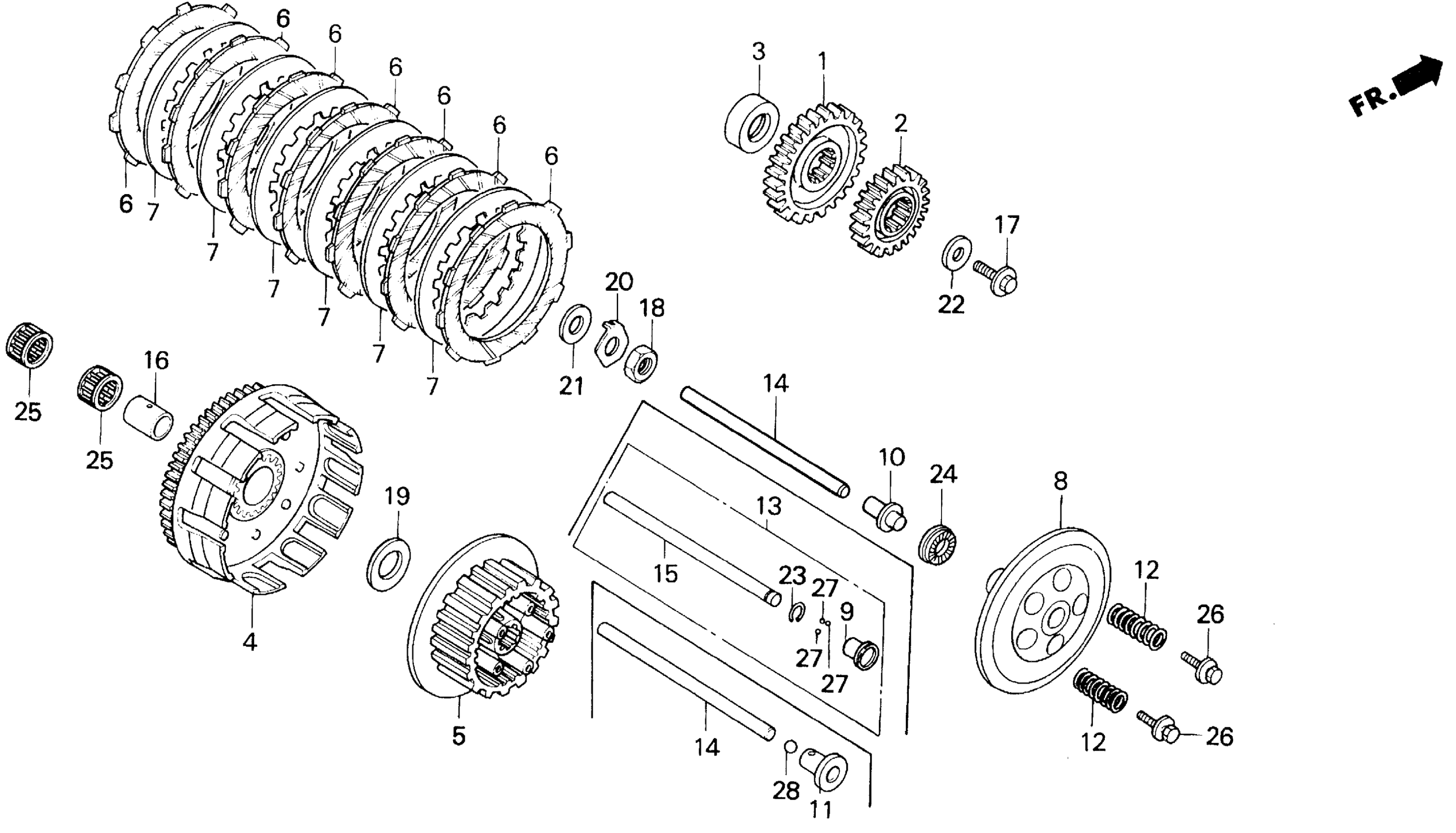

Honda TRX250RA (87) FOURTRAX 250R, JPN, VIN# JH3TE120-HK100011 TO JH3TE120-HK108429 CLUTCH Diagram

#

Description
Price

1

GEAR, BALANCER DRIVE (37T)

13355-HA2-000

Unavailable

2

GEAR, PRIMARY DRIVE (23T)

13615-HA2-000

Unavailable

3

COLLAR, DRIVE GEAR

13617-HA2-000

Unavailable

4

CLUTCH (OUTER)

22100-HA2-000

Unavailable

5

CENTER, CLUTCH This part replaces 22120-HA2-000.

22120-KAE-010

$99.23

5

CENTER, CLUTCH This part replaces 22120-KAE-000.

22120-KAE-010

$99.23

5

CENTER, CLUTCH

22120-KAE-010

$99.23

6

DISK, CLUTCH FRICTION This part replaces 22201-HA5-670.

22201-KAE-000

$19.37

6

DISK, CLUTCH FRICTION

22201-KAE-000

$19.37

6

DISK, CLUTCH FRICTION This part replaces 22201-KA3-712.

22201-KAE-000

$19.37

7

PLATE, CLUTCH

22321-KF0-770

$14.92

8

CLUTCH LIFTER KIT

06220-HB9-305

$129.80

8

CLUTCH LIFTER KIT This part replaces 22351-HA2-000.

06220-HB9-305

$129.80

9

PIECE, CLUTCH LIFTER

22352-HB9-670

Unavailable

12

SPRING, CLUTCH

22401-HA2-670

Unavailable

13

CLUTCH LIFTER KIT

06220-HB9-305

$129.80

13

CLUTCH LIFTER KIT This part replaces 22850-HB9-670.

06220-HB9-305

$129.80

13

CLUTCH LIFTER KIT This part replaces 22851-HB9-670.

06220-HB9-305

$129.80

16

COLLAR (23X30)

28242-HA2-010

Unavailable

17

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

18

NUT (18MM)

90235-KA4-000

$11.09

19

WASHER, THRUST (23X48)

90421-HA2-010

$10.91

20

WASHER, LOCK (18MM) This part replaces 90441-HA2-670.

90445-KAE-000

$5.12

20

WASHER, LOCK (18MM)

90445-KAE-000

$5.12

21

WASHER, THRUST (18X32)

90456-KA4-000

$4.76

22

WASHER, SPRING (10MM)

90481-430-000

$6.19

23

CLIP, LIFTER ROD (7.5)

90603-HB9-670

Unavailable

25

BEARING, NEEDLE (28X33X13) (TOYO)

91023-KG4-004

$25.53

26

BOLT-WASHER (6X20)

93404-06020-08

$1.62

27

BALL, STEEL (#4)

96211-04000

$1.49
