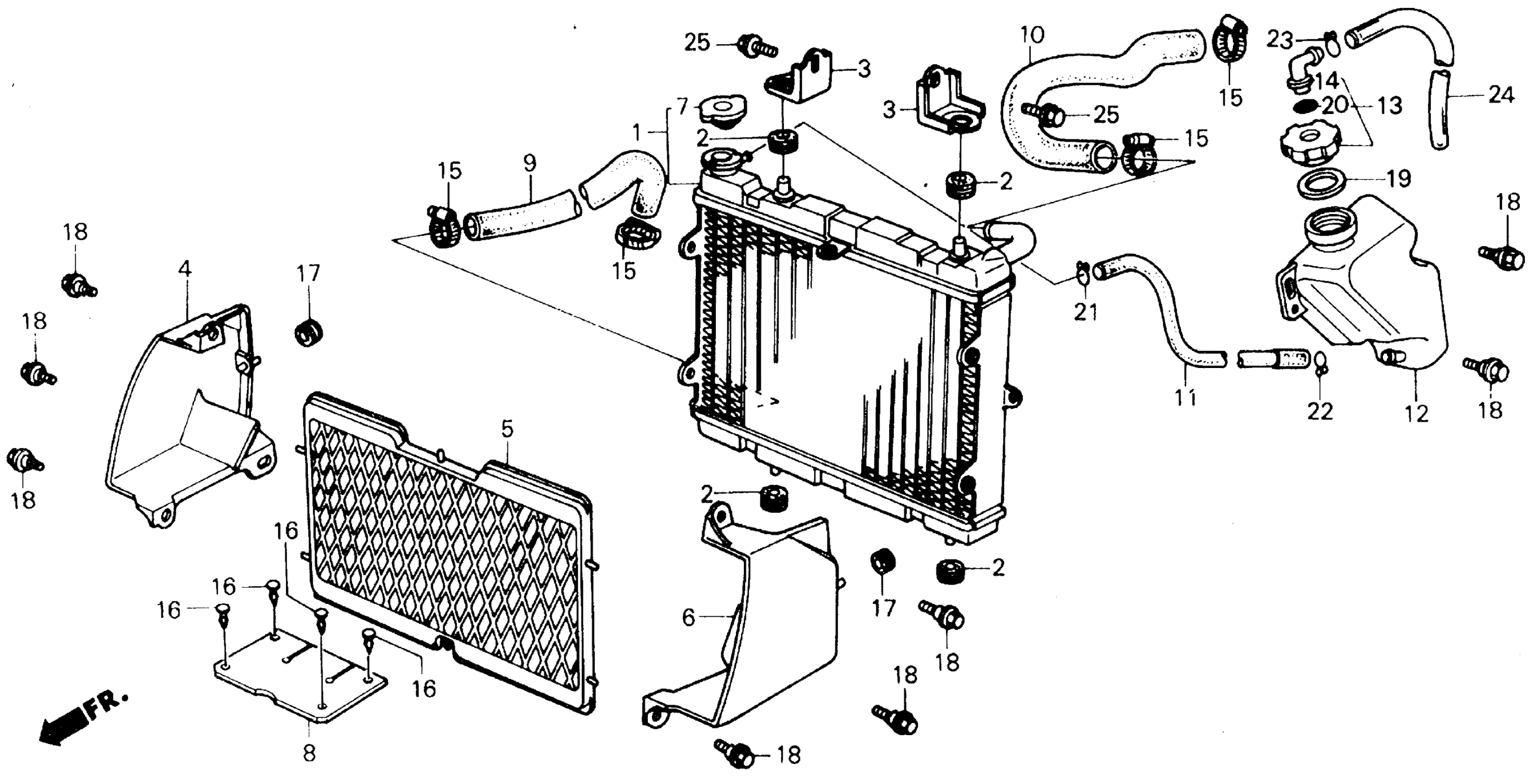

Honda TRX250RA (86) FOURTRAX 250R, JPN, VIN# JH3TE120-GC000013 TO JH3TE120-GC021064 RADIATOR Diagram

RADIATOR ASSY. (NOT AVAILABLE) This part replaces 19010-HB9-003.

19010-HB9-670

Unavailable

RUBBER, RADIATOR SETTING

19012-HB9-000

$6.80

BRACKET, RADIATOR (UPPER) (NOT AVAILABLE)

19015-HB9-000

Unavailable

SHROUD, R. RADIATOR

19030-HB9-000

Unavailable

GRILLE, RADIATOR (NOT AVAILABLE) This part replaces 19033-HB9-000.

19033-HB9-770

Unavailable

SHROUD, L. RADIATOR

19035-HB9-000

Unavailable

CAP, RADIATOR This part replaces 19037-KA4-701.

19045-MZ1-621

$50.26

RUBBER, SPLASH GUARD (NOT AVAILABLE)

19038-HB9-000

Unavailable

HOSE A, WATER

19061-HB9-000

Unavailable

HOSE B, WATER

19062-HB9-000

Unavailable

TUBE, BREATHER (NOT AVAILABLE)

19066-HB9-000

Unavailable

TANK, RADIATOR RESERVE This part replaces 19101-HB9-000.

19101-HB9-670

Unavailable

TANK, RADIATOR RESERVE

19101-HB9-670

Unavailable

CAP, RESERVE TANK This part replaces 19102-HA2-000.

19102-HB9-670

Unavailable

CAP, RESERVE TANK

19102-HB9-670

Unavailable

JOINT, RESERVE TANK This part replaces 19105-HA2-000.

19105-HB9-670

Unavailable

JOINT, RESERVE TANK

19105-HB9-670

Unavailable

CLAMP, WATER HOSE

19506-KA4-000

$9.18

CLIP, SWINGARM

52130-KA4-701

Unavailable

GROMMET, IGNITION COVER

53133-KB4-000

$2.26

BOLT, FLANGE (6MM)

90111-187-000

$5.59

SEAL, RESERVE TANK (NOT AVAILABLE)

91310-HB9-000

Unavailable

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (C11)

95002-70000

$1.56

BULK HOSE, VINYL (7X11X1000) (7X11X600)

95003-19001-10M

$3.89

BOLT, FLANGE (6X10)

96300-06010-00

$1.49
