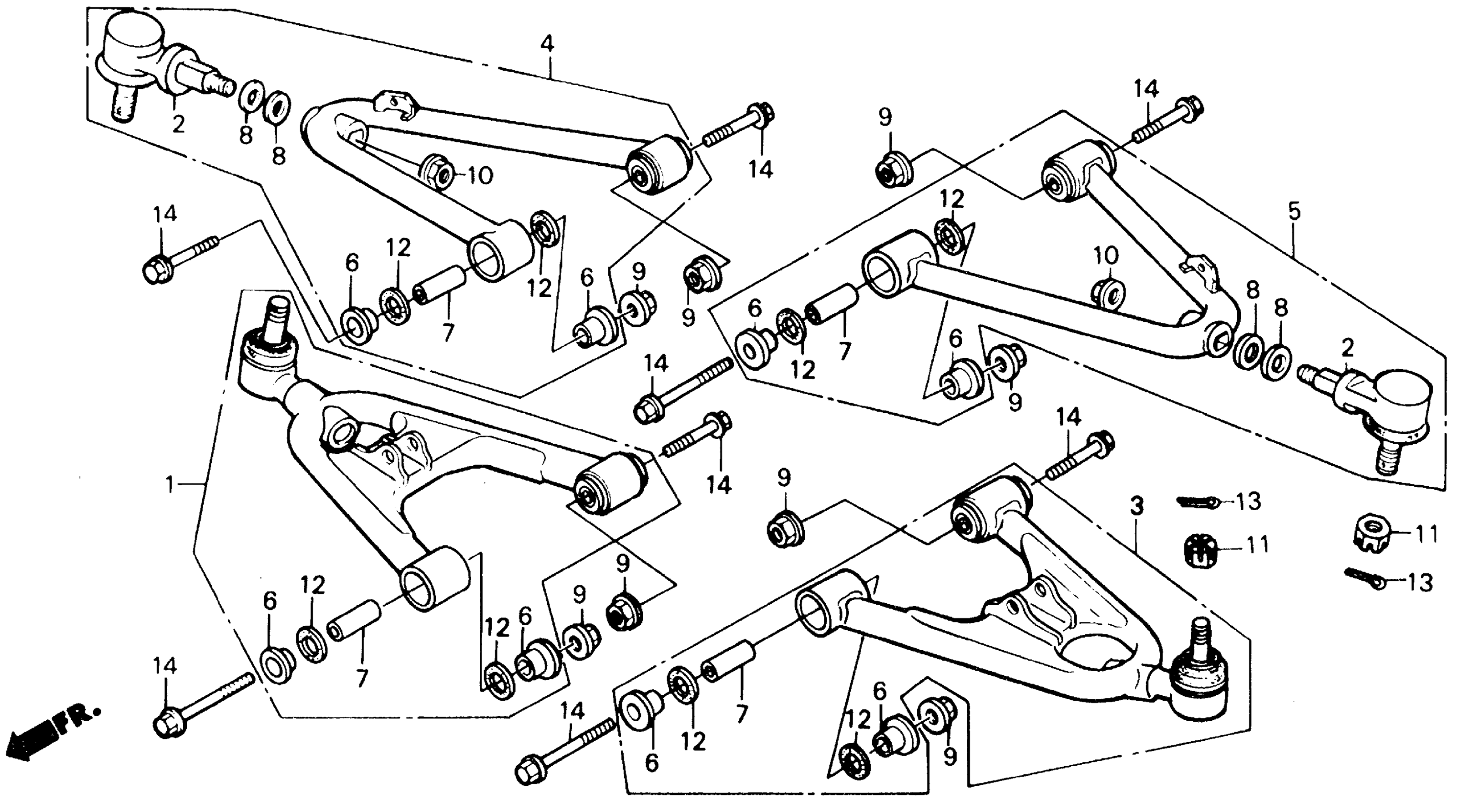

Honda TRX250RA (86) FOURTRAX 250R, JPN, VIN# JH3TE120-GC000013 TO JH3TE120-GC021064 FRONT ARM 86 Diagram

ARM ASSY., R. FR. (LOWER) (NOT AVAILABLE)

51350-HB9-000

Unavailable

JOINT, BALL (UPPER) This part replaces 51355-HB9-004.

51355-HB9-671

Unavailable

JOINT, BALL (UPPER)

51355-HB9-671

Unavailable

ARM ASSY., L. FR. (LOWER) (NOT AVAILABLE)

51360-HB9-000

Unavailable

ARM ASSY., R. FR. (UPPER) (NOT AVAILABLE)

51370-HB9-000

Unavailable

ARM ASSY., L. FR. (UPPER) (NOT AVAILABLE)

51380-HB9-000

Unavailable

BUSH, PIVOT THRUST

51391-HB9-000

Unavailable

COLLAR, FR. ARM PIVOT

51394-HB9-000

Unavailable

COLLAR, CHAMBER SETTING (NOT AVAILABLE)

51399-HB9-000

Unavailable

NUT, U (10MM)

90304-GE8-003

$3.67

NUT, U (14MM)

90305-GE8-003

$3.86

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

DUST SEAL (24X36X6)

90654-HB9-003

Unavailable

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (10X75)

96400-10075-08

Unavailable
