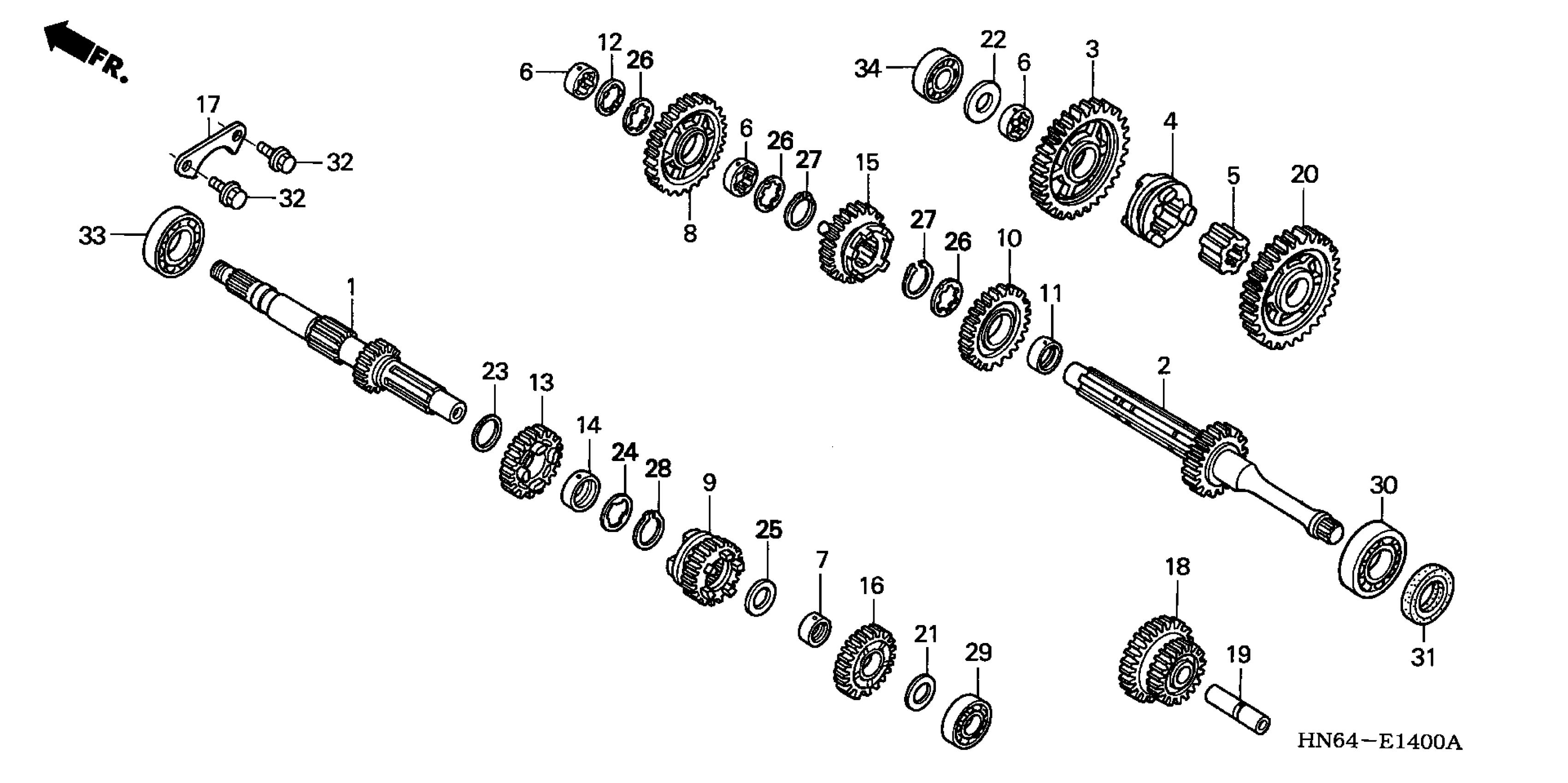

Honda TRX250EXA (08) SPORTRAX 250EX, USA, VIN# 1HFTE270-84700001 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (15T/13T)

23211-HN6-A00

$141.54

COUNTERSHAFT (21T)

23221-HN6-A00

$141.49

GEAR, COUNTERSHAFT LOW (37T)

23411-HN6-000

$66.34

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HN6-A30

$62.11

COLLAR, SPLINE

23413-HB3-000

$65.95

BUSH, SPLINE (22X8.5)

23414-HB3-000

$19.64

BUSH (15MM)

23415-HB3-000

$16.80

GEAR, COUNTERSHAFT SECOND (29T)

23431-HN6-000

$67.25

GEAR, MAINSHAFT THIRD (18T)

23441-HN6-A30

$74.30

GEAR, COUNTERSHAFT THIRD (26T)

23451-HN6-000

$58.56

BUSH (22MM)

23452-HB3-000

$19.64

WASHER, LOCK

23456-KA3-000

$5.87

GEAR, MAINSHAFT FOURTH (23T)

23461-HN6-A30

$62.49

BUSH (20MM)

23462-HB3-000

$19.64

GEAR, COUNTERSHAFT FOURTH (26T)

23471-HN6-000

$65.03

GEAR, MAINSHAFT FIFTH (23T)

23481-HN6-000

$56.31

PLATE, BEARING SETTING

23521-HM8-000

$5.72

PLATE, BEARING SETTING

23521-HM8-B40

$3.57

GEAR, REVERSE IDLE (32T/16T)

23721-HN6-000

$67.05

SHAFT, REVERSE IDLE

23731-HB3-000

$24.61

GEAR, COUNTERSHAFT REVERSE (31T)

23751-HN6-A30

$68.08

WASHER, THRUST (15MM)

90451-HN6-A00

$10.61

WASHER, THRUST (15MM)

90452-HN6-A00

$5.54

WASHER, THRUST (20MM)

90454-107-000

$1.80

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

WASHER, SPLINE (22MM)

90464-KE8-000

$4.20

CIRCLIP (22MM)

90601-329-000

$2.67

SET-RING (20MM)

90605-200-000

$2.92

BEARING, RADIAL BALL SPECIAL (6202U)

91001-HN6-003

$12.86

BEARING, RADIAL BALL (S6205) (KOYO)

91002-HE0-003

$16.79

OIL SEAL (25X41.25X6)

91202-898-003

$8.71

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

BEARING, RADIAL BALL (6202U)

96140-62020

$13.60

BEARING, RADIAL BALL (6202U) This part replaces 96140-62020-00.

96140-62020

$13.60
