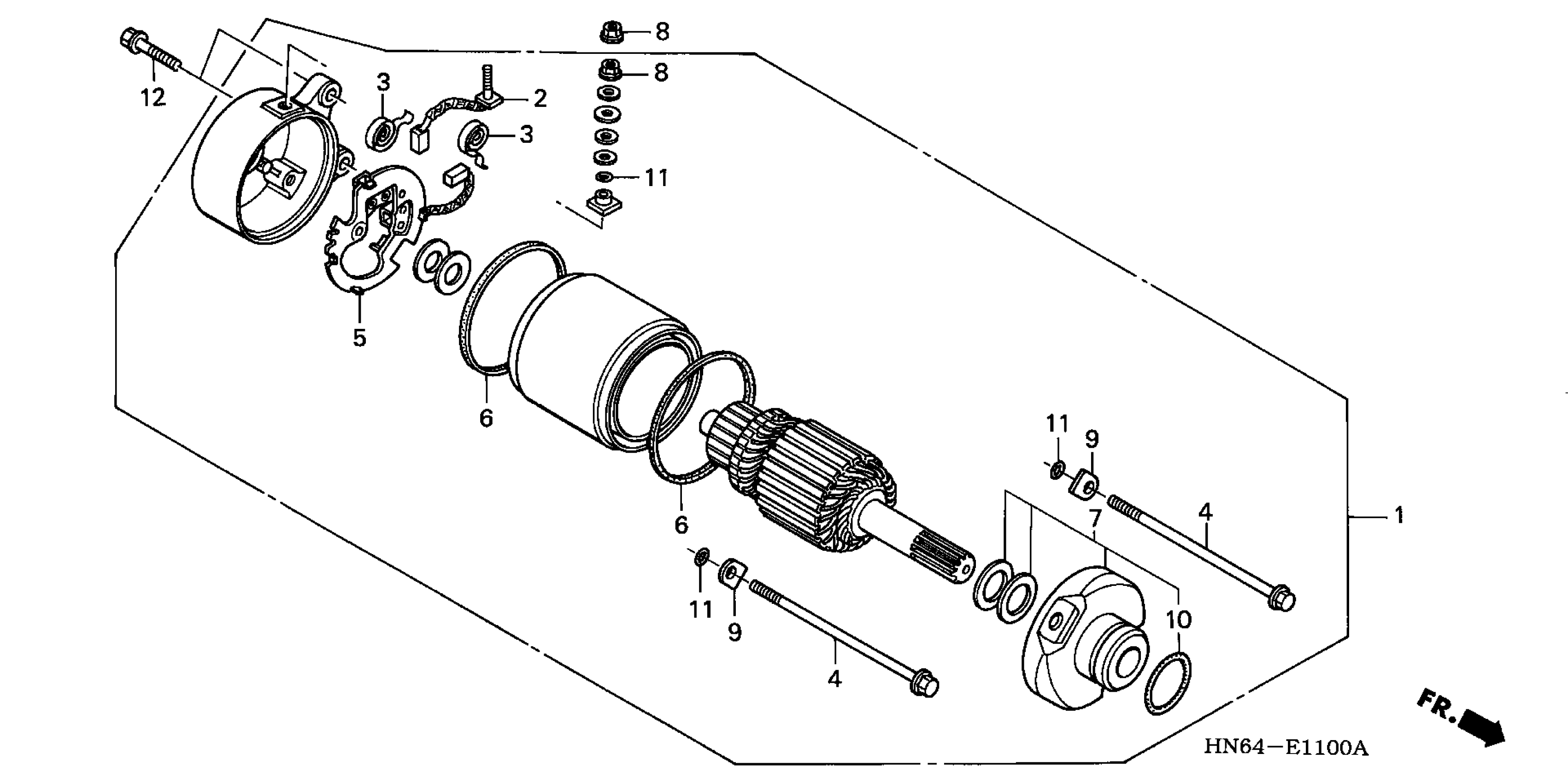

Honda TRX250EXA (08) SPORTRAX 250EX, USA, VIN# 1HFTE270-84700001 STARTER MOTOR Diagram

STARTER MOTOR ASSY. This part replaces 31200-HM8-A41.

31200-HM8-003

$456.62

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-KL8-711

$4.19

HOLDER SET, BRUSH

31206-MN4-008

$20.95

RING

31207-KS5-901

$2.90

BRACKET, FR.

31210-HC4-003

$61.20

NUT-WASHER (6MM)

90071-MB0-000

$1.88

WASHER, STEEL PLATE

90122-MN4-008

$2.80

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

BOLT, FLANGE (6X25)

95801-06025-00

$0.99
