Description

Price

1

SHOE SET, BRAKE (ASK)

06430-HM8-A00

$36.82

1

SHOE SET, BRAKE (ASK) This part replaces 06430-HM8-A10.

06430-HM8-A00

$36.82

2

RING, DAMPER

42624-HB3-000

$18.51

3

PANEL SET, RR. BRAKE

43010-HM8-000

$256.43

4

CAM, RR. BRAKE

43141-KB4-003

$36.47

5

INDICATOR, RR. BRAKE

43145-HM8-000

$4.01

6

SPRING, BRAKE SHOE

43151-329-000

$2.75

7

ARM, RR. BRAKE

43410-HM8-000

$18.67

8

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

9

SPRING A, BRAKE ROD

95014-73100

$1.49

10

DRUM ASSY., RR. BRAKE

43620-HN6-000

$300.34

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

SPRING, BRAKE ARM RETURN

45411-GB4-680

$4.53

13

BOLT, SEALING (8MM)

90109-371-000

$2.58

14

GASKET (8MM)

90471-580-000

$2.92

15

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$43.95

16

DUST SEAL (14X20X4) (NOK)

91208-HF7-005

$5.80

17

DUST SEAL (43X58X10)

91252-HM8-003

$13.05

18

O-RING (166X2.6)

91355-HM8-003

$6.45

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

CIRCLIP, INNER (58MM)

94520-58000

$3.13

21

JOINT B, BRAKE ARM

95015-32001

$1.49

22

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

23

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

23

BOLT, FLANGE (8X25) This part replaces 95801-08025-00.

95701-08025-00

$1.79

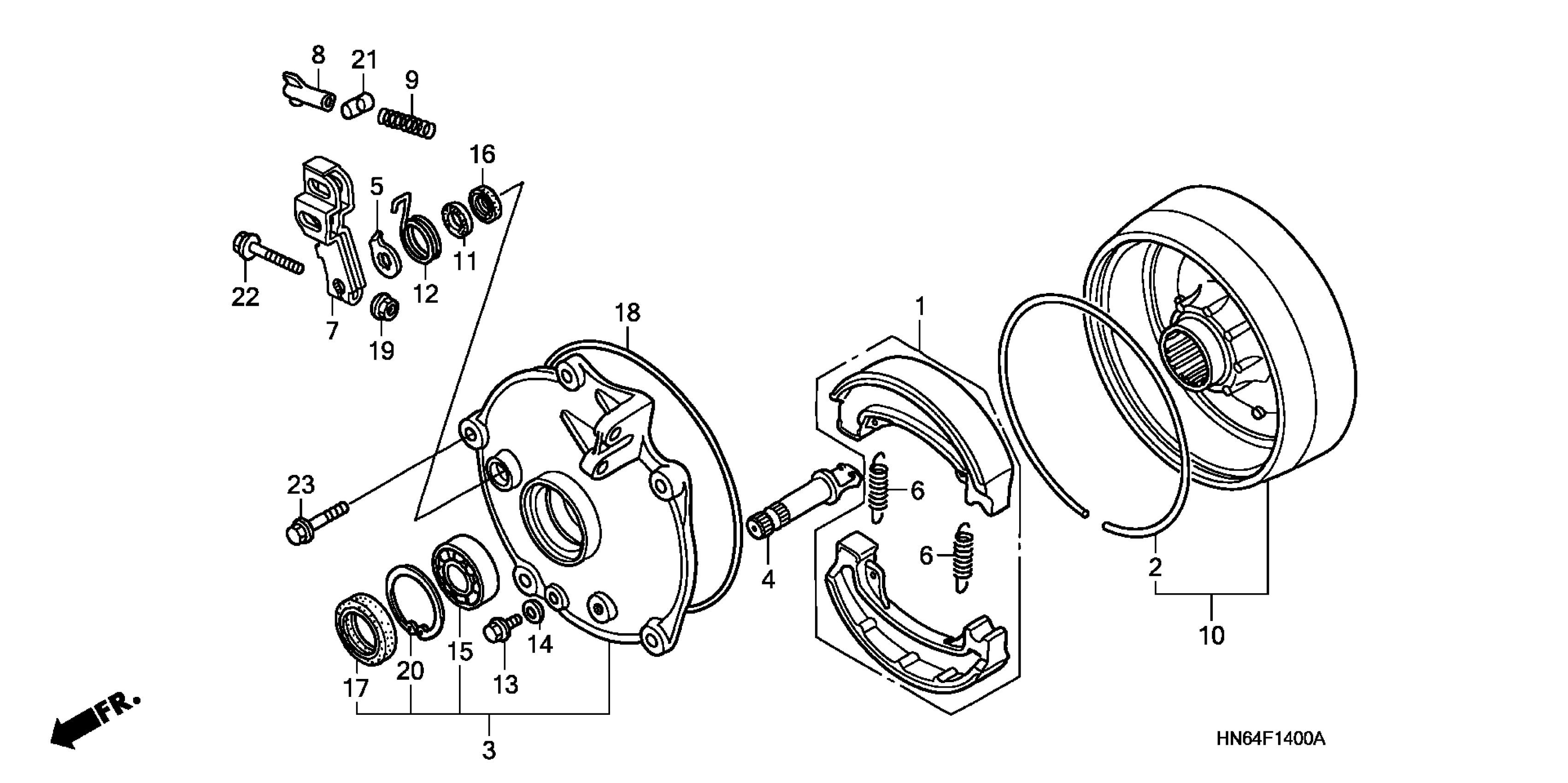

Honda TRX250EXA (08) SPORTRAX 250EX, USA, VIN# 1HFTE270-84700001 REAR BRAKE DRUM Diagram

SHOE SET, BRAKE (ASK)

SHOE SET, BRAKE (ASK) This part replaces 06430-HM8-A10.

RING, DAMPER

PANEL SET, RR. BRAKE

CAM, RR. BRAKE

INDICATOR, RR. BRAKE

SPRING, BRAKE SHOE

ARM, RR. BRAKE

NUT, BRAKE ADJUSTING

SPRING A, BRAKE ROD

DRUM ASSY., RR. BRAKE

DUST SEAL, BRAKE CAM

SPRING, BRAKE ARM RETURN

BOLT, SEALING (8MM)

GASKET (8MM)

BEARING, RADIAL BALL (32X58X13)

DUST SEAL (14X20X4) (NOK)

DUST SEAL (43X58X10)

O-RING (166X2.6)

NUT, FLANGE (6MM)

CIRCLIP, INNER (58MM)

JOINT B, BRAKE ARM

BOLT, FLANGE (6X30)

BOLT, FLANGE (8X25)

BOLT, FLANGE (8X25) This part replaces 95801-08025-00.
