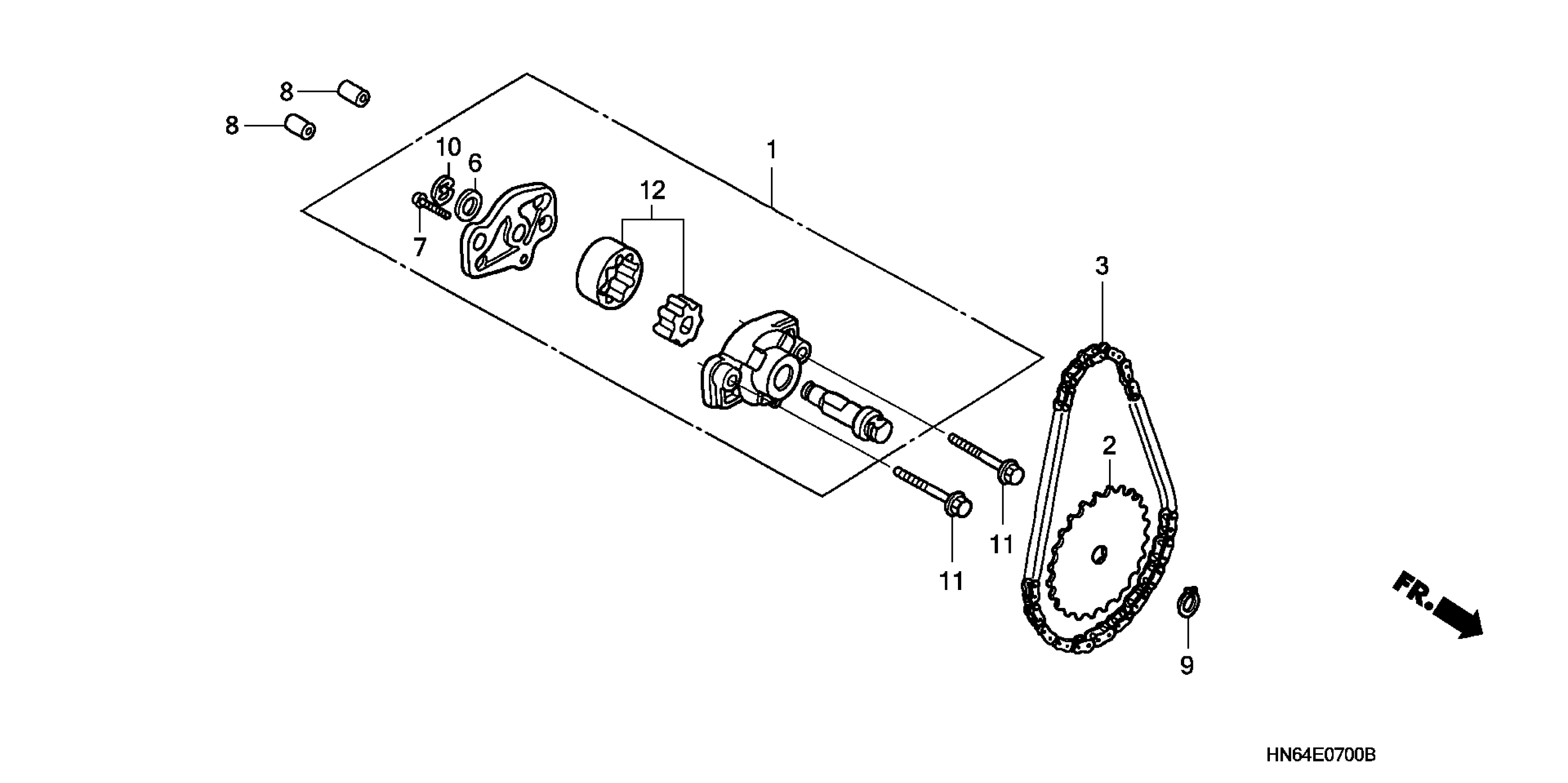

Honda TRX250EXA (08) SPORTRAX 250EX, USA, VIN# 1HFTE270-84700001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-HM8-000

$63.89

SPROCKET, OIL PUMP DRIVEN (22T)

15133-HM8-000

$17.79

CHAIN, OIL PUMP (46L)

15141-HM8-003

$16.81

ROTOR SET, OIL PUMP This part replaces 15331-958-000.

15021-958-000

$35.25

ROTOR SET, OIL PUMP This part replaces 15332-958-000.

15021-958-000

$35.25

WASHER (6.1MM)

90435-HB3-000

$2.92

SCREW, PAN (3X12)

93500-03012-0A

$1.49

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

E-RING (5MM)

94540-05018

$2.67

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

ROTOR SET, OIL PUMP

15021-958-000

$35.25
