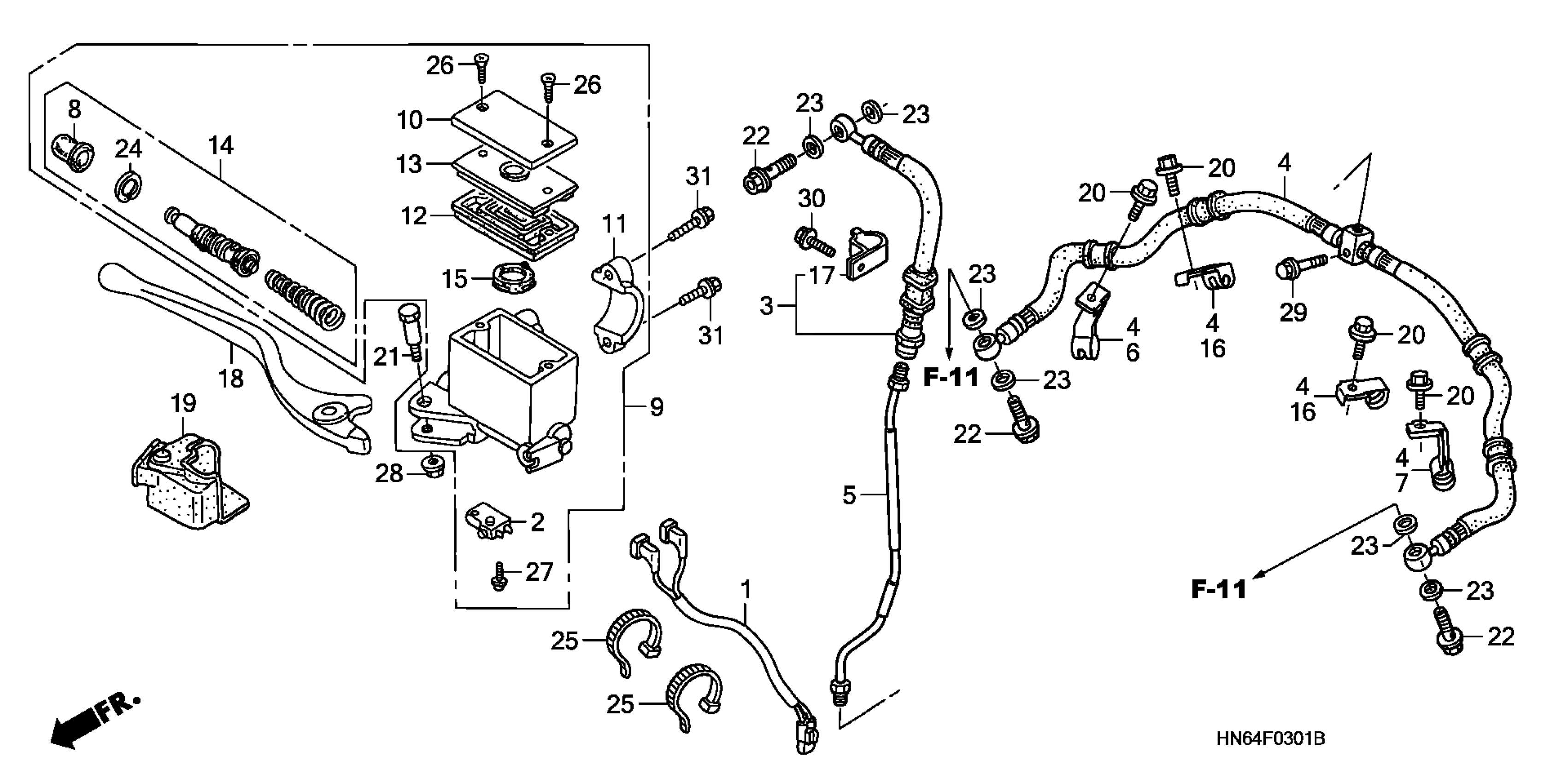

Honda TRX250EXA (08) SPORTRAX 250EX, USA, VIN# 1HFTE270-84700001 FRONT BRAKE MASTER CYLINDER ('06-) Diagram

#

Description
Price

2

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

2

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

3

HOSE A, FR. BRAKE

45126-HN6-A31

$15.77

4

HOSE B, FR. BRAKE

45127-HN6-A31

$46.69

5

PIPE, FR. BRAKE

45128-HN6-A30

$15.15

6

CLAMP A, R. FR. BRAKE HOSE

45462-HN6-000

$1.62

7

CLAMP A, L. FR. BRAKE HOSE

45472-HN6-000

$1.62

8

BOOT

45504-410-003

$12.16

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-HM3-901

$194.52

10

CAP, MASTER CYLINDER

45513-GW3-851

$21.52

11

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

12

DIAPHRAGM

45520-MG7-006

$10.61

13

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

14

MASTER CYLINDER SET

45530-471-831

$40.86

15

SEPARATOR

46666-HB9-006

$9.38

16

CLAMP B, FR. BRAKE HOSE

51208-HM8-000

$2.30

17

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

18

LEVER, R. HANDLEBAR

53175-HM3-000

$25.02

19

COVER, R. HANDLE LEVER

53176-HC0-671

$8.43

20

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

21

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

22

BOLT, OIL (10X22)

90145-MS9-612

$7.54

23

WASHER, OIL BOLT

90545-300-000

$3.99

24

CIRCLIP

90651-MA5-671

$2.66

26

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

27

SCREW-WASHER (4X14)

93893-04014-07

$1.49

27

SCREW-WASHER (4X14) This part replaces 93893-04014-17.

93893-04014-07

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

30

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

31

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
