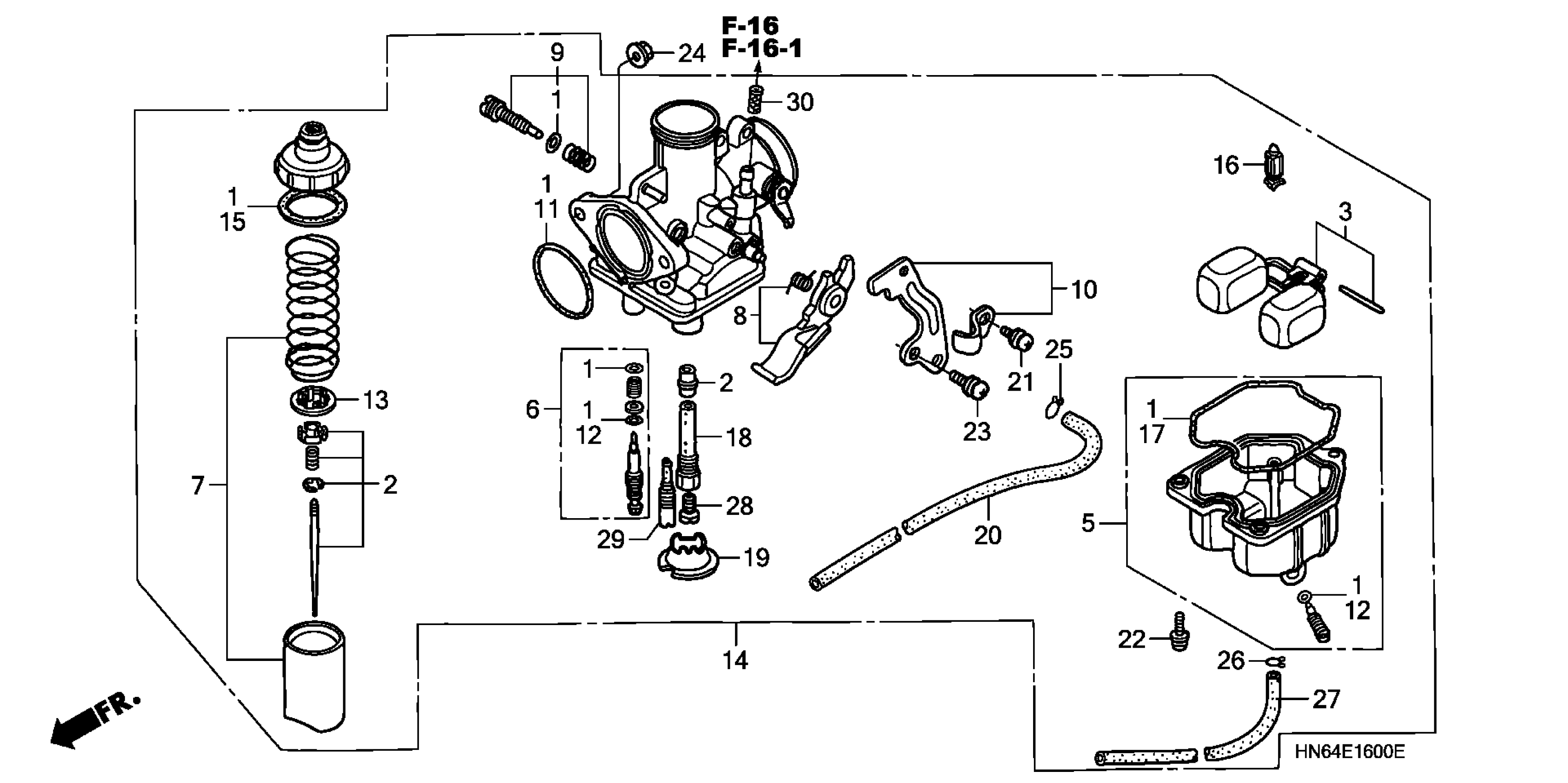

Honda TRX250EXA (08) SPORTRAX 250EX, USA, VIN# 1HFTE270-84700001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HM8-000

$20.58

2

NEEDLE SET, JET

16012-HN6-A31

$17.58

3

FLOAT SET

16013-KRP-981

$7.70

5

CHAMBER SET, FLOAT

16015-HN6-003

$113.91

6

SCREW SET A

16016-HN6-A31

$24.04

7

VALVE SET, THROTTLE

16022-HN6-A31

$29.71

8

LEVER SET, CHOKE

16025-HM8-B01

$18.71

9

SCREW SET B

16028-KEB-G01

$10.71

9

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$10.71

10

PLATE SET, STAY

16035-HM8-000

$38.24

11

O-RING (2.4X29)

16075-GHB-B70

$7.47

12

O-RING (1.3X4.3)

16075-GHB-640

$2.69

13

PLATE B, VALVE

16092-HM8-A01

$5.19

14

CARBURETOR ASSY. (PDC1G B) This part replaces 16100-HN6-A31.

16100-HN6-A33

$169.62

15

GASKET, TOP

16110-KN4-651

$7.10

16

VALVE, FLOAT

16155-413-751

$29.84

17

GASKET, FLOAT CHAMBER

16163-KCS-920

$10.93

18

HOLDER, NEEDLE JET

16165-HM8-000

$29.75

19

HOLDER, JET

16168-382-014

$8.03

20

TUBE

16199-HN6-A31

$13.79

21

SCREW-WASHER (4X8)

93892-04008-08

$1.13

21

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.13

22

SCREW-WASHER (4X16)

93892-04016-08

$0.90

22

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.90

23

SCREW-WASHER (5X12)

93892-05012-08

$1.13

23

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.13

24

NUT, FLANGE (6MM)

94050-06000

$0.60

25

CLIP, TUBE (B8)

95002-02089

$0.96

26

CLIP, TUBE (B6.5)

95002-02659

$1.01

27

BULK HOSE, VACUUM (3.5X1000) (3.5X290)

95005-35001-50M

$13.55

28

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.62

28

JET, MAIN (#95)

99101-GHB-0950

$8.08

29

JET, SLOW (#42)

99103-KPT-0420

$9.93

30

SCREEN, FUEL STRAINER

16176-HM8-B01

$27.75
