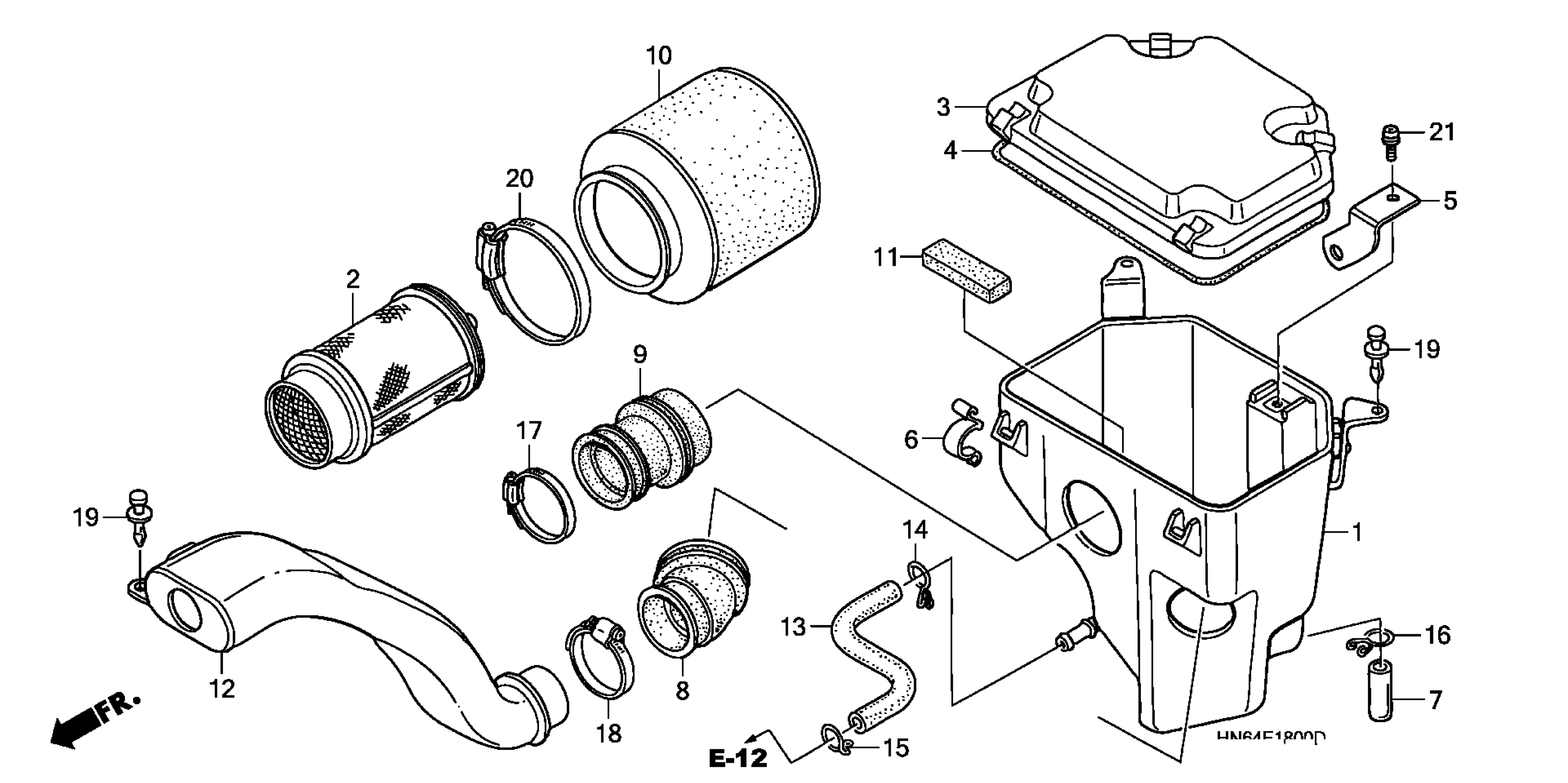

Honda TRX250EXA (08) SPORTRAX 250EX, USA, VIN# 1HFTE270-84700001 AIR CLEANER Diagram

HOUSING, AIR CLEANER

17210-HM8-000

$55.10

BODY, AIR CLEANER

17211-HN6-000

$30.49

LID, AIR CLEANER HOUSING

17217-HM8-000

$17.37

SEAL, AIR CLEANER COVER

17219-HM8-000

$3.01

STAY, AIR CLEANER ELEMENT

17221-HM8-000

$7.18

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.88

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.87

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$7.07

SEAL, AIR CLEANER DUCT

17252-HF1-670

$9.43

TUBE, AIR CLEANER CONNECTING

17253-HM8-000

$25.03

AIR CLEANER

17254-HM8-000

$24.99

COVER, DUST

17256-HM8-680

$4.12

DUCT, SNORKEL

17259-HM8-B40

$45.92

TUBE, BREATHER

17366-HM8-680

$9.16

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

BAND, CONNECTING TUBE (48)

90648-HM8-A60

$6.10

BAND, CONNECTING TUBE (54)

90654-HM8-A60

$7.29

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

BAND, CONNECTING TUBE (64)

90664-HM8-A60

$5.94

SCREW-WASHER (6X12)

93891-06012-08

$1.49
