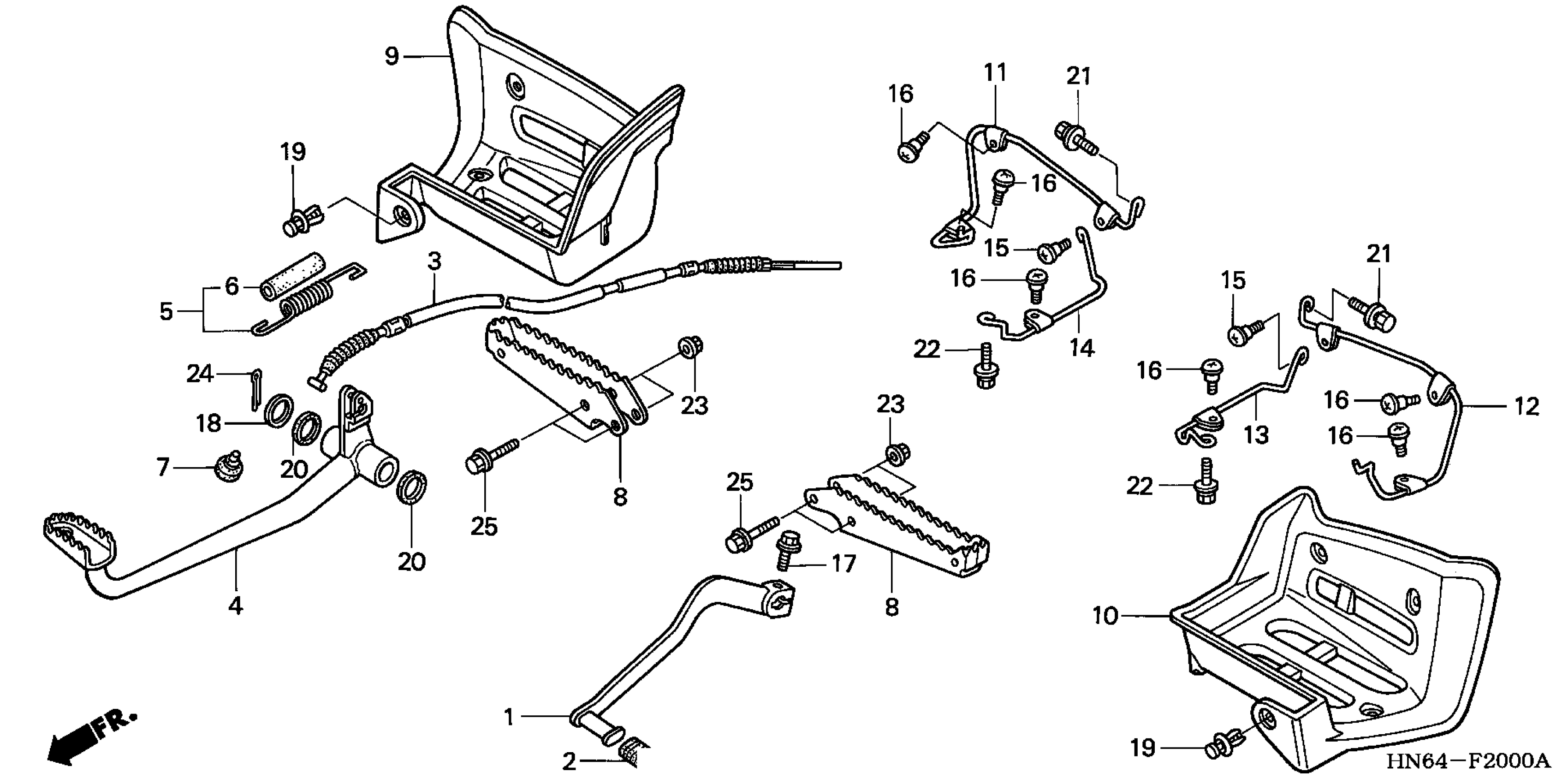

Honda TRX250EXA (05) SPORTRAX 250EX, USA, VIN# 1HFTE270-54400001 TO 1HFTE270-54499999 PEDAL + STEP + SPLASH GUARD ('01-'05) Diagram

PEDAL, GEARSHIFT

24701-HM8-000

$57.33

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

CABLE, FOOT BRAKE

43470-HM8-000

$8.76

PEDAL, BRAKE

46500-HM8-000

Unavailable

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$11.69

TUBE, BRAKE PEDAL SPRING

46515-HM7-000

$2.13

RUBBER, STOPPER

47117-196-000

$2.67

STEP

50610-HM8-000

$17.17

SPLASH GUARD, R. RR. *NH1* (BLACK) | Fighting red R134;

80121-HN6-000ZA

$43.58

SPLASH GUARD, L. RR. *NH1* (BLACK) | Fighting red R134;

80122-HN6-000ZA

$43.58

STAY, R. RR. SPLASH GUARD

80123-HN6-000

$38.57

STAY, L. RR. SPLASH GUARD

80124-HN6-000

$29.01

SUB-STAY, L. RR. SPLASH GUARD

80127-HN6-000

$29.01

SUB-STAY, R. RR. SPLASH GUARD

80128-HN6-000

$29.01

SCREW, SPLASH GUARD (6X20)

90103-HB9-740

$4.24

SCREW, SPLASH GUARD

90103-HC4-770

$2.23

BOLT, FLANGE (6X20)

90118-968-000

$4.24

WASHER (17.5MM)

90512-303-000

$1.77

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

BOLT-WASHER (6X16)

93404-06016-07

$1.55

BOLT-WASHER (6X20)

93404-06020-00

$1.55

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
