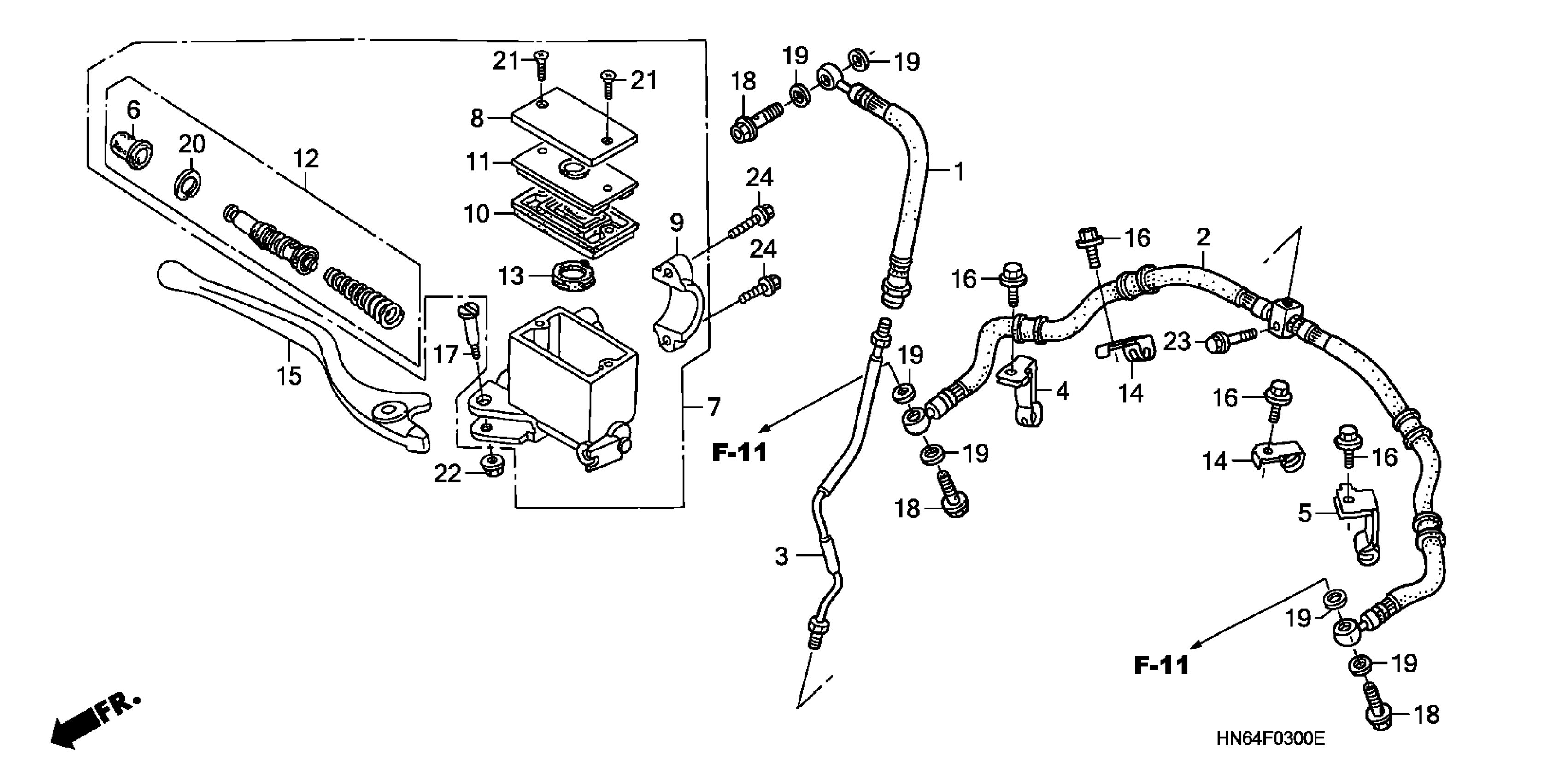

Honda TRX250EXA (05) SPORTRAX 250EX, USA, VIN# 1HFTE270-54400001 TO 1HFTE270-54499999 FRONT BRAKE MASTER CYLINDER ('01-'05) Diagram

HOSE A, FR. BRAKE

45126-HM8-A01

$25.20

HOSE B, FR. BRAKE

45127-HN6-003

Unavailable

PIPE, FR. BRAKE

45128-HM8-000

Unavailable

CLAMP A, R. FR. BRAKE HOSE

45462-HN6-000

$1.62

CLAMP A, L. FR. BRAKE HOSE

45472-HN6-000

$1.62

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR.

45510-HN1-006

$87.15

CAP, MASTER CYLINDER

45513-GW3-851

$21.52

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-471-831

$40.86

SEPARATOR

46666-HB9-006

$9.38

CLAMP B, FR. BRAKE HOSE

51208-HM8-000

$2.30

LEVER, R. HANDLEBAR

53175-HM3-000

$25.02

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
