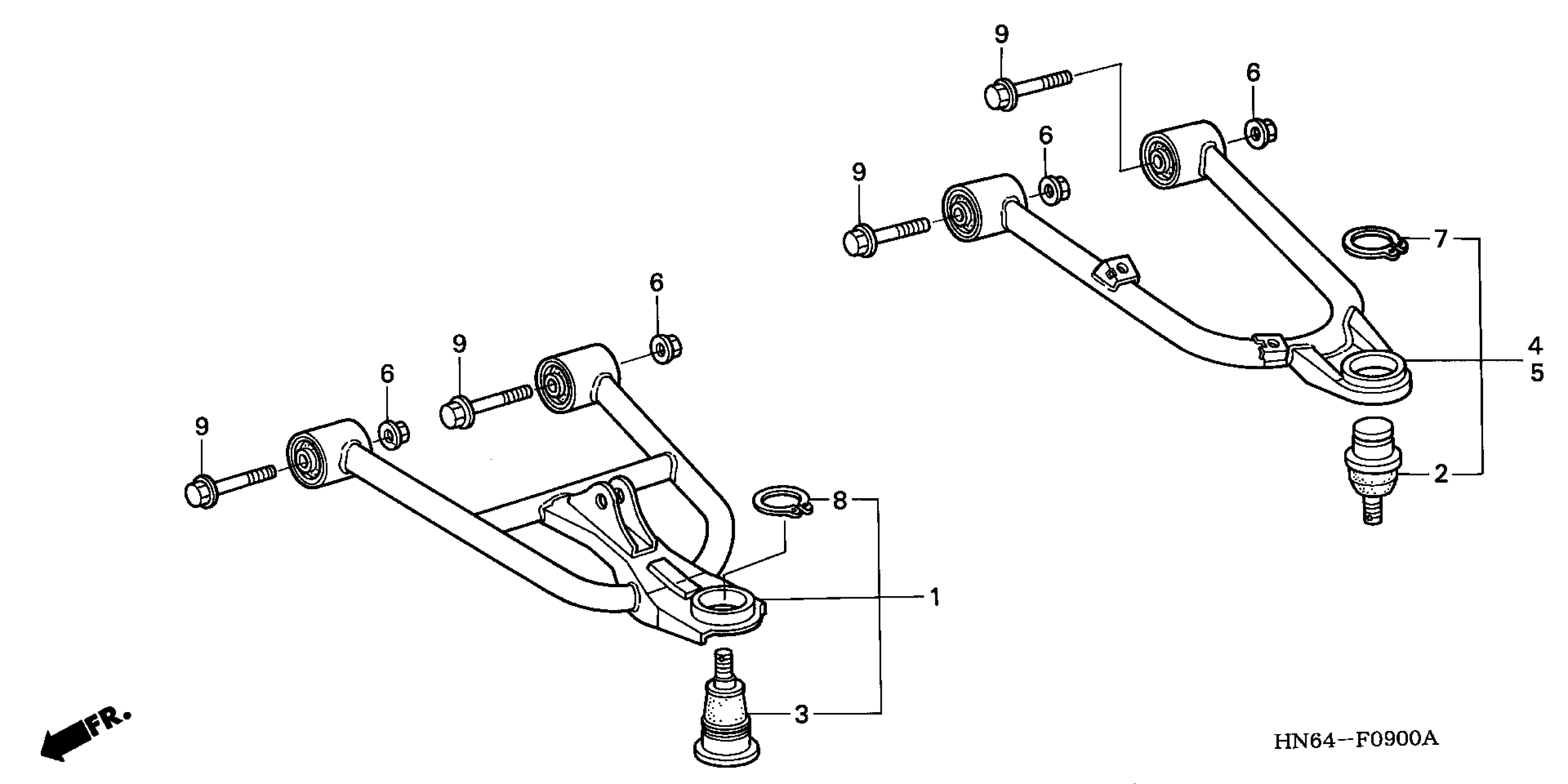

Honda TRX250EXA (05) SPORTRAX 250EX, USA, VIN# 1HFTE270-54400001 TO 1HFTE270-54499999 FRONT ARM ('01-'05) Diagram

#

Description

Price

1

ARM ASSY., FR. (LOWER) This part replaces 51350-HN6-A20.

51350-HN6-A30

$447.89

2

JOINT A, ARM BALL This part replaces 51355-HM5-A81.

51355-HP5-601

$19.41

2

JOINT A, ARM BALL

51355-HP5-601

$19.41

3

JOINT A, ARM BALL

51355-HN6-005

$74.79

4

ARM ASSY., R. (UPPER) This part replaces 51370-HN6-A20.

51370-HN6-A50

$231.09

5

ARM ASSY., L. (UPPER)

51380-HN6-A20

$83.48

6

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

7

CIRCLIP (OUTER) (32MM)

94514-32000

$1.49

8

CIRCLIP (OUTER) (40MM)

94514-40000

$2.03

9

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

9

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
