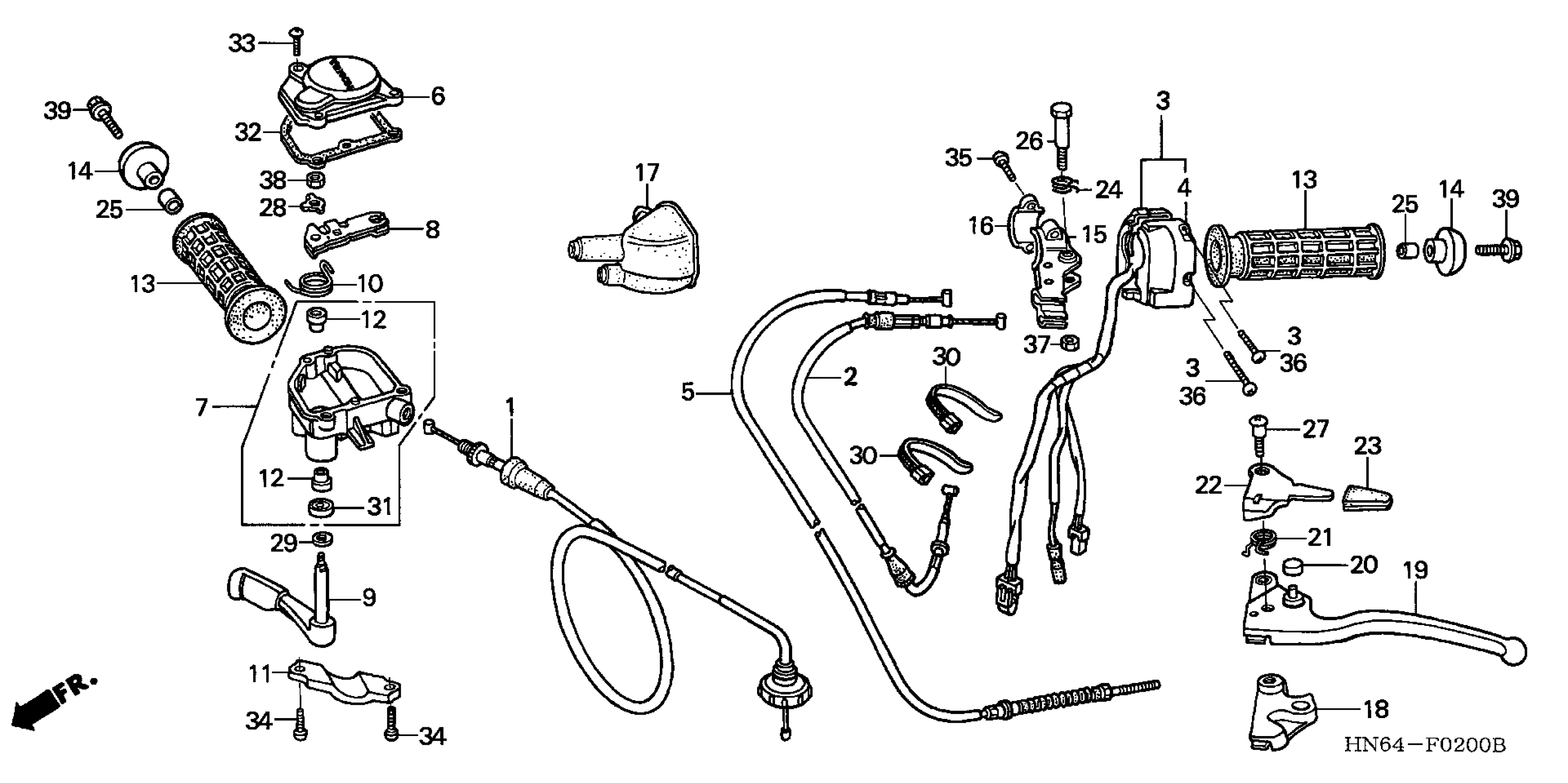

Honda TRX250EXA (04) SPORTRAX 250EX, USA, VIN# 478TE270-44300001 TO 478TE270-44399999 HANDLE LEVERS + SWITCHES + CABLES ('01-'05) Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HM8-305

$56.99

2

CABLE, REVERSE ASSIST

22880-HM8-000

$11.48

3

SWITCH SET, LIGHTING & STARTER STOP

35020-HN6-003

Unavailable

4

COVER, SWITCH

35201-HB7-671

$13.47

5

CABLE, HAND BRAKE

43460-HM8-003

$16.00

6

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

7

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$50.26

8

ARM, THROTTLE

53144-HA0-010

$7.72

9

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

9

LEVER, THROTTLE

53145-HA0-770

$24.05

10

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

11

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

12

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

13

GRIP, HANDLE

53165-958-010

$13.38

14

GUARD, HANDLE END

53167-958-680

$6.40

15

BRACKET, BRAKE LEVER

53172-HN6-000

Unavailable

16

HOLDER, LEVER BRACKET

53173-958-000

$10.59

17

COVER, L. HANDLE LEVER

53177-HA0-680

$11.72

18

ARM, REVERSE ASSIST

53179-VM6-000

Unavailable

19

LEVER, RR. BRAKE

53180-HN6-000

Unavailable

20

CAP, REVERSE PIN

53187-VM6-000

$3.89

21

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

22

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$12.96

23

CAP, PARKING LEVER

53193-HA0-770

$6.16

24

SPRING, LEVER RETURN

53193-HF1-830

$6.28

25

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

26

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$9.20

27

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

28

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

29

WASHER (9X20)

90504-HA0-000

$2.28

30

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

31

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

31

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

32

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

33

SCREW, PAN (4X16)

93500-04016-0G

$1.49

34

SCREW, PAN (5X14)

93500-05014-0G

$3.67

35

SCREW, PAN (5X18)

93500-05018-0A

$1.49

36

SCREW, PAN (5X25)

93500-05025-0G

$1.49

37

NUT, HEX. (6MM)

94001-06070-0S

$1.49

38

NUT, HEX. (6MM)

94002-06000-0S

$1.49

39

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
