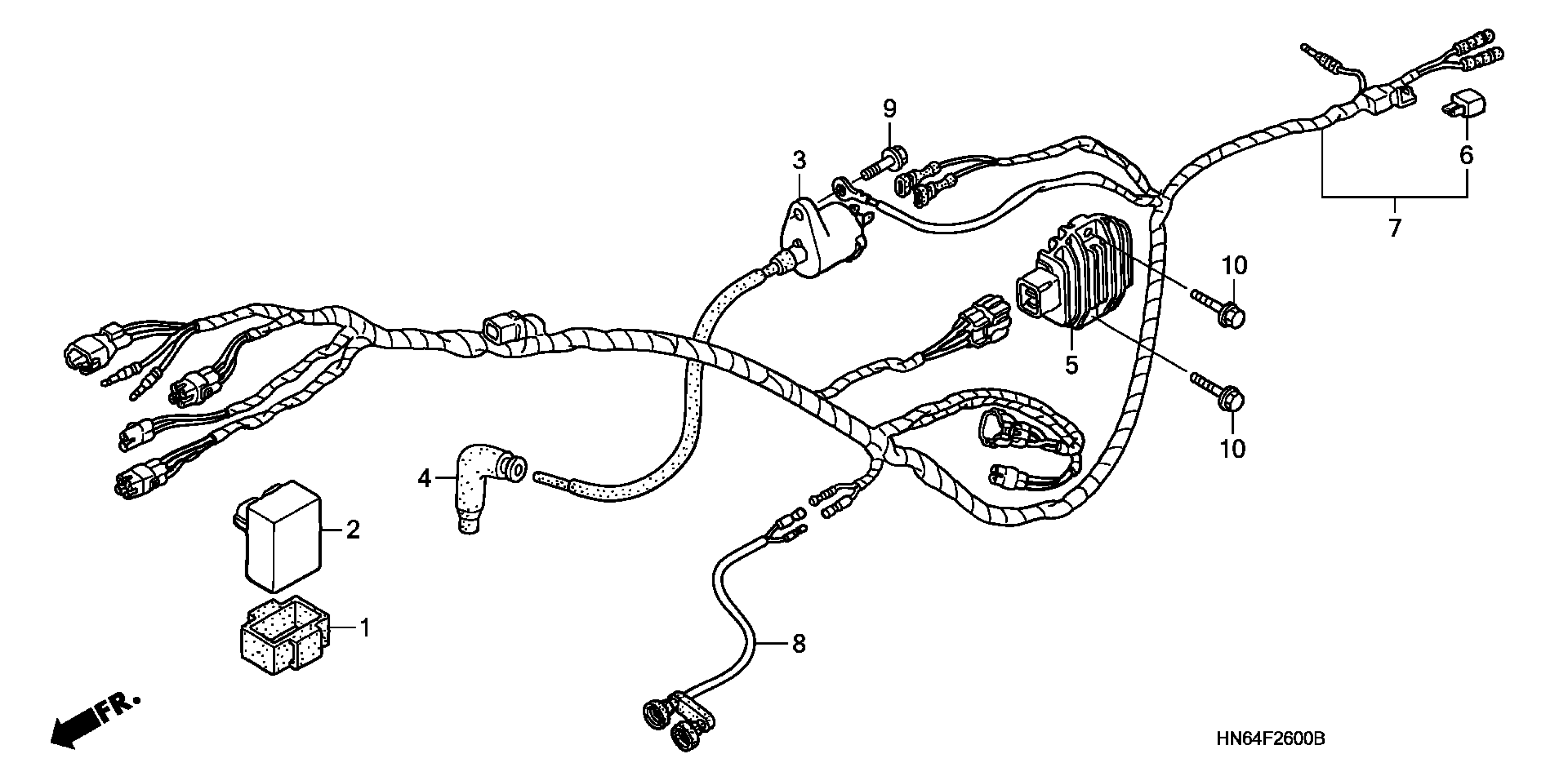

Honda TRX250EXA (02) SPORTRAX 250EX, USA, VIN# 478TE270-24100001 TO 478TE270-24199999 WIRE HARNESS ('01-'05) Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HB6-000.

30401-HB6-010

$3.56

2

MODULE, IGNITION CONTROL (CDI)

30410-HN6-000

$116.93

3

COIL, IGNITION

30510-HN6-000

$21.91

4

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$19.87

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$19.87

5

RECTIFIER ASSY., REGULATOR

31600-HM8-013

$65.75

6

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$27.27

7

WIRE HARNESS

32100-HN6-000

$185.51

8

SUB-WIRE, NEUTRAL & REVERSE SWITCH

32120-HM8-A31

Unavailable

9

BOLT, FLANGE (5X22)

90112-GK8-010

$2.62

10

BOLT, FLANGE (6X20)

95701-06020-00

$1.78
