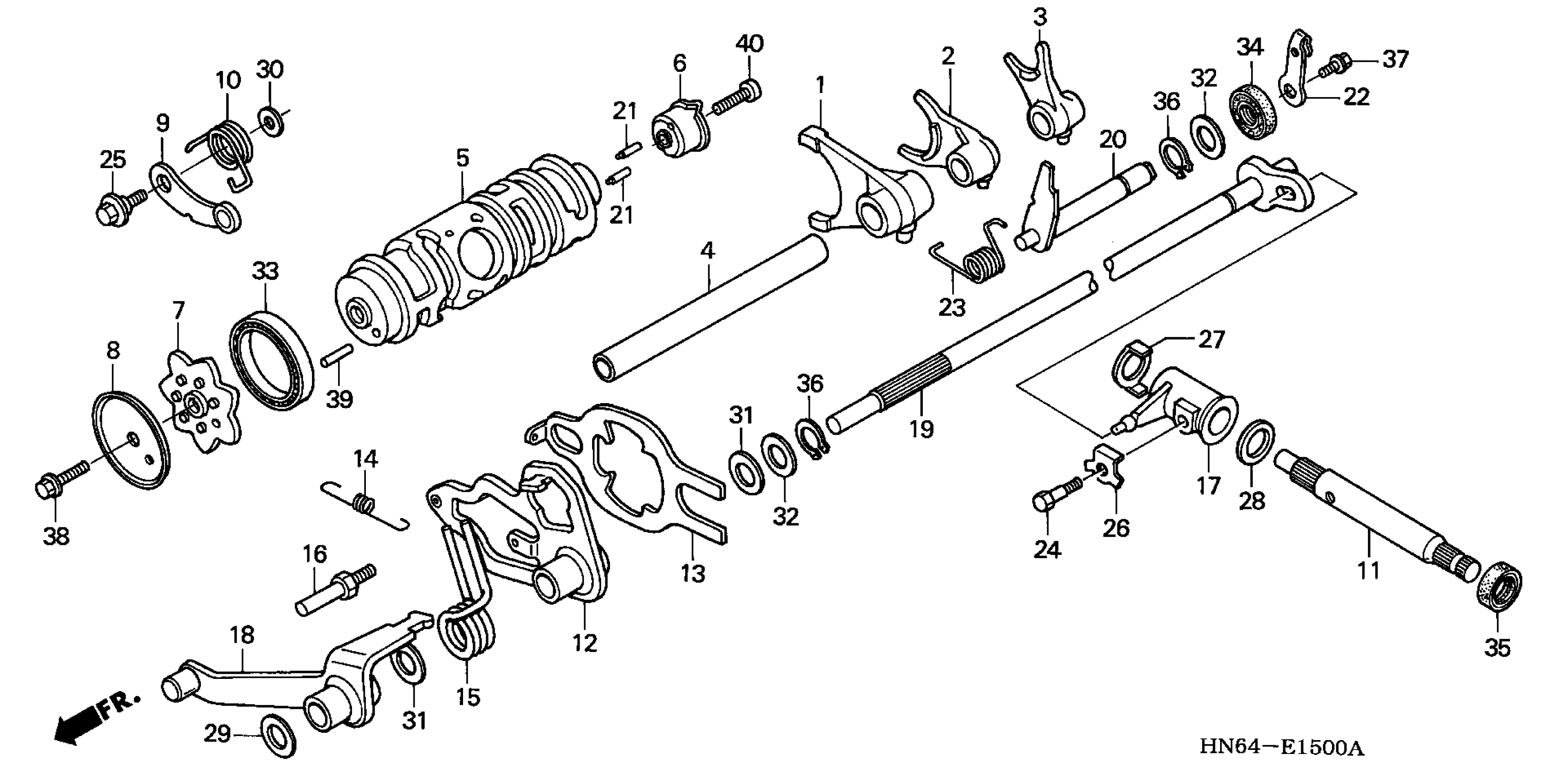

Honda TRX250EXA (02) SPORTRAX 250EX, USA, VIN# 478TE270-24100001 TO 478TE270-24199999 GEARSHIFT DRUM ('01-'02) Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT

24211-HN6-000

$59.25

2

FORK, CENTER GEARSHIFT

24212-HN6-000

$59.25

3

SWINGARM, GEARSHIFT

24213-HN6-000

$59.25

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HF1-670

$20.13

5

DRUM, GEARSHIFT

24301-HM8-000

Unavailable

6

ROTOR, NEUTRAL SWITCH

24314-HA0-000

Unavailable

7

SHIFTER, DRUM

24321-HB3-030

Unavailable

8

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

9

STOPPER, GEARSHIFT DRUM

24430-HM8-000

Unavailable

10

SPRING, SHIFT DRUM STOPPER

24435-HN6-000

Unavailable

11

SPINDLE, GEARSHIFT

24611-HM7-000

$88.55

12

ARM, GEARSHIFT MASTER

24620-HF1-670

$44.72

13

PLATE, GEARSHIFT This part replaces 24631-HB6-000.

24631-HM8-A40

$14.20

13

PLATE, GEARSHIFT

24631-HM8-A40

$14.20

14

SPRING, SHIFT ARM

24641-HB3-004

$2.90

15

SPRING, GEARSHIFT RETURN

24651-HN6-000

$6.90

16

PIN, RETURN SPRING

24652-KY4-900

$7.99

17

ARM A, GEARSHIFT

24661-HM8-000

Unavailable

18

ARM, SUB-GEARSHIFT SPINDLE

24670-HM8-000

Unavailable

19

SPINDLE, SUB-GEARSHIFT

24680-HM8-010

Unavailable

20

SHAFT, REVERSE STOPPER

24860-HM8-000

Unavailable

21

PIN, REVERSE STOPPER CAM

24863-HA0-000

Unavailable

22

LEVER, REVERSE STOPPER This part replaces 24865-HC4-000.

24865-HP0-A00

$4.94

22

LEVER, REVERSE STOPPER

24865-HP0-A00

$4.94

23

SPRING, REVERSE STOPPER

24867-HM8-000

Unavailable

24

BOLT, HEX. (8X18)

90009-HM7-000

Unavailable

25

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

26

WASHER, LOCK (8MM)

90406-422-000

$2.63

27

WASHER

90407-HM8-000

Unavailable

28

WASHER

90408-HM8-000

Unavailable

29

WASHER (10X21.5)

90413-GE0-000

$3.90

30

WASHER, DRUM STOPPER

90417-360-000

$1.74

31

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

32

WASHER, THRUST (12MM)

90452-166-600

$2.39

33

BEARING, RADIAL BALL (6807) (KOYO)

91010-HB7-003

$59.77

34

OIL SEAL (12X22X5)

91201-965-000

$4.06

34

OIL SEAL (12X22X5) (KOYO)

91202-HC4-005

$5.46

35

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

36

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

37

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

38

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

39

ROLLER (4X13.8)

96220-40138

$1.49

40

BOLT, SOCKET (6X16)

96600-06016-10

$4.07
