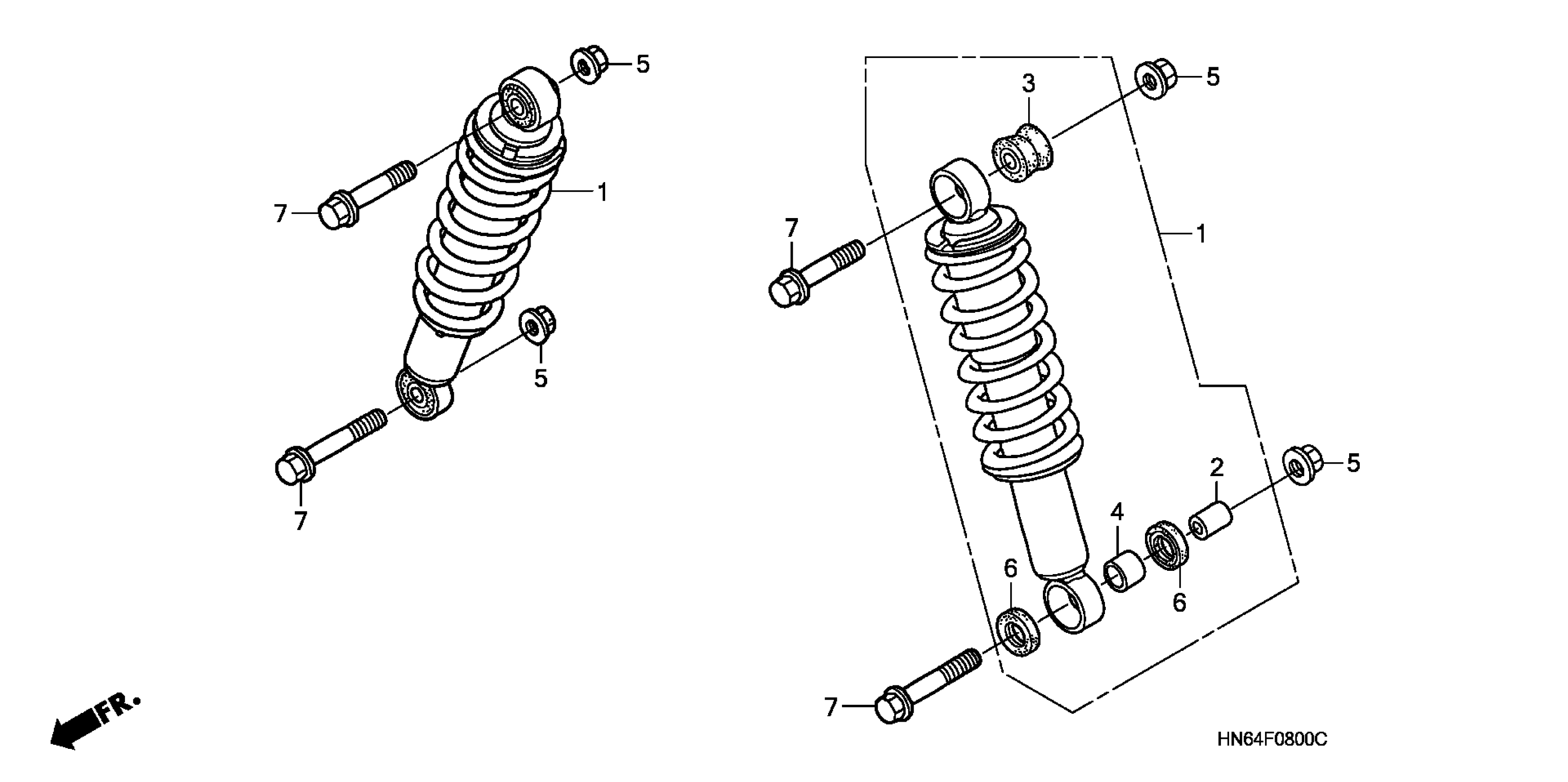

Honda TRX250EXA (02) SPORTRAX 250EX, USA, VIN# 478TE270-24100001 TO 478TE270-24199999 FRONT SHOCK ABSORBER Diagram

#

Description

Price

1

CUSHION ASSY., FR. This part replaces 51400-HN6-003.

51400-HN6-A00

Unavailable

1

CUSHION ASSY., FR.

51400-HN6-A00

Unavailable

2

COLLAR, DAMPER

51486-HN6-003

$3.02

3

BUSH, DAMPER

51489-HN6-003

$4.04

4

METAL, BUSH

52452-GW6-003

$11.69

5

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

6

DUST SEAL

91351-HN1-003

$3.71

7

BOLT, FLANGE (10X45)

96400-10045-00

$2.07
