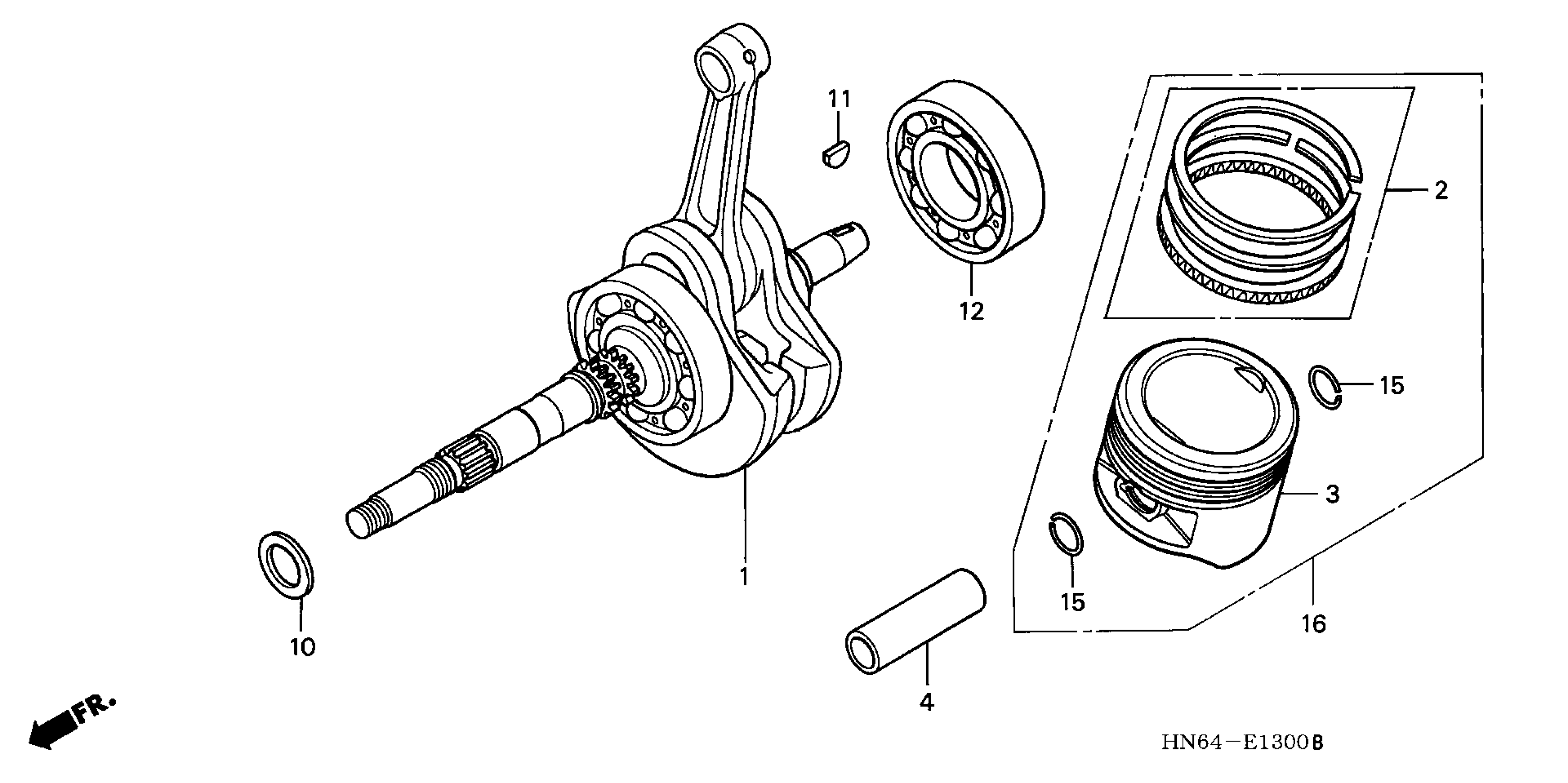

Honda TRX250EXA (02) SPORTRAX 250EX, USA, VIN# 478TE270-24100001 TO 478TE270-24199999 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-HN6-000.

13000-HM8-A41

$610.98

1

CRANKSHAFT This part replaces 13000-HM8-A40.

13000-HM8-A41

$610.98

2

RING SET, PISTON (STD)

13011-HM8-003

$47.31

2

RING SET, PISTON (O.S. 0.25) | (Optional).

13021-HM8-003

$47.31

2

RING SET, PISTON (O.S. 0.50) | (Optional).

13031-HM8-003

$47.31

2

RING SET, PISTON (O.S. 0.75) | (Optional).

13041-HM8-003

$50.18

2

RING SET, PISTON (O.S. 1.00) | (Optional).

13051-HM8-003

$47.31

3

PISTON (STD)

13101-HN6-000

Unavailable

3

PISTON (OVER SIZE) (0.25) | (Optional).

13102-HN6-305

Unavailable

3

PISTON (OVER SIZE) (0.50) | (Optional).

13103-HN6-305

$66.52

3

PISTON (OVER SIZE) (0.75) | (Optional).

13104-HN6-305

Unavailable

3

PISTON (OS 1.00) | (Optional).

13105-HN6-305

Unavailable

4

PIN, PISTON This part replaces 13111-422-000.

13111-425-000

$21.65

4

PIN, PISTON

13111-425-000

$21.65

10

WASHER, THRUST (24MM)

90402-HA5-000

$3.67

11

KEY, WOODRUFF (4MM)

90741-KFB-000

$2.92

12

BEARING, BALL (6207C3)

91001-HM8-003

$27.85

15

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
