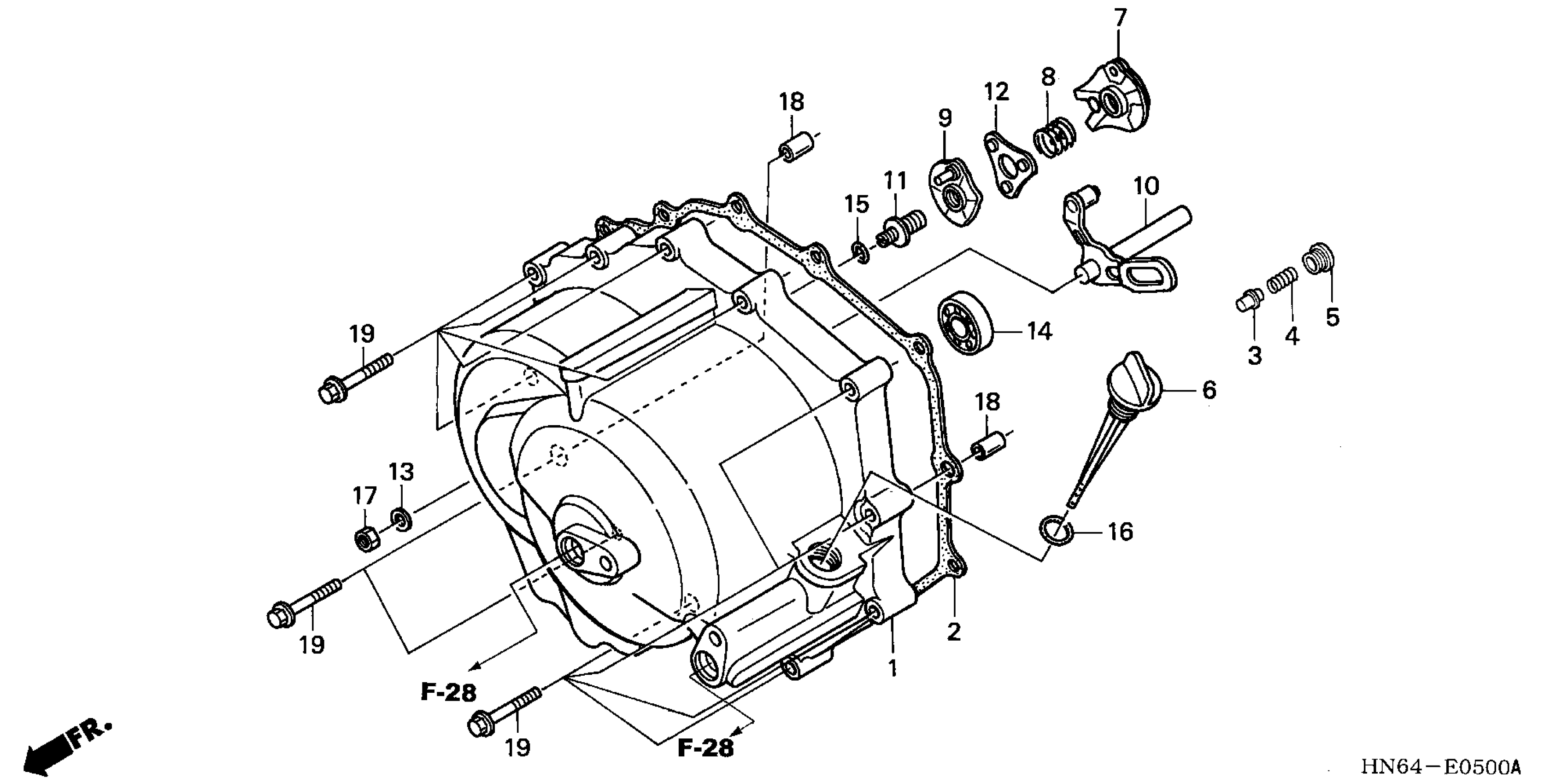

Honda TRX250EXA (01) SPORTRAX 250EX, USA, VIN# 478TE270-14000001 TO 478TE270-14015200 FRONT CRANKCASE COVER ('01-'05) Diagram

COVER, FR. CRANKCASE

11330-HN6-000

$202.47

GASKET, FR. CRANKCASE COVER

11394-HM8-000

$23.90

VALVE, RELIEF

15231-HM3-670

$11.49

SPRING, RELIEF VALVE

15232-HM3-670

$1.79

CAP, RELIEF VALVE

15235-HM3-670

$20.04

DIPSTICK, OIL

15651-HM8-000

$9.86

PLATE, CLUTCH CAM

22820-HN6-000

$15.00

SPRING, CAM PLATE SIDE

22825-HB3-003

$2.38

PLATE, CLUTCH LIFTER

22830-HB6-000

$19.44

SUB-LEVER, CLUTCH LIFTER

22840-HM8-000

$32.57

BOLT, CLUTCH ADJUSTING

22846-HB3-000

$5.80

RETAINER, BALL

22860-HB3-000

$7.47

WASHER (8MM)

90485-040-000

$1.63

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$20.57

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.75

O-RING (18X3) (ARAI)

91307-KF0-003

Unavailable

NUT, HEX. (8MM)

94030-08000

Unavailable

PIN, DOWEL (8X14)

94301-08140

$2.76

BOLT, FLANGE (6X40)

95701-06040-00

$1.88
