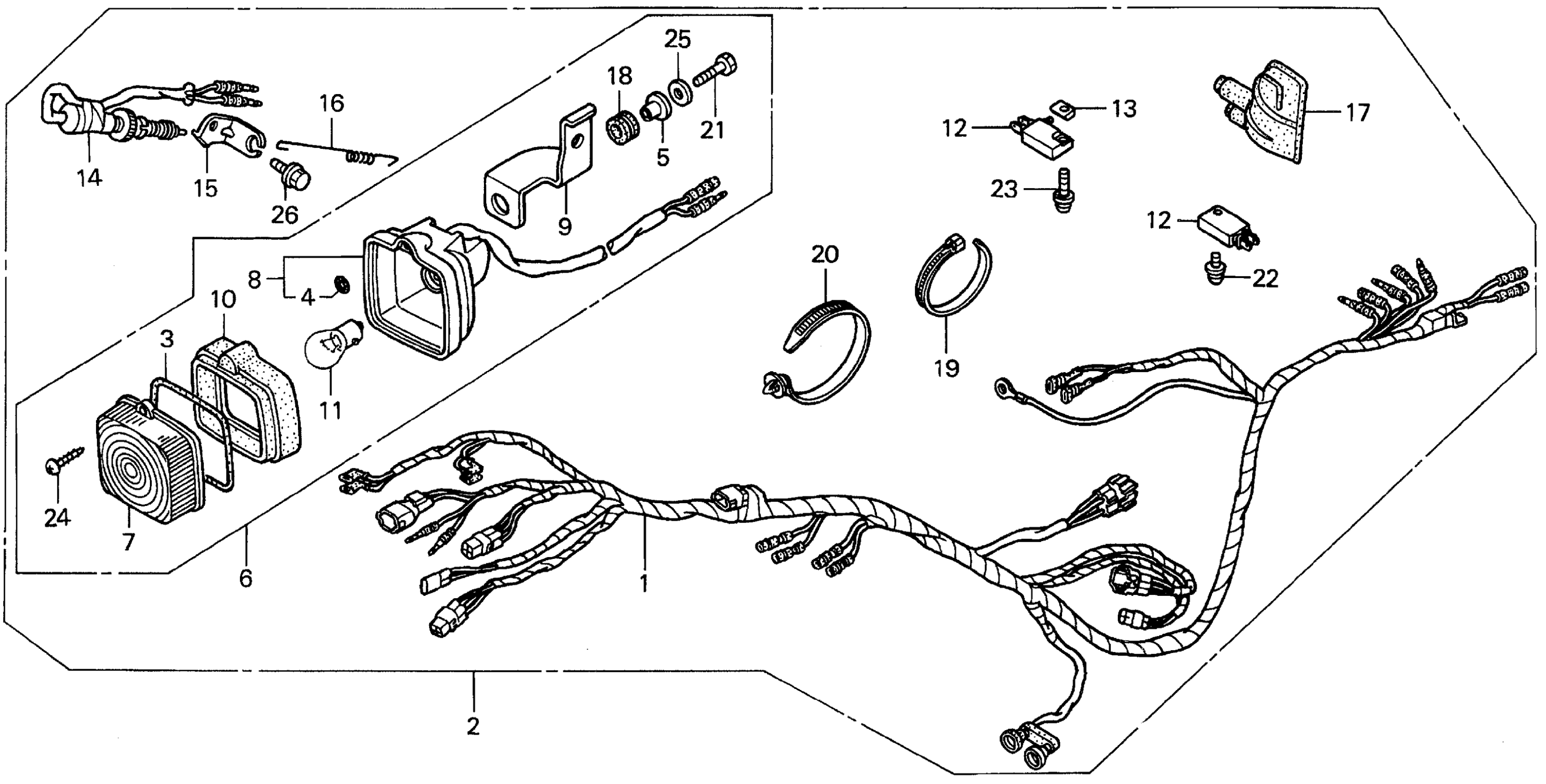

Honda TRX250AM (98) TRX250 RECON, USA, VIN# 478TE210-WA100001 STOP LIGHT KIT-- MAINE STATE 97-98 Diagram

#

Description
Price

1

WIRE HARNESS

32100-HM8-690

$141.04

2

LIGHT SET, STOP (NA USE ALT:33080-HM8A-6900)

33080-HM8-690

Unavailable

3

GASKET, TURN SIGNAL LENS

33407-166-611

$5.80

4

GASKET, SEAL

33408-166-611

$1.40

5

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$3.89

6

LIGHT ASSY., STOP

33810-HM8-690

Unavailable

7

LENS, STOP LIGHT

33812-HF1-830

$12.36

8

BASE, STOP LIGHT

33813-HC4-830

Unavailable

9

STAY, STOP LIGHT

33815-HM8-690

Unavailable

10

RUBBER, STOP LIGHT WATERPROOF

33850-HF1-831

Unavailable

11

BULB, TURN SIGNAL (12V 18.4W)

34905-KN8-003

Unavailable

12

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

12

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

13

COLLAR, STOP SWITCH

35345-HF1-830

$5.60

14

SWITCH ASSY., RR. STOP This part replaces 35350-HM8-690.

35350-HM8-691

Unavailable

14

SWITCH ASSY., RR. STOP

35350-HM8-691

Unavailable

15

STAY, STOP SWITCH

35351-HM8-690

$6.86

16

SPRING, STOP SWITCH This part replaces 35357-HM8-690.

35357-HM8-691

$4.43

16

SPRING, STOP SWITCH

35357-HM8-691

$4.43

17

COVER, L. HANDLE

53177-HF1-830

Unavailable

18

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.57

19

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

20

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.78

21

BOLT, HEX. (5X20)

92101-05020-0A

$1.06

22

SCREW-WASHER (4X14)

93893-04014-07

$0.93

23

SCREW-WASHER (4X20)

93893-04020-07

$0.83

24

SCREW, TAPPING (4X16)

93901-14480

Unavailable

25

WASHER, PLAIN (5MM)

94101-05000

$0.90

26

BOLT, FLANGE (6X10)

95701-06010-00

$1.14
