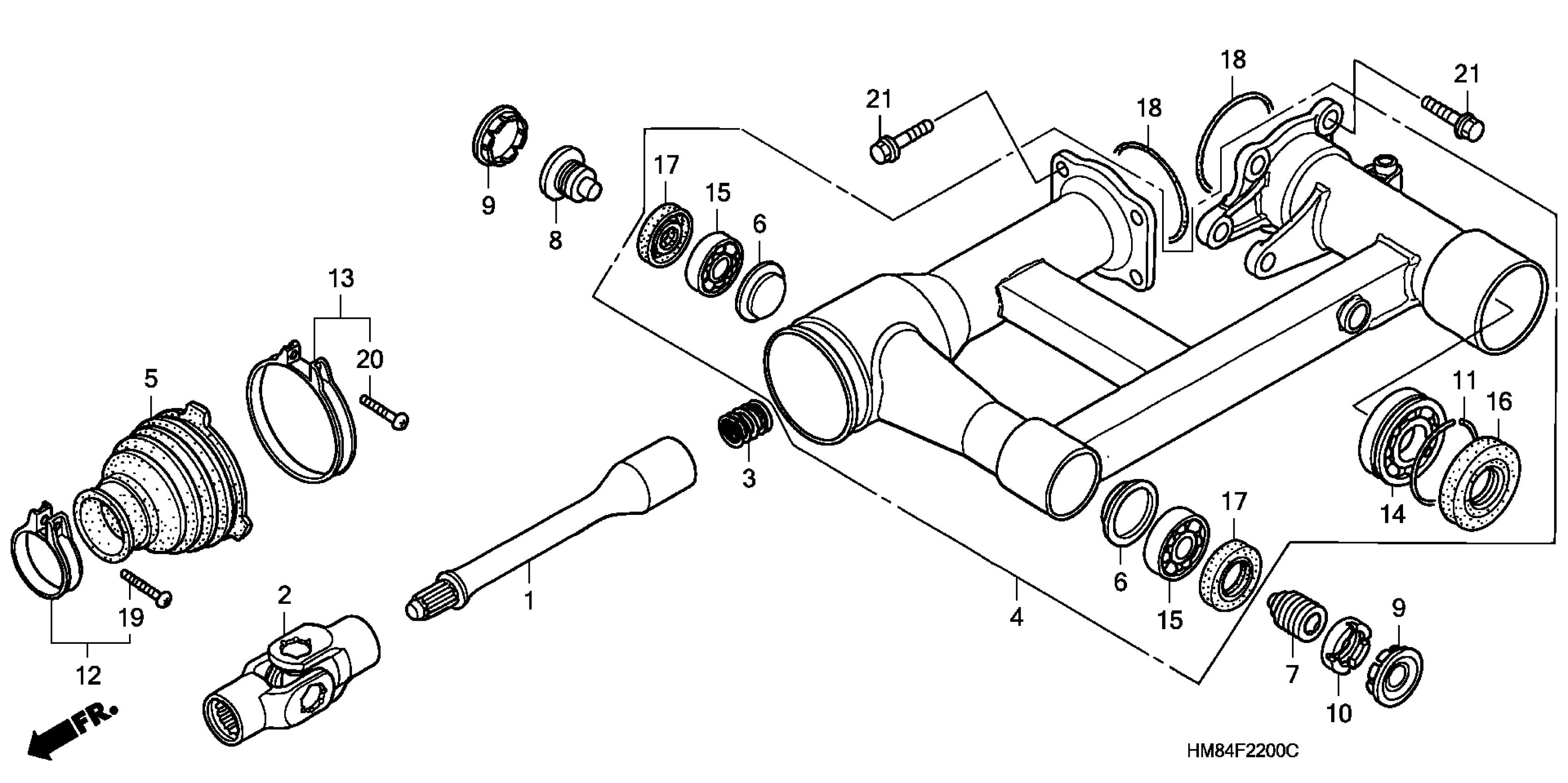

Honda TRX250A (99) TRX250 RECON, USA, VIN# 478TE210-XA200001 SWINGARM Diagram

SHAFT, PROPELLER

40201-HM8-000

$72.34

JOINT, YOKE This part replaces 40210-HM5-730.

40210-HN7-010

$60.66

JOINT, YOKE This part replaces 40210-HM5-731.

40210-HN7-010

$60.66

JOINT, YOKE

40210-HN7-010

$60.66

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

SWINGARM ASSY., RR. This part replaces 52100-HM8-A00.

52100-HM8-A40

$381.89

SWINGARM ASSY., RR.

52100-HM8-A40

$381.89

BOOT, JOINT

52101-HM8-000

$7.09

HOLDER, SWINGARM GREASE

52112-MA1-300

$7.04

BOLT A, PIVOT

90121-HM5-930

$9.41

BOLT B, PIVOT

90122-HM5-930

$10.85

CAP, LOCK NUT

90312-HM5-670

$11.71

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

CLIP, BEARING

90601-HM8-000

$2.72

BAND, AIR CLEANER CONNECTING TUBE (44)

95018-44250

$5.90

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90320

$6.78

BEARING, RADIAL BALL (32X58X13X2)

91054-HA0-771

$56.86

BEARING, ANGULAR (7203)

91066-HC4-004

$35.11

DUST SEAL (32X58X10) This part replaces 91255-HM8-003.

91255-HN6-003

$17.59

DUST SEAL (32X58X10)

91255-HN6-003

$17.59

DUST SEAL (26X40X5) (NOK)

91268-HN0-A01

$5.71

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.83

BOLT, FLANGE (10X25)

95701-10025-00

$2.19
