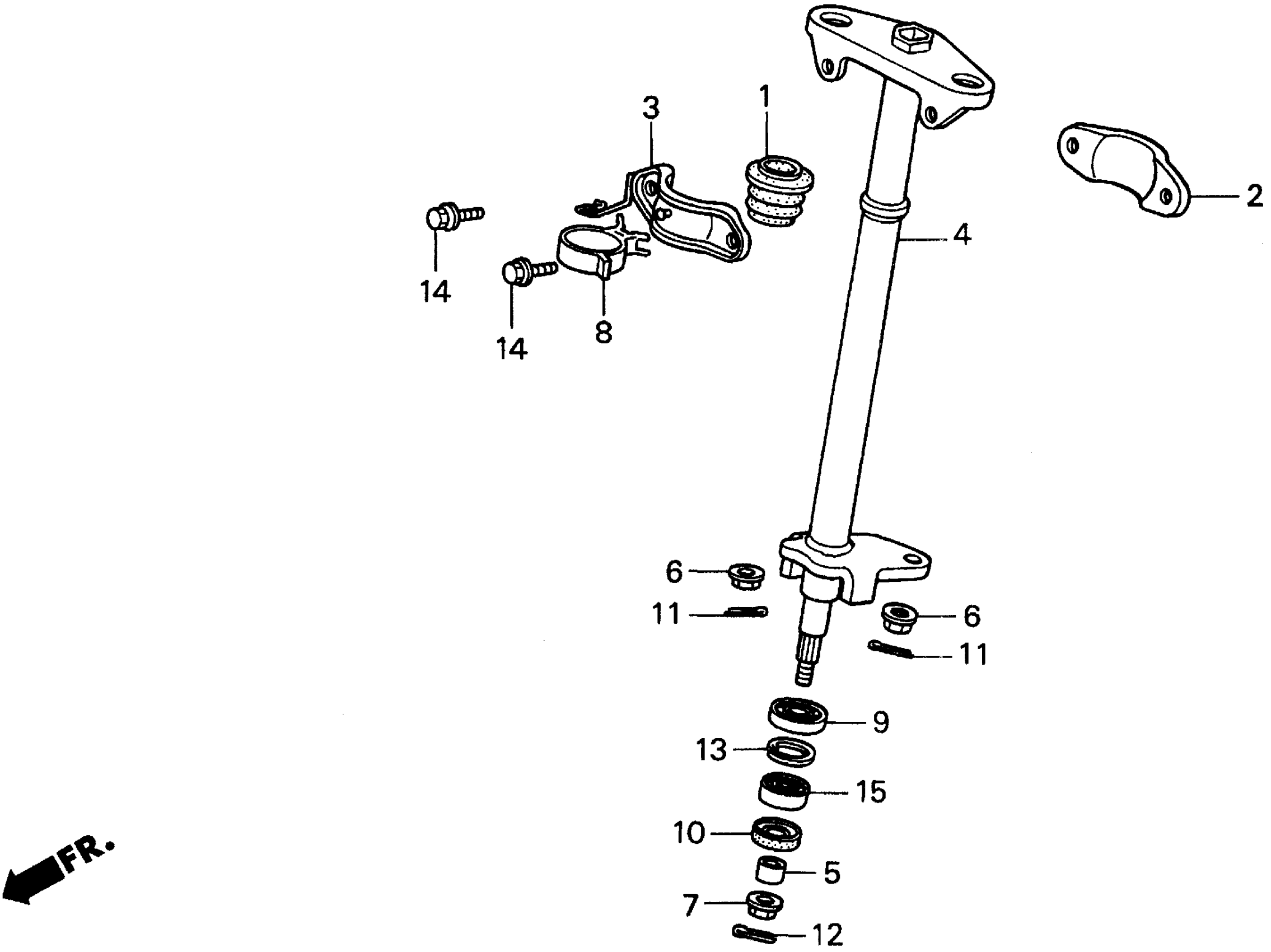

Honda TRX250A (98) TRX250 RECON, USA, VIN# 478TE210-WA100001 STEERING SHAFT Diagram

#

Description
Price

1

BUSH, STEERING

53221-HC4-004

$31.45

2

HOLDER, STEERING SHAFT

53223-HC4-000

$18.51

3

HOLDER B, STEERING SHAFT

53224-HM7-000

Unavailable

4

SHAFT, STEERING This part replaces 53310-HM8-000.

53310-HM8-A00

$142.21

4

SHAFT, STEERING

53310-HM8-A00

$142.21

5

COLLAR, STEERING SHAFT

53317-HC4-000

Unavailable

6

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

7

NUT, SPECIAL (14MM)

90305-759-000

Unavailable

8

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

9

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-681.

90753-GK4-003

$8.66

9

OIL SEAL (27X40X6) (ARAI)

90753-GK4-003

$8.66

10

DUST SEAL (23X35X7)

91205-VM6-003

$9.59

11

PIN, SPLIT (2.0X22)

94201-20220

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

11

PIN, SPLIT (2.0X35)

94201-20350

$1.49

12

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

12

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

12

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

12

PIN, SPLIT (3.0X45)

94201-30450

$1.49

13

CIRCLIP (INNER) (40MM)

94520-40000

$2.19

14

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

15

BEARING, RADIAL BALL (6203UU)

96150-62033-10

$18.12
