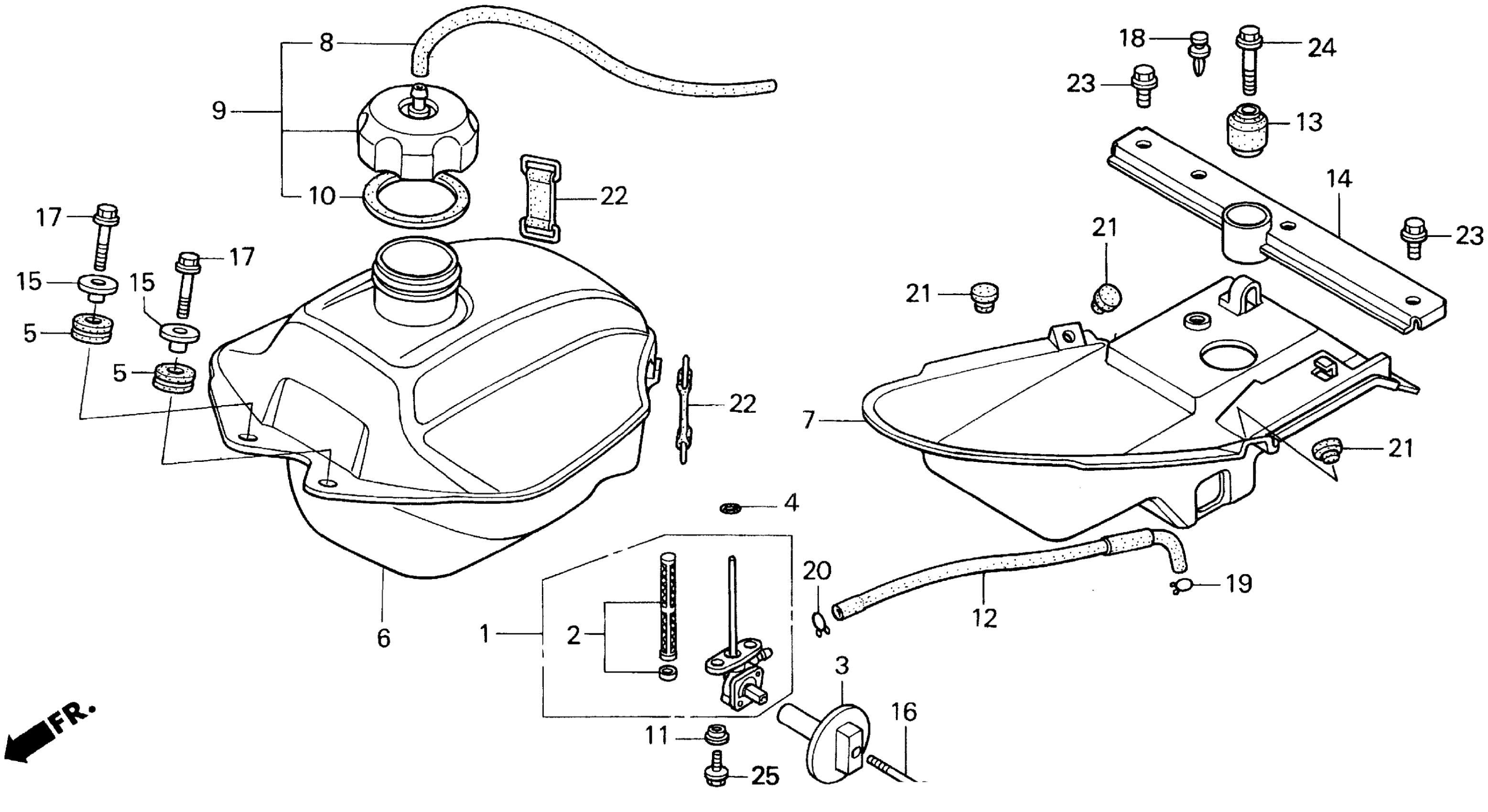

Honda TRX250A (98) TRX250 RECON, USA, VIN# 478TE210-WA100001 FUEL TANK Diagram

PETCOCK ASSY.

16950-HM8-003

$97.35

SCREEN SET, FUEL STRAINER

16952-HM8-003

$23.67

LEVER, PETCOCK *NH1* (BLACK)

16963-HM8-000ZA

$10.46

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, TANK MOUNTING

17508-KN5-670

$2.59

RUBBER, TANK MOUNTING This part replaces 17508-MN1-670.

17508-KN5-670

$2.59

TANK, FUEL This part replaces 17510-HM8-000.

17510-HM8-B00

Unavailable

TANK, FUEL This part replaces 17510-HM8-A00.

17510-HM8-B00

Unavailable

TANK, FUEL

17510-HM8-B00

Unavailable

HEAT PROTECTOR, TANK (LOWER)

17515-HM8-000

Unavailable

TUBE, FUEL CAP BREATHER

17521-HA2-670

$6.99

CAP ASSY., FUEL TANK

17620-HF7-000

$55.16

GASKET, FUEL CAP

17624-HF7-000

$7.81

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

TUBE, FUEL

17681-HM8-000

$3.30

RUBBER, ENGINE HEAD MOUNTING

50201-HM8-003

$19.11

PLATE, CROSS This part replaces 50300-HM8-000.

50300-HN6-000

$18.33

PLATE, CROSS

50300-HN6-000

$18.33

COLLAR, SEAT MOUNTING

77207-464-000

$7.63

SCREW-WASHER (5X80)

90101-HM7-000

$10.37

BOLT, SPECIAL (6X32)

90101-HM8-000

$4.39

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (B12)

95002-02120

$2.00

RUBBER C, STAND STOPPER

95011-63000

$3.90

BAND A, BATTERY

95012-11001

$2.92

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X45)

95801-08045-00

$1.80

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
