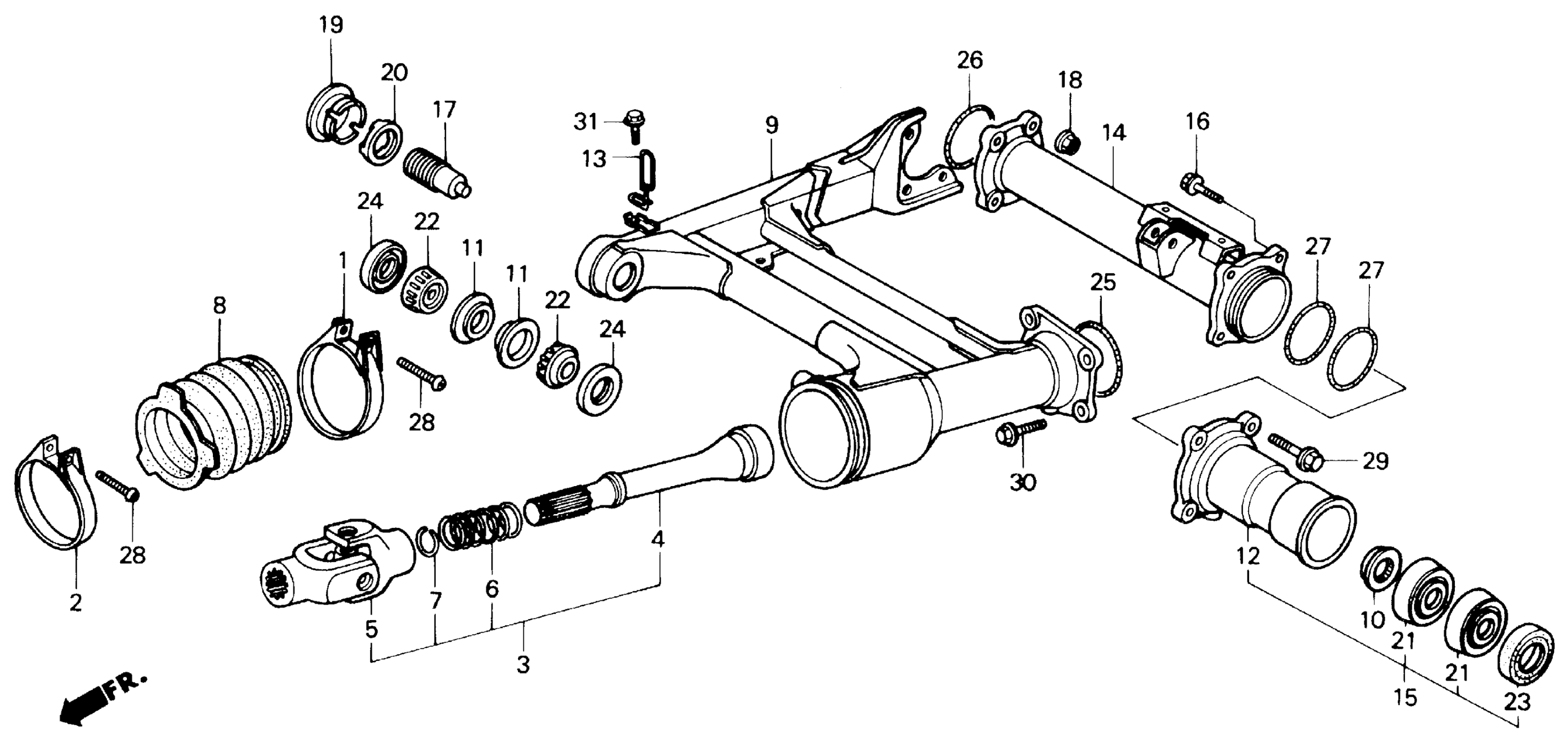

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 SWINGARM Diagram

#

Description
Price

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 17256-HA0-680.

95018-86250

Unavailable

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 90652-GHB-860.

95018-86250

Unavailable

1

BAND ASSY., BOOT JOINT (85MM)

95018-86250

Unavailable

2

BAND ASSY., BOOT JOINT (75MM) (NOT AVAILABLE)

17258-HA0-680

Unavailable

3

JOINT ASSY., YOKE (NOT AVAILABLE)

40200-HA8-681

Unavailable

4

SHAFT, PROPELLER (NOT AVAILABLE)

40201-HA8-000

Unavailable

5

JOINT, YOKE

40210-HA6-681

Unavailable

6

SPRING, SHAFT (NOT AVAILABLE)

40215-HA6-000

Unavailable

7

RING, SPRING STOPPER (NOT AVAILABLE)

40218-HA6-000

Unavailable

8

BOOT, JOINT

52101-HA8-680

$23.74

9

SWINGARM

52110-HA8-770

Unavailable

10

STOPPER, BEARING

52112-HA0-000

$15.07

12

PIPE, L. HOUSING (NOT AVAILABLE)

52120-HA8-680

Unavailable

13

CLAMP, RR. BRAKE CABLE

52128-HA8-000

Unavailable

14

HOUSING, RR. AXLE

52130-HA8-680

Unavailable

15

HOUSING ASSY., L. PIPE (NOT AVAILABLE)

52140-HA8-680

Unavailable

16

BOLT, SPECIAL (10MM) (NOT AVAILABLE) This part replaces 90105-HA0-010.

90109-HA0-681

Unavailable

17

BOLT, R. SWINGARM PIVOT

90121-HA6-000

Unavailable

18

NUT, U (10MM)

90304-GE8-003

$3.42

19

CAP, LOCK NUT

90312-HA0-000

$10.53

20

NUT, RR. SWINGARM PIVOT

90355-469-000

$15.75

21

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$38.31

22

BEARING, TAPER ROLLER (17X40X13.25) (KOYO) This part replaces 91066-HA7-671.

91066-HA7-672

$55.74

22

BEARING, TAPER ROLLER (17X40X13.25) (NSK)

91066-HA7-672

$55.74

23

OIL SEAL (42X58X10)

91255-HA0-681

$18.27

25

O-RING (58.5X2) This part replaces 91302-HA2-000.

91308-500-010

$10.64

25

O-RING (58.5X2) This part replaces 91302-506-000.

91308-500-010

$10.64

25

O-RING (58.5X2)

91308-500-010

$10.64

25

O-RING (58.5X2) This part replaces 91308-504-000.

91308-500-010

$10.64

26

O-RING (52.5X2)

91308-HA8-000

Unavailable

27

O-RING, ROTARY CASE

91351-737-752

$4.79

28

SCREW, PAN (5X32) (NOT AVAILABLE)

90113-HA0-680

Unavailable

29

BOLT, FLANGE (8X25)

95701-08025-00

$1.62

29

BOLT, FLANGE (8X25) This part replaces 95800-08025-00.

95701-08025-00

$1.62

29

BOLT, FLANGE (8X25) This part replaces 95801-08025-00.

95701-08025-00

$1.62

30

BOLT, FLANGE (8X28)

95801-08028-00

$1.62

30

BOLT, FLANGE (8X28) This part replaces 95822-08028-00.

95801-08028-00

$1.62

31

BOLT, FLANGE (6X14)

95701-06014-07

$1.32

31

BOLT, FLANGE (6X14) This part replaces 95900-06014-07.

95701-06014-07

$1.32
