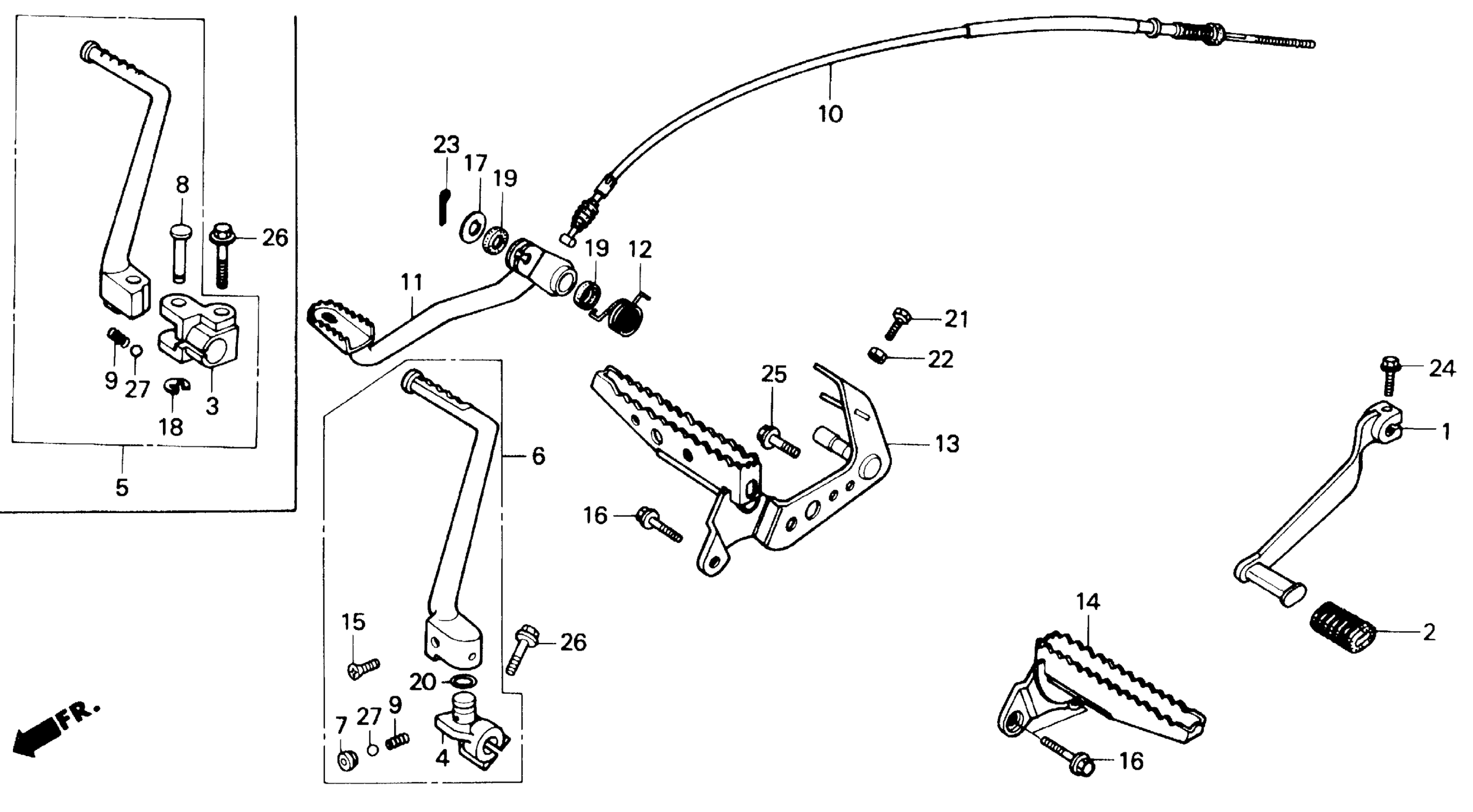

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 STEP Diagram

PEDAL, GEARSHIFT

24700-HA0-680

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

JOINT, KICK ARM

28241-HA6-680

Unavailable

JOINT, KICK ARM This part replaces 28241-HA8-681.

28241-HA6-680

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE) This part replaces 28300-HA8-681.

28300-HC4-750

Unavailable

ARM ASSY., KICK STARTER

28300-HC4-750

Unavailable

PLUG, KICK ARM

28302-965-000

$2.59

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

CABLE, FOOT BRAKE

43470-HA8-770

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-HA8-000

Unavailable

SPRING, BRAKE PEDAL

46514-HA0-000

Unavailable

BAR, R. STEP (NOT AVAILABLE)

50611-HA8-680

Unavailable

BAR, L. STEP

50621-HA8-680

Unavailable

SCREW (6X28)

90104-965-003

Unavailable

BOLT, UBS (10X48)

90163-HA8-000

Unavailable

WASHER (17.5MM)

90512-303-000

$1.77

DUST SEAL (17X23X3)

91206-968-003

$3.69

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

BOLT, HEX. (6X25) This part replaces 92022-06025-0A.

92025-06025-0A

$1.49

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

BOLT, FLANGE (6X20)

90118-968-000

$4.24

BOLT, FLANGE (10X28)

95701-10028-08

$2.19

BOLT, FLANGE (10X28) This part replaces 95800-10028-08.

95701-10028-08

$2.19

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

BOLT, FLANGE (8X28) This part replaces 95700-08028-10.

95701-08028-00

$1.49

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

BOLT, FLANGE (8X28) This part replaces 95900-08028-00.

95701-08028-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
