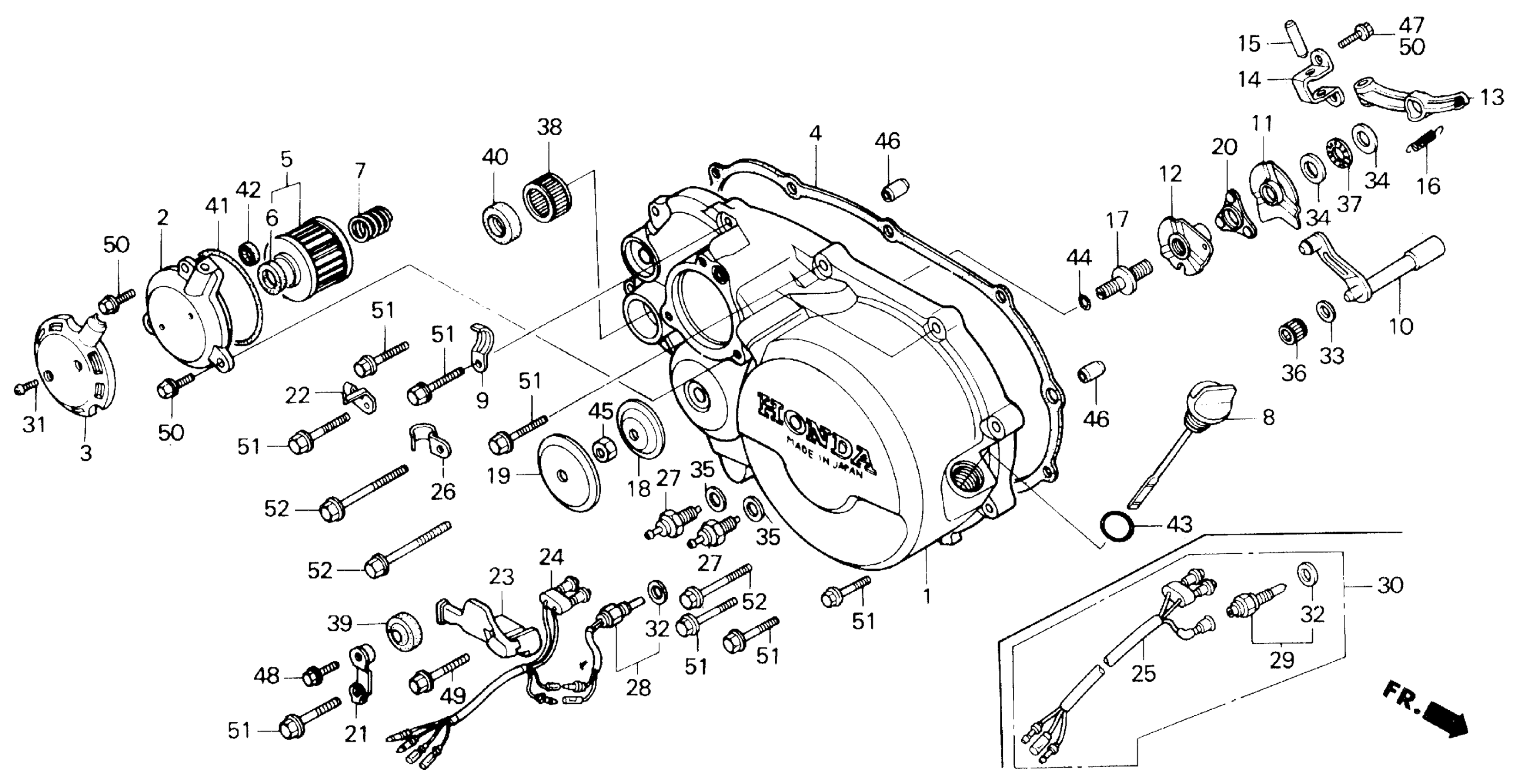

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-HA8-405.

11330-HA8-415

Unavailable

1

COVER, R. CRANKCASE

11330-HA8-415

Unavailable

1

COVER, R. CRANKCASE This part replaces 11330-HA8-770.

11330-HA8-415

Unavailable

2

COVER, OIL FILTER

11333-HA0-000

Unavailable

3

PROTECTOR, OIL FILTER COVER

11334-HA0-000

Unavailable

4

GASKET, R. CRANKCASE COVER This part replaces 11394-HA7-690.

11394-HC4-840

$29.65

4

GASKET, R. CRANKCASE COVER This part replaces 11394-HA8-000.

11394-HC4-840

$29.65

4

GASKET, R. CRANKCASE COVER This part replaces 11394-HA8-306.

11394-HC4-840

$29.65

4

GASKET, R. CRANKCASE COVER

11394-HC4-840

$29.65

5

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

5

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

6

RUBBER, FILTER

15413-MC8-000

$3.35

7

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

8

DIPSTICK, OIL (NOT AVAILABLE) This part replaces 15650-HA0-680.

15650-HA6-680

Unavailable

9

CLIP, AIR VENT TUBE (NOT AVAILABLE)

17215-393-780

Unavailable

10

LEVER, CLUTCH (NOT AVAILABLE)

22810-HA0-770

Unavailable

11

PLATE, CLUTCH CAM

22821-HA0-310

Unavailable

12

PLATE, CLUTCH LIFTER

22830-HA0-010

$19.15

13

ARM, CLUTCH

22835-HA0-000

Unavailable

14

STAY, CLUTCH ARM

22836-HA0-000

Unavailable

15

SHAFT, CLUTCH ARM

22837-HA0-000

Unavailable

16

SPRING, CLUTCH ARM

22839-HA0-000

Unavailable

17

BOLT, CLUTCH ADJUSTING

22841-HA0-000

Unavailable

18

RETAINER, CLUTCH ADJ.

22842-HA0-680

Unavailable

19

CAP, CLUTCH ADJUSTING

22850-HA0-680

Unavailable

20

RETAINER, BALL

22860-HA0-000

Unavailable

21

LEVER, REVERSE STOPPER (NOT AVAILABLE)

24865-HA0-000

Unavailable

22

HOLDER, REVERSE STOPPER WIRE

24871-HA0-010

Unavailable

23

COVER, SWITCH HARNESS

24880-HA8-000

Unavailable

24

SUB-WIRE, CHANGE SWITCH (NOT AVAILABLE) | Use up to Engine SN 8227615

32410-HA8-770

Unavailable

25

SUB-WIRE, CHANGE SWITCH (NOT AVAILABLE) | Use from Engine SN 8227616 This part replaces 32410-HA8-771.

32410-HA8-770

Unavailable

26

CLAMP, WIRE

32922-MB2-000

Unavailable

27

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-HA0-000.

35600-HA0-003

$18.90

27

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

27

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-HA0-010.

35600-HA0-003

$18.90

28

SENSOR ASSY., THERMOSTAT OIL | Use up to Engine SN 8227615 This part replaces 37750-HA8-014.

37750-VM5-305

Unavailable

28

SENSOR ASSY., THERMOSTAT OIL | Use up to Engine SN 8227615

37750-VM5-305

Unavailable

29

SENSOR ASSY., THERMOSTAT OIL (TOYO) | Use from Engine SN 8227616 This part replaces 37750-HA8-024.

37750-HC4-751

$62.59

29

SENSOR ASSY., THERMOSTAT OIL (TOYO) | Use from Engine SN 8227616 This part replaces 37750-HA8-034.

37750-HC4-751

$62.59

29

SENSOR ASSY., THERMOSTAT OIL (TOYO) | Use from Engine SN 8227616

37750-HC4-751

$62.59

30

PARTS SET, OIL THERMOSTAT | (Optional). Use from Engine SN 8227616

37760-HA8-770

Unavailable

31

SCREW, TAPPING (4X12)

90017-HA0-000

$2.59

32

WASHER, SEAL

90401-HA8-000

$3.81

33

WASHER (9MM)

90405-HA0-000

Unavailable

34

WASHER, THRUST (14MM)

90417-HA0-000

$3.67

35

WASHER, OIL BOLT

90545-300-000

$3.99

36

BEARING, NEEDLE (9MM)

91006-HA0-003

$13.32

37

BEARING, THRUST NEEDLE (15MM)

91062-HA0-003

Unavailable

38

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$20.55

39

OIL SEAL (12X22X5)

91201-965-000

$4.06

40

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

41

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

42

O-RING (11X1.9) (NOK) This part replaces 91301-671-671.

91303-HA0-004

$2.13

42

O-RING (11X1.9) (ARAI)

91303-HA0-000

Unavailable

42

O-RING (11X1.9) (NOK) This part replaces 91303-HA0-003.

91303-HA0-004

$2.13

42

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

43

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

44

O-RING (8.2X1.5)

91308-MC7-000

$2.31

45

NUT, HEX. (8MM)

94031-08000

$1.49

46

PIN A, DOWEL (8X14)

94301-08140

$2.25

47

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

48

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

50

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

51

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

52

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
