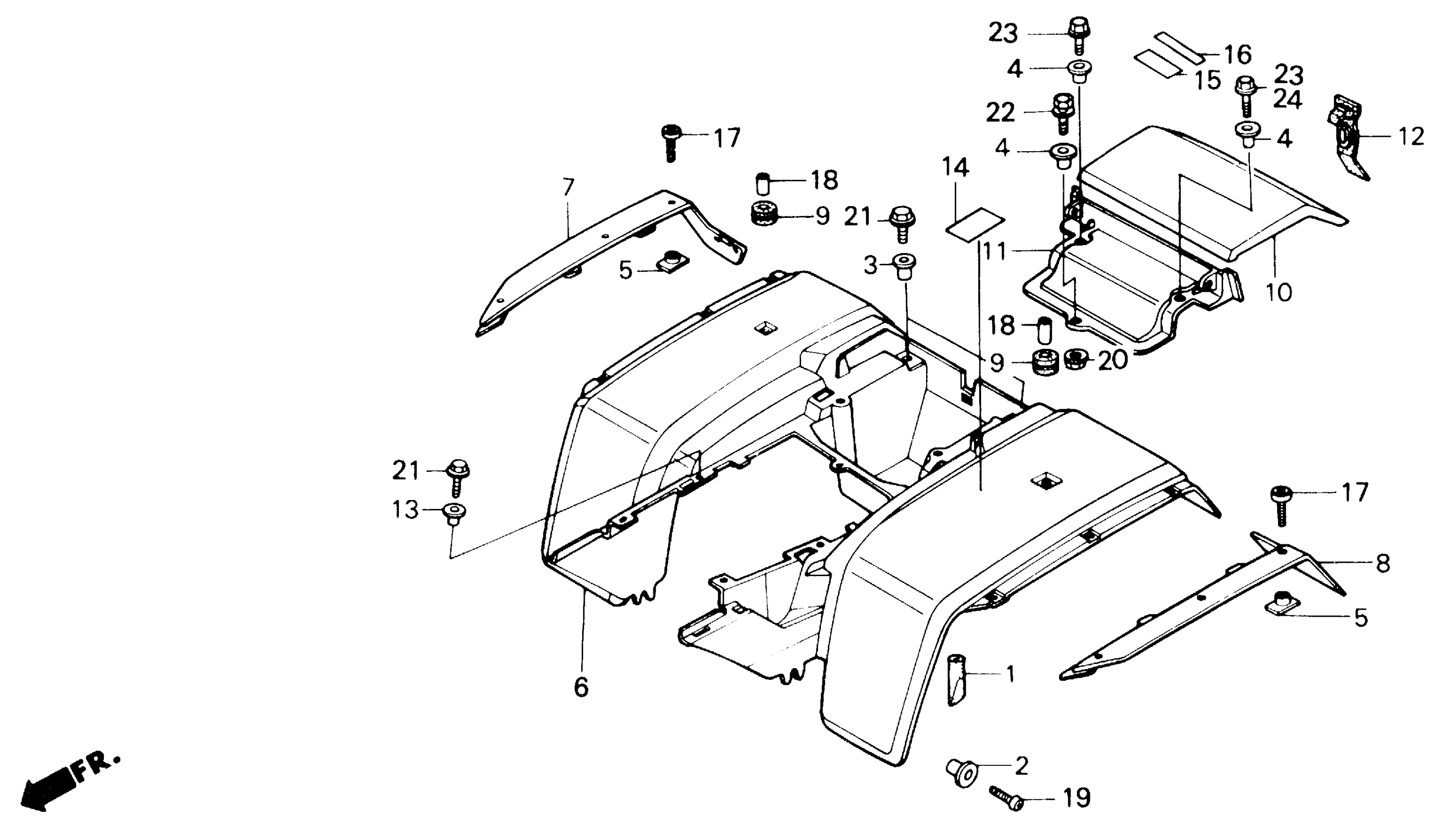

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 REAR FENDER Diagram

#

Description
Price

1

TUBE, DRAIN

17358-VM4-000

$9.44

2

COLLAR, FR. FENDER

61104-VM5-000

Unavailable

3

COLLAR, CHAIN GUARD

52159-KB7-000

$6.05

4

COLLAR, SIDE COVER

61104-435-000

$4.83

5

NUT, SPECIAL (6X7)

90303-HA0-680

$3.67

6

FENDER, RR. *R109* (PASSION RED)

80100-HA8-770ZA

Unavailable

7

SPLASH GUARD, R. RR. *NH105* (MAT BLACK) (NOT AVAILABLE)

80111-VM5-000ZA

Unavailable

8

SPLASH GUARD, L. RR. *NH105* (MAT BLACK) (NOT AVAILABLE)

80116-VM5-000ZA

Unavailable

9

RUBBER, RR. FENDER

80152-958-680

$4.90

10

LID, TOOL BOX *NH53L* (SPACY GRAY) (NOT AVAILABLE)

80211-HA8-680ZA

Unavailable

11

COVER, TOOL BOX *R109* (PASSION RED)

80212-HA8-680ZA

Unavailable

12

BAND, TOOL BOX This part replaces 80214-HA8-680.

80214-HM5-850

$2.29

12

BAND, TOOL BOX

80214-HM5-850

$2.29

13

COLLAR

84706-415-000

$2.16

14

MARK, TIRE CAUTION

87505-HA8-770

Unavailable

16

LABEL, LUGGAGE BOX (NOT AVAILABLE)

87513-HA0-000

Unavailable

17

SCREW, SPLASH GUARD

90103-VM4-000

$9.94

17

SCREW, SPLASH GUARD

90103-VM4-003

$9.94

17

SCREW, SPLASH GUARD

90120-HA7-670

$9.34

18

COLLAR (8MM)

90324-449-000

Unavailable

19

SCREW, PAN (6X16)

93500-06016-0G

$1.28

20

NUT, FLANGE (6MM)

94050-06080

$0.60

21

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.63

21

BOLT, FLANGE (6X14)

95701-06014-08

$1.63

22

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.63

22

BOLT, FLANGE (6X14)

95701-06014-08

$1.63

22

BOLT, FLANGE (6X14) This part replaces 95900-06014-08.

95701-06014-08

$1.63

23

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$0.40

23

BOLT, FLANGE (6X20)

95701-06020-08

$0.40

23

BOLT, FLANGE (6X20) This part replaces 95900-06020-08.

95701-06020-08

$0.40

24

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.63

24

BOLT, FLANGE (6X14)

95701-06014-08

$1.63

24

BOLT, FLANGE (6X14) This part replaces 95900-06014-08.

95701-06014-08

$1.63
