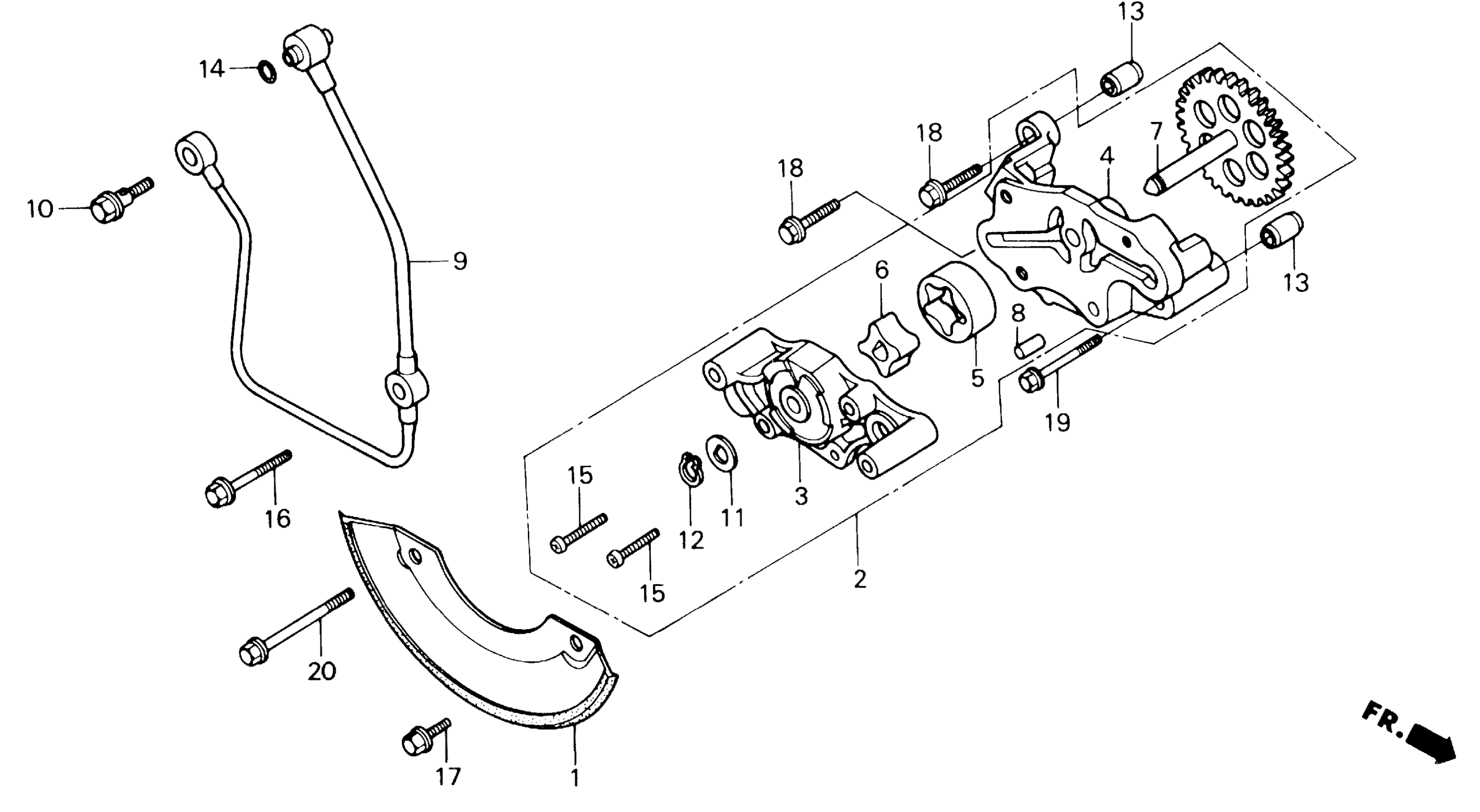

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 OIL PUMP Diagram

#

Description
Price

1

PLATE, OIL SEPARATE (NOT AVAILABLE)

11140-HA0-000

Unavailable

2

PUMP ASSY., OIL This part replaces 15100-HA0-770.

15100-HA0-771

Unavailable

2

PUMP ASSY., OIL

15100-HA0-771

Unavailable

3

BODY, OIL PUMP This part replaces 15111-HA0-000.

15111-HA0-010

Unavailable

3

BODY, OIL PUMP

15111-HA0-010

Unavailable

4

COVER, OIL PUMP This part replaces 15121-HA0-770.

15121-HA0-771

Unavailable

4

COVER, OIL PUMP

15121-HA0-771

Unavailable

5

ROTOR, OIL PUMP (OUTER)

15122-KF0-000

$30.62

6

ROTOR, OIL PUMP (INNER)

15123-KF0-000

$23.70

7

GEAR, OIL PUMP DRIVEN (30T)

15140-HA0-010

Unavailable

8

ROLLER (6X8) | Use up to Engine SN 8227100

15141-KF0-000

$4.51

8

PIN, DOWEL (6X8) | Use from Engine SN 8227101

94302-06080

Unavailable

9

PIPE, OIL (NOT AVAILABLE) This part replaces 15510-HA0-000.

15510-HA0-010

Unavailable

10

BOLT, FLANGE (7X18.5)

15532-HA0-000

$9.59

11

WASHER (8MM)

90465-HA0-000

Unavailable

12

CIRCLIP (OUTER) (8MM)

90604-HA0-000

$1.94

13

PIN, DOWEL (8X10)

91103-429-000

$2.56

14

O-RING (8.2X1.5)

91308-MC7-000

$2.31

15

SCREW, PAN (5X22)

93500-05022-0A

$1.49

16

BOLT, FLANGE (6X35)

95801-06035-08

$1.89

17

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

18

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

19

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

20

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
