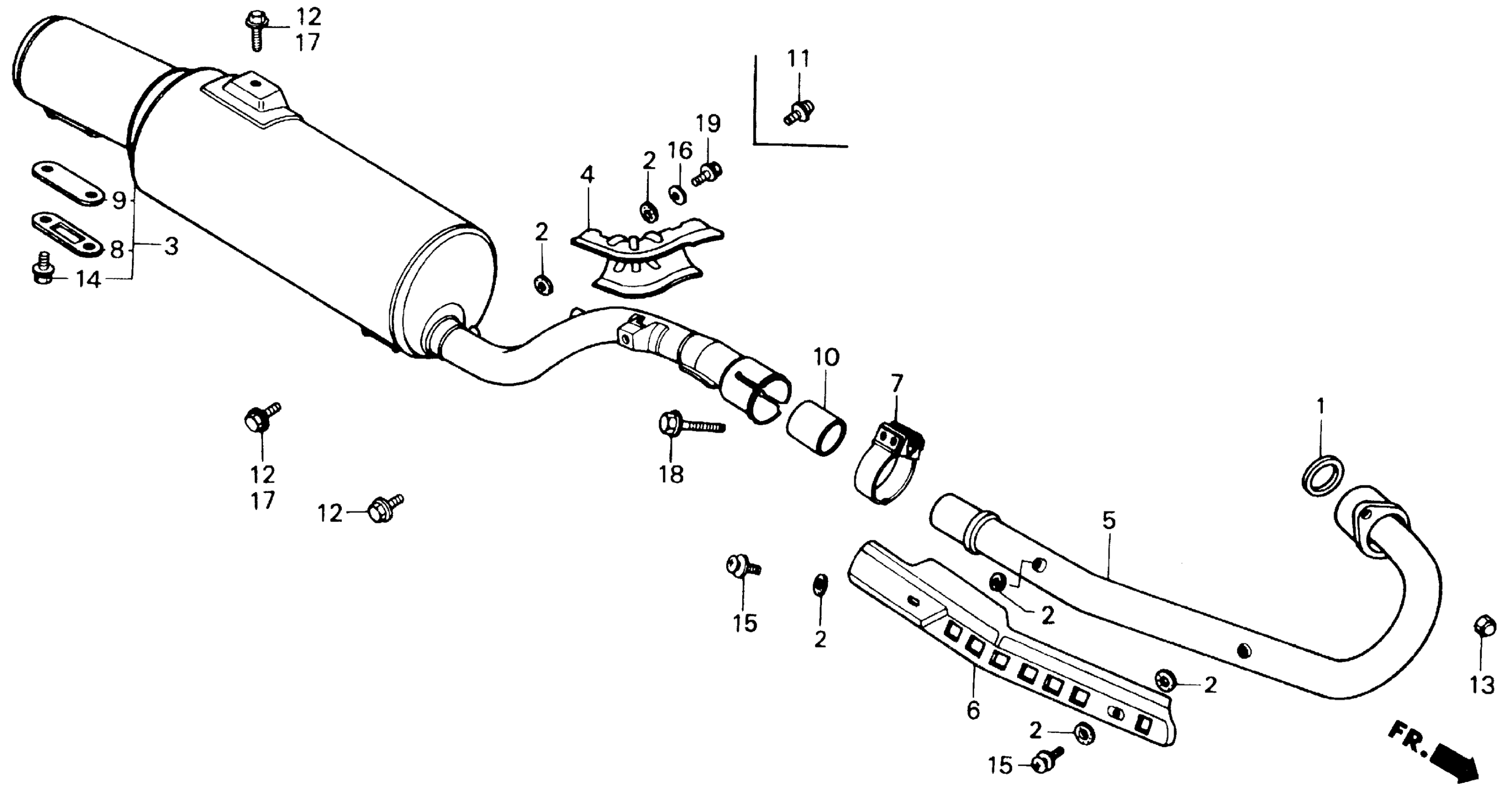

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN4-920

$5.31

1

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

2

GASKET, PROTECTOR | Use from Frame SN HC210776

18293-MCA-780

$4.85

2

GASKET, PROTECTOR | Use from Frame SN HC210776 This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

2

GASKET, PROTECTOR | Use from Frame SN HC210776 This part replaces 18293-422-000.

18293-MCA-780

$4.85

2

GASKET, PROTECTOR | Use up to Frame SN HC210775

18292-167-890

$1.88

2

GASKET, PROTECTOR | Use up to Frame SN HC210775 This part replaces 18292-329-000.

18292-167-890

$1.88

3

MUFFLER (NOT AVAILABLE)

18310-HA8-680

Unavailable

4

PROTECTOR, FR. MUFFLER

18315-HA8-003

$20.41

5

PIPE, EX. (NOT AVAILABLE)

18320-HA0-003

Unavailable

6

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18321-HA8-681

Unavailable

7

BAND, EX. MUFFLER

18373-HA0-003

$33.60

8

LID, MUFFLER

18373-429-010

$9.15

9

GASKET, MUFFLER LID

18374-MN1-880

$4.21

9

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

10

GASKET, MUFFLER

18391-ML8-000

$9.49

10

GASKET, MUFFLER | Use up to Frame SN HC227403 This part replaces 18391-110-000.

18391-ML8-000

$9.49

10

GASKET, MUFFLER | Use from Frame SN HC227404 This part replaces 18391-HA8-770.

18391-ML8-000

$9.49

12

BOLT, FLANGE (8X12) This part replaces 90116-HA8-000.

90190-MG3-000

$3.58

12

BOLT, FLANGE (8X12)

90190-MG3-000

$3.58

13

NUT, CAP (8MM)

90304-ME1-670

$5.94

14

BOLT-WASHER (6X12)

93401-06012-07

$1.62

14

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

14

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

15

SCREW-WASHER (6X10)

93892-06010-08

Unavailable

16

WASHER, PLAIN (6MM)

94101-06200

$1.49

17

BOLT, FLANGE (10X16) This part replaces 95700-10016-08.

95701-10016-08

$2.25

17

BOLT, FLANGE (10X16)

95701-10016-08

$2.25

18

BOLT, FLANGE (8X32)

95701-08032-08

$2.28

18

BOLT, FLANGE (8X32) This part replaces 95900-08032-08.

95701-08032-08

$2.28

19

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

19

BOLT, FLANGE (6X10)

96001-06010-02

$1.54
