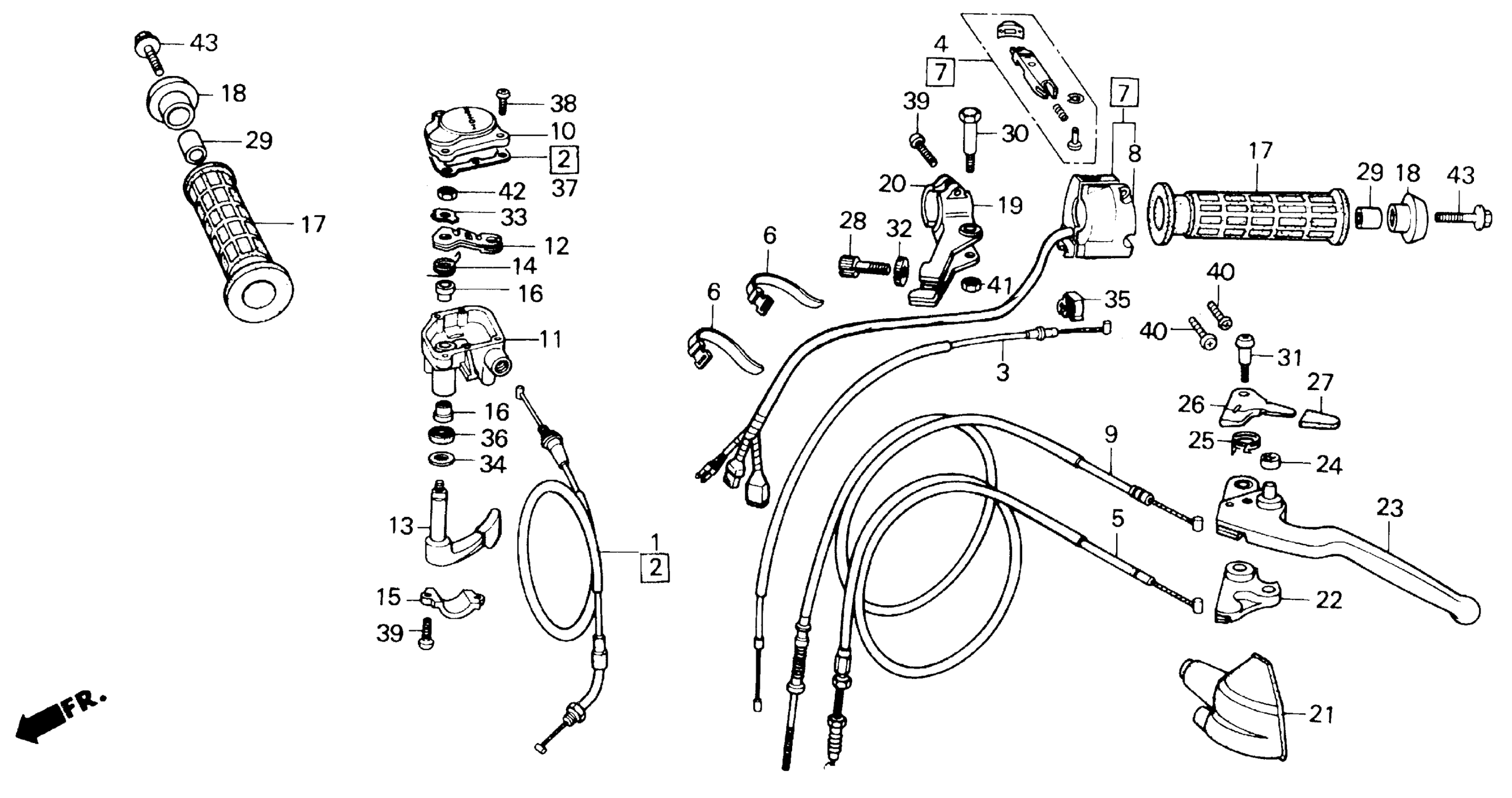

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 HANDLE LEVER Diagram

#

Description
Price

2

CABLE, THROTTLE (NOT AVAILABLE)

17910-HA8-315

Unavailable

3

CABLE, CHOKE

17950-HA8-770

Unavailable

4

LEVER, CHOKE This part replaces 17962-HA0-680.

17010-HA0-305

$16.67

5

CABLE, REVERSE ASSIST

22880-HA0-680

Unavailable

6

BAND B1, CABLE

32161-404-000

$2.16

7

SWITCH ASSY., STARTER LIGHTING (NOT AVAILABLE)

35200-HA8-681

Unavailable

8

COVER, LIGHTING SWITCH

35201-HA0-680

Unavailable

9

CABLE, HAND BRAKE

43460-HA8-770

Unavailable

10

COVER, THROTTLE CASE

53141-HA0-010

Unavailable

11

CASE, THROTTLE LEVER

53142-HA0-020

Unavailable

12

ARM, THROTTLE

53144-HA0-010

$7.36

13

LEVER, THROTTLE

53145-HA0-770

$21.43

14

SPRING, THROTTLE RETURN

53146-HA0-000

$4.31

15

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

17

GRIP, HANDLE

53165-958-010

$12.28

18

GUARD, HANDLEBAR END

53167-958-680

$6.11

19

BRACKET, BRAKE LEVER (NOT AVAILABLE) This part replaces 53172-HA8-681.

53172-HA8-682

Unavailable

19

BRACKET, BRAKE LEVER

53172-HA8-682

Unavailable

20

HOLDER, LEVER BRACKET

53173-376-000

$10.04

21

COVER, L. HANDLEBAR

53177-HA0-680

$10.75

22

ARM, REVERSE ASSIST

53179-HA6-000

$13.93

23

LEVER, RR. BRAKE

53180-HA8-770

$26.97

24

CAP, REVERSE PIN

53187-VM6-000

$3.71

25

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

26

LEVER, PARKING BRAKE LOCK This part replaces 53192-HA8-770.

53192-HA8-771

$10.56

26

LEVER, PARKING LOCK

53192-HA8-771

$10.56

27

CAP, PARKING LEVER

53193-HA0-770

$5.87

28

BOLT, WIRE ADJUSTING

53193-968-000

Unavailable

29

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.80

30

BOLT, HANDLE LEVER PIVOT

90114-HA6-000

Unavailable

31

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.90

32

NUT, FIXING

90321-315-670

$6.97

32

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.97

33

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

34

WASHER (9X20)

90504-HA0-000

$2.10

35

CLIP, CHOKE CABLE

90651-HA0-680

$4.13

36

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

36

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

37

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

38

SCREW, PAN (4X16)

93500-04016-0G

$0.82

39

SCREW, PAN (5X18)

93500-05018-0G

$0.43

40

SCREW, PAN (5X22)

93500-05022-0G

$0.85

41

NUT, HEX. (6MM)

94001-06070-0S

$1.31

42

NUT, HEX. (6MM)

94002-06000-0S

$1.31

43

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.79

43

BOLT, FLANGE (6X25)

95701-06025-07

$1.79
