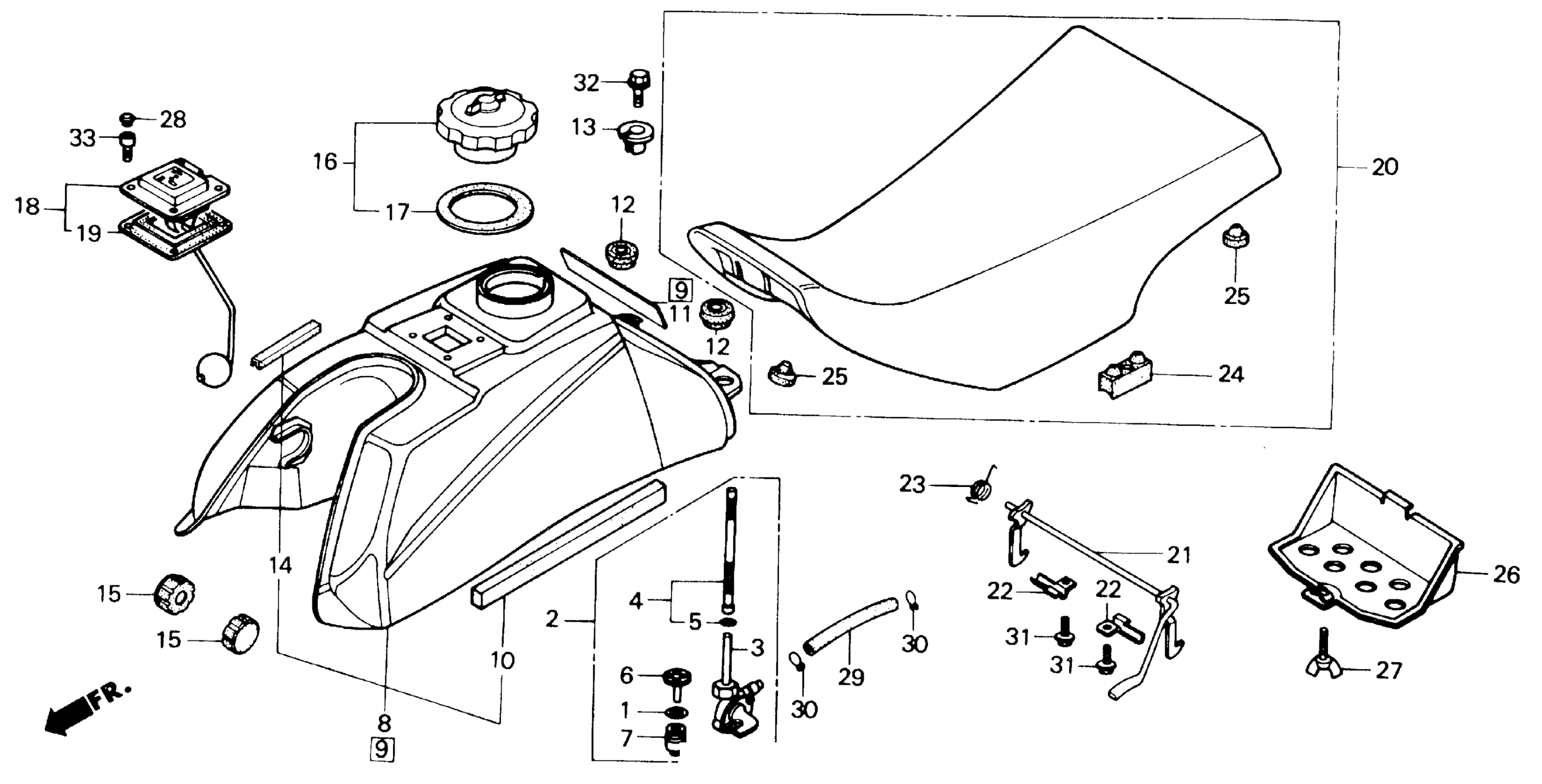

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

2

PETCOCK ASSY. This part replaces 16950-HA8-005.

16950-MY6-791

$90.39

2

PETCOCK ASSY. This part replaces 16950-HC4-670.

16950-MY6-791

$90.39

2

PETCOCK ASSY. This part replaces 16950-MY6-670.

16950-MY6-791

$90.39

2

PETCOCK ASSY.

16950-MY6-791

$90.39

3

BODY, PETCOCK (NOT AVAILABLE)

16951-HA8-005

Unavailable

4

SCREEN SET, FUEL STRAINER

16952-HA8-005

$48.23

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

6

FILTER, CUP

16959-471-831

$9.35

7

CUP, FUEL STRAINER

16967-MA2-771

$25.08

9

TANK, FUEL (NOT AVAILABLE)

17510-HA8-680

Unavailable

10

RUBBER, TANK SPACER

17511-HA8-300

Unavailable

11

SEAT, PROTECTION (NOT AVAILABLE)

17512-VM6-003

Unavailable

12

RUBBER, TANK SETTING

17513-965-010

Unavailable

13

COLLAR, TANK SETTING (NOT AVAILABLE)

17514-HA8-000

Unavailable

14

RUBBER, TANK COVER STAY (NOT AVAILABLE)

17616-VM5-010

Unavailable

15

RUBBER, FR. TANK

17611-437-000

$6.63

16

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

16

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HA0-771.

17620-HC3-505

Unavailable

17

GASKET, FUEL FILLER CAP

17632-435-730

$9.46

18

METER ASSY., FUEL (NOT AVAILABLE)

17800-HA8-003

Unavailable

19

GASKET A (NOT AVAILABLE)

17803-HA8-003

Unavailable

20

SEAT (NOT AVAILABLE) This part replaces 77100-HA8-680.

77100-HA8-000

Unavailable

21

LEVER, SEAT LOCK

77105-HA8-000

Unavailable

22

BRACKET, LOCK LEVER

77106-958-000

Unavailable

23

SPRING, SEAT LOCK

77107-958-000

$4.30

24

RUBBER, SEAT SETTING

77204-292-000

$9.11

25

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

26

HOLDER, TOOL

83501-HA8-000

Unavailable

27

BOLT, WING This part replaces 90105-958-680.

90105-958-405

Unavailable

28

CAP, SOCKET BOLT

91456-MA2-770

Unavailable

29

BULK HOSE, FUEL (7.5X8000) (7.3X170)

95001-75008-60M

$103.82

30

CLIP, TUBE (B12)

95002-02120

$2.00

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

31

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

32

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

32

BOLT, FLANGE (6X22) This part replaces 95900-06022-08.

95701-06022-08

$1.72

33

BOLT, SOCKET (6X10)

96600-06010-17

Unavailable
